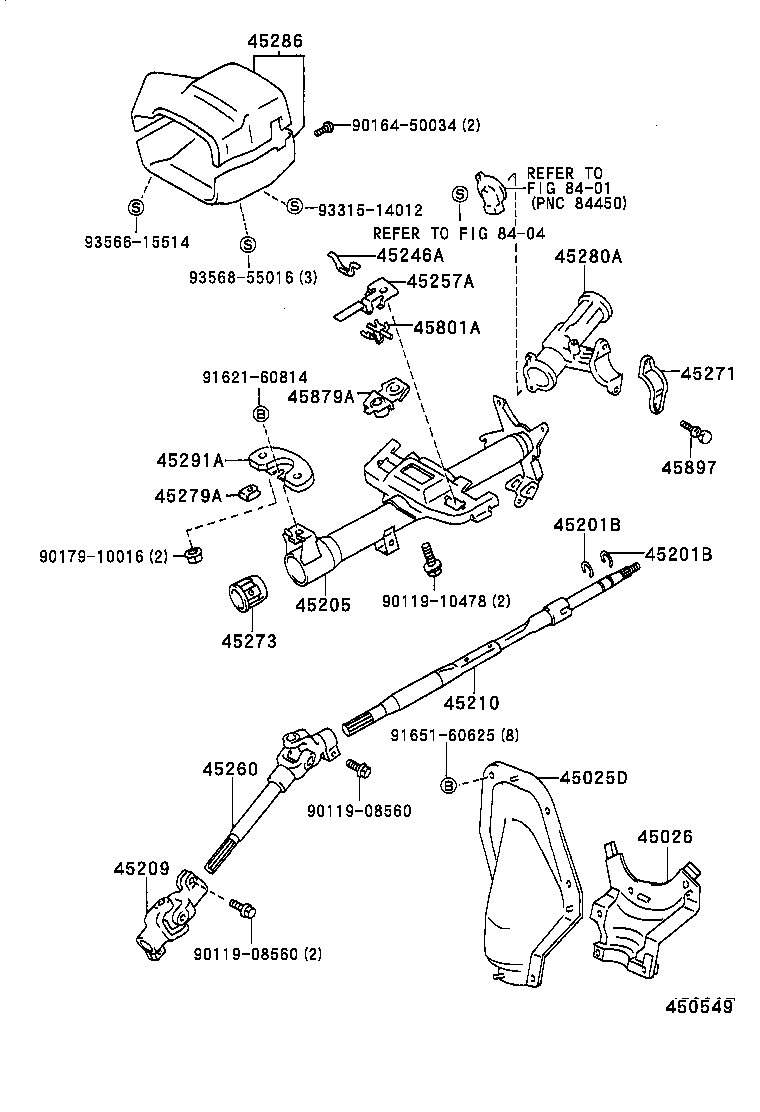

EE110L-ALMDSV (1997)
Toyota Corolla Lb
(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12201 |
AE112,EE110..GCC W(POWER STEERING) |
1 | ||
| 45025-12190 |
EE110..GCC |
1 | ||
| 45025-12190 |
EE110..GCC |
1 | ||
| 45025-12201 |
AE11#,EE110..LHD W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12030 |
EE110..GCC |
1 | ||
| 45026-12030 |
EE110..GCC |
1 | ||
| 45026-12040 |
AE112,EE110..GCC W(POWER STEERING) |
1 | ||
| 45026-12040 |
AE11#,EE110..LHD W(POWER STEERING) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE11#,EE110 T=1.20,LOWER |
1 | ||
| 90520-17269 |
AE11#,EE110 T=1.20,UPPER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE11#,EE110 T=1.20,LOWER |
1 | ||
| 90520-17269 |
AE11#,EE110 T=1.20,UPPER |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-12350 |
AE112,EE110..GCC |
1 | ||
| 45205-12350 |
AE112,EE110..GCC,GEN |
1 | ||
| 45205-12350 |
AE112..GCC;AE111,EE110..ARL,GCC |
1 | ||
| 45205-12360 |
AE11#,EE110 W(TILT STEERING) |
1 | ||
| 45205-12350 |
AE112..GCC;AE111,EE110..XL,XLI |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-12060 |
EE110 |
1 | ||
| 45209-12080 |
AE11#,EE110 W(TILT STEERING) |
1 | ||
| 45209-12060 |
EE110..GCC |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12480 |
AE11#,EE110 |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-12110 |
AE11#,EE110 |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
AE11#,EE110 |
2 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12440 |
EE110..GCC |
1 | ||
| 45260-12440 |
EE110..GCC |
1 | ||
| 45260-12450 |
AE112,EE110..GCC W(TILT STEERING) |
1 | ||
| 45260-12450 |
AE11#,EE110..LHD W(TILT STEERING) |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
AE11#,EE110 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-38010 |
AE11#,EE110 |
1 | ||
| 45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR | ||||
| 45279-12040 |
AE112..GCC;AE111,EE110..XL,XLI |
1 | ||
| 45279-12040 |
AE112,EE110..GCC,GEN |
1 | ||
| 45279-12040 |
AE112..GCC;AE111,EE110..ARL,GCC |
1 | ||
| 45279-12040 |
AE112,EE110..GCC |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12331 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) W(DOOR LOCK CONTROL) |
1 | ||
| 45280-12331 |
AE11#,EE110 W(DOOR LOCK CONTROL) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-12962B1 |
AE112,EE110..GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 45286-12962B1 |
AE112..GCC;AE111,EE110..XL,XLI DK.CHARCOAL,TRIM1# |
1 | ||
| 45286-12962B1 |
AE112..GCC;AE111,EE110..ARL,GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 45286-12963B1 |
AE11#,EE110..ARL,GCC,GEN W(TILT STEERING),DK.CHARCOAL,TRIM1# |
1 | ||
| 45286-12962B1 |
AE112,EE110..GCC,GEN DK.CHARCOAL,TRIM1# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-50010 |
AE112,EE110..GCC,GEN |
1 | ||
| 45291-50010 |
AE112..GCC;AE111,EE110..ARL,GCC |
1 | ||
| 45291-50010 |
AE112,EE110..GCC |
1 | ||
| 45291-50010 |
AE112..GCC;AE111,EE110..XL,XLI |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
AE11#,EE110 |
2 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-12050 |
AE11#,EE110 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE11#,EE110 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90164-50034 | ||||
| 90179-10016 | ||||
| 91621-60814 | ||||
| 91651-60625 | ||||
| 93315-14012 | ||||
| 93566-15514 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8404 | ||||

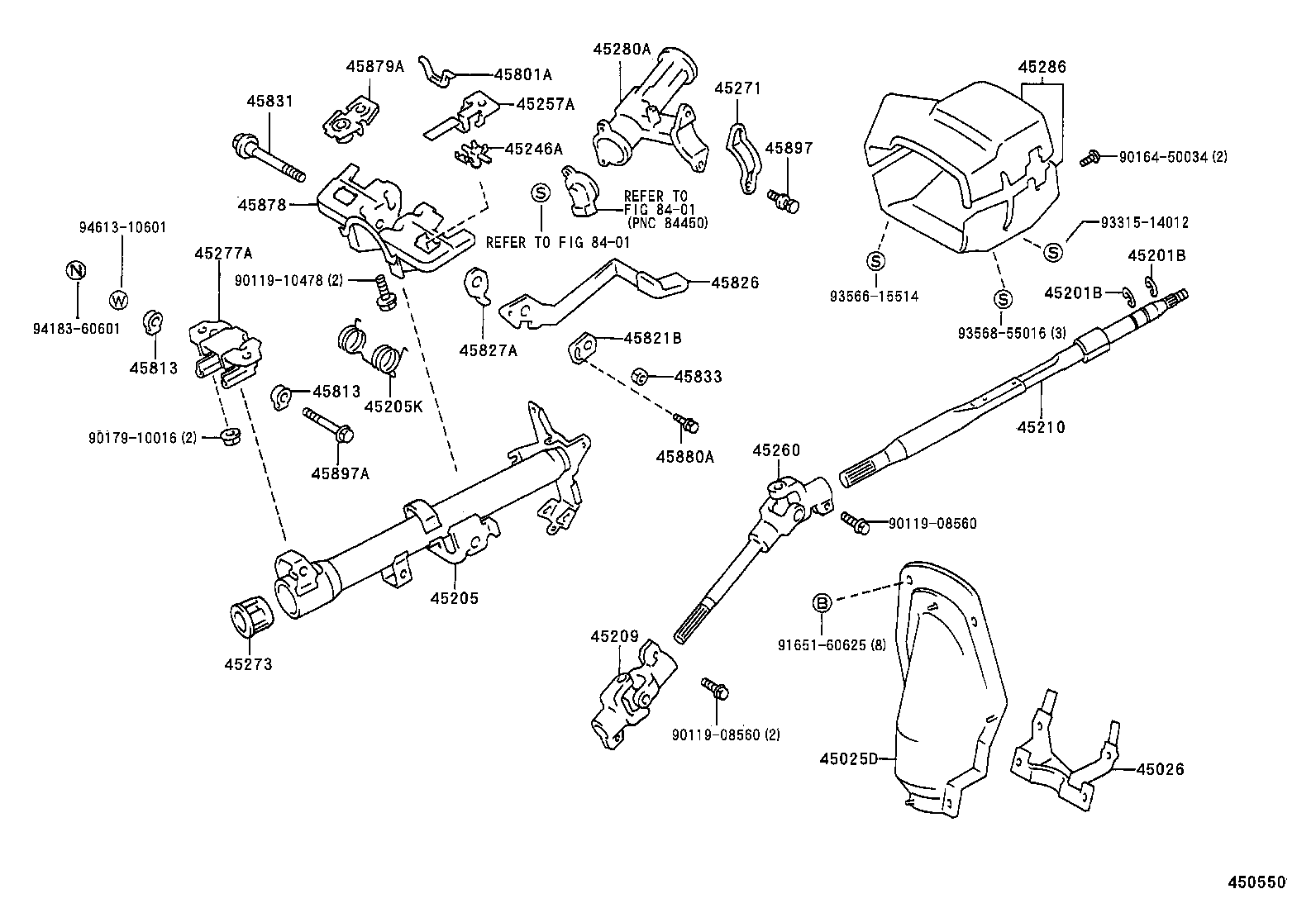

(9704- )
W(TILT STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12201 |
AE112,EE110..GCC W(POWER STEERING) |
1 | ||
| 45025-12190 |
EE110..GCC |
1 | ||
| 45025-12190 |
EE110..GCC |
1 | ||
| 45025-12201 |
AE11#,EE110..LHD W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-12030 |
EE110..GCC |
1 | ||
| 45026-12030 |
EE110..GCC |
1 | ||
| 45026-12040 |
AE112,EE110..GCC W(POWER STEERING) |
1 | ||
| 45026-12040 |
AE11#,EE110..LHD W(POWER STEERING) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE11#,EE110 T=1.20,LOWER |
1 | ||
| 90520-17269 |
AE11#,EE110 T=1.20,UPPER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE11#,EE110 T=1.20,LOWER |
1 | ||
| 90520-17269 |
AE11#,EE110 T=1.20,UPPER |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-12350 |
AE112,EE110..GCC |
1 | ||
| 45205-12350 |
AE112,EE110..GCC,GEN |
1 | ||
| 45205-12350 |
AE112..GCC;AE111,EE110..ARL,GCC |
1 | ||
| 45205-12360 |
AE11#,EE110 W(TILT STEERING) |
1 | ||
| 45205-12350 |
AE112..GCC;AE111,EE110..XL,XLI |
1 | ||
| 45205K - SPRING(FOR STEERING COLUMN TUBE) | ||||
| 90949-03027 |
AE11#,EE110 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-12060 |
EE110 |
1 | ||
| 45209-12080 |
AE11#,EE110 W(TILT STEERING) |
1 | ||
| 45209-12060 |
EE110..GCC |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12480 |
AE11#,EE110 |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-12110 |
AE11#,EE110 |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-12070 |
AE11#,EE110 |
2 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12440 |
EE110..GCC |
1 | ||
| 45260-12440 |
EE110..GCC |
1 | ||
| 45260-12450 |
AE112,EE110..GCC W(TILT STEERING) |
1 | ||
| 45260-12450 |
AE11#,EE110..LHD W(TILT STEERING) |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
AE11#,EE110 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-38010 |
AE11#,EE110 |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-12010 |
AE11#,EE110 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12331 |
AE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN) W(DOOR LOCK CONTROL) |
1 | ||
| 45280-12331 |
AE11#,EE110 W(DOOR LOCK CONTROL) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-12962B1 |
AE112,EE110..GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 45286-12962B1 |
AE112..GCC;AE111,EE110..XL,XLI DK.CHARCOAL,TRIM1# |
1 | ||
| 45286-12962B1 |
AE112..GCC;AE111,EE110..ARL,GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 45286-12963B1 |
AE11#,EE110..ARL,GCC,GEN W(TILT STEERING),DK.CHARCOAL,TRIM1# |
1 | ||
| 45286-12962B1 |
AE112,EE110..GCC,GEN DK.CHARCOAL,TRIM1# |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
AE11#,EE110 |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-12010 |
AE11#,EE110 OD=14 |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-12010 |
AE11#,EE110 OD=14 |
2 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-12010 |
AE11#,EE110 |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-12040 |
AE11#,EE110 |
1 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-12030 |
AE11#,EE110 |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-12020 |
AE11#,EE110 |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-12010 |
AE11#,EE110 |
1 | ||
| 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT | ||||
| 45878-12220 |
AE11#,EE110 |
1 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-12050 |
AE11#,EE110 |
2 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 45832-12010 |
AE11#,EE110 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AE11#,EE110 |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-12040 |
AE11#,EE110 |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90164-50034 | ||||
| 90179-10016 | ||||
| 91651-60625 | ||||
| 93315-14012 | ||||
| 93566-15514 | ||||
| 93568-55016 | ||||
| 94183-60601 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 8401 | ||||
