AE112R-GLPNKZ (1997)

Toyota Corolla Lb

Production Oct 1997 - Oct 1998
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-9810)NZ

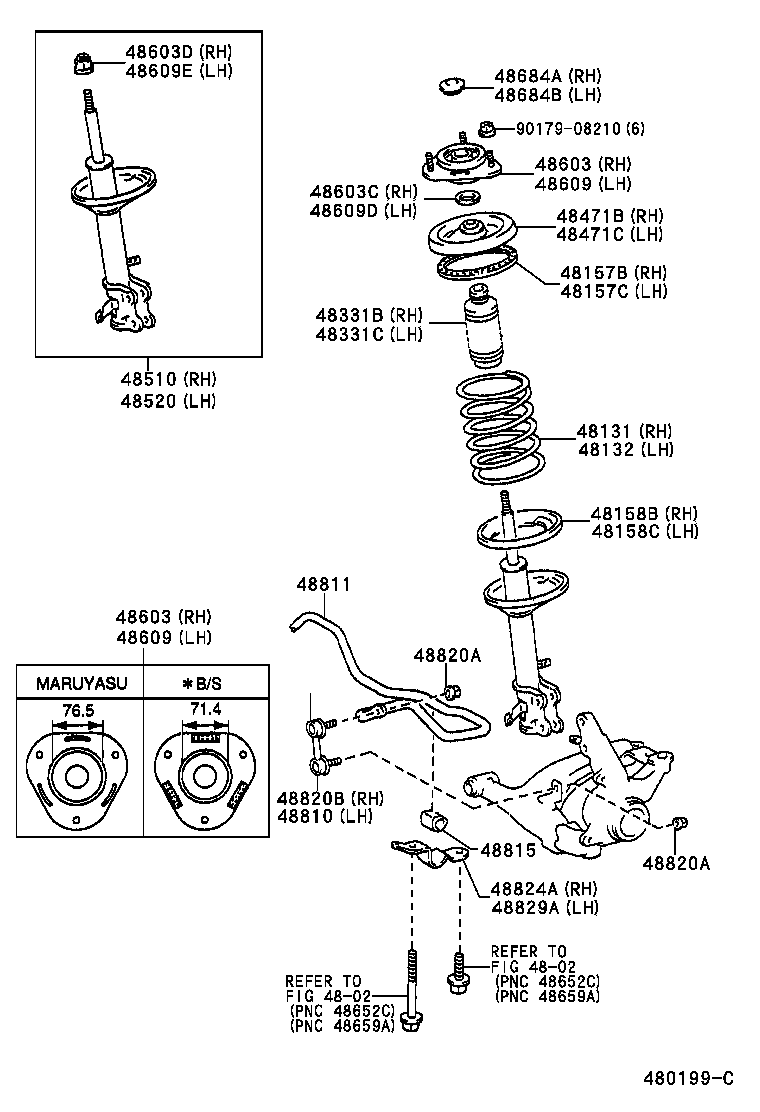

Click highlighted areas on diagram

diagram 4802 4802 48131 48132 48157B 48157C 48158B 48158C 48331B 48331C 48471B 48471C 48510 48520 48603 48603C 48603D 48609 48609D 48609E 48684A 48684B 48810 48811 48815 48820A 48820A 48820B 48824A 48829A 9017908210
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-1L690

AE11#..4FC..NZ

 1
48132 - SPRING, FRONT COIL, LH
48131-1L690

AE11#..4FC..NZ

 1
48811 - BAR, STABILIZER, FRONT
48811-12720

AE11#..NZ

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-12220

AE11#..NZ

 2
Common parts
90179-08210
Linked diagrams
4802
