AE112R-ALMNKQ (1998)
Toyota Corolla Lb
(9808- )ARL

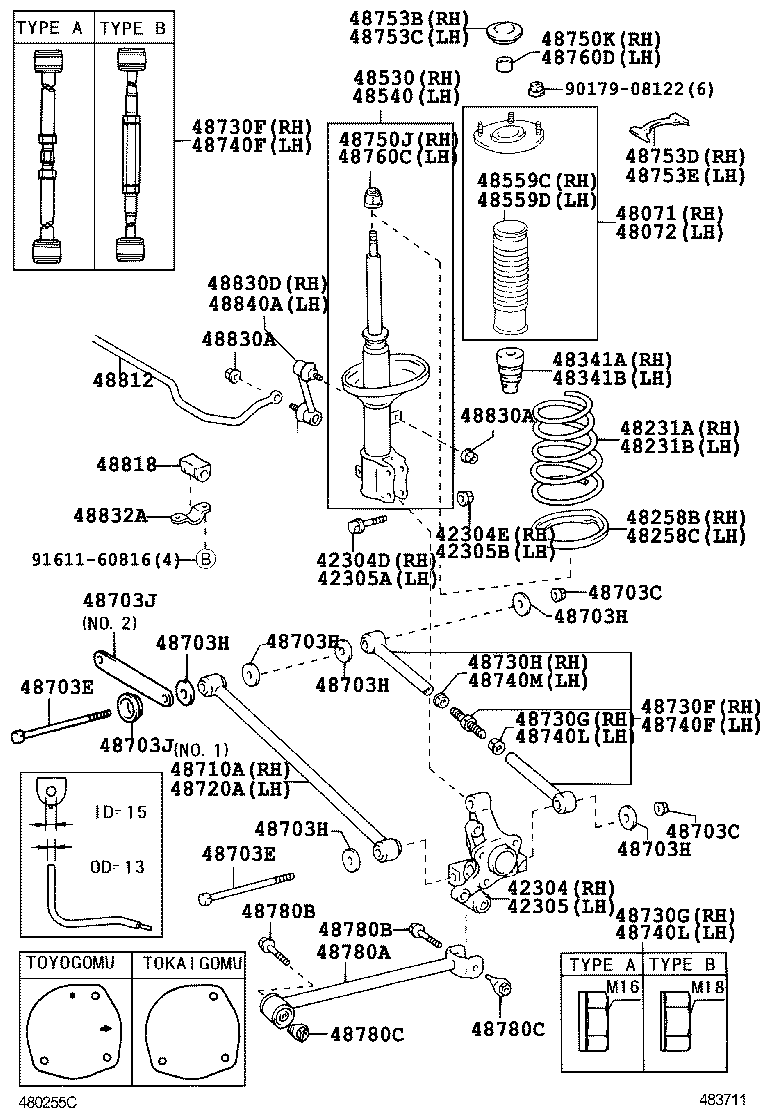

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-12140 |
AE112..ARL W(REAR DISC BRAKE) |
1 | ||
| 42304-12140 |
AE112..ARL W(REAR DISC BRAKE) |
1 | ||
| 42304-12130 |
AE11#,EE110 |
1 | ||
| 42304-12130 |
AE112..ARL |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-12130 |
AE112..ARL |
1 | ||
| 42305-12130 |
AE11#,EE110 |
1 | ||
| 42305-12140 |
AE112..ARL W(REAR DISC BRAKE) |
1 | ||
| 42305-12140 |
AE112..ARL W(REAR DISC BRAKE) |
1 | ||
| 48071 - SUPPORT SUB-ASSY, REAR SUSPENSION, RH | ||||
| 48071-12140 |
AE11#..ARL |
1 | ||
| 48072 - SUPPORT SUB-ASSY, REAR SUSPENSION, LH | ||||
| 48072-12140 |
AE11#..ARL |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-1H460 |
AE11#..ARL |
1 | ||
| 48231-1H460 |
AE11#..ARL |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-1H460 |
AE11#..ARL |
1 | ||
| 48231-1H460 |
AE11#..ARL |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-12130 |
AE11#..ARL |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-12130 |
AE11#..ARL |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80016 |
AE11#..ARL |
1 | ||
| 48530-80016 |
AE11#..ARL |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-19295 |
AE11#..ARL |
1 | ||
| 48540-19295 |
AE11#..ARL |
1 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE11#..ARL |
8 | ||
| 90201-14035 |
AE11#..ARL |
8 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE11#..ARL |
8 | ||
| 90201-14035 |
AE11#..ARL |
8 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE11#..ARL |
8 | ||
| 90201-14035 |
AE11#..ARL |
8 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE11#..ARL |
8 | ||
| 90201-14035 |
AE11#..ARL |
8 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE11#..ARL |
8 | ||
| 90201-14035 |
AE11#..ARL |
8 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14035 |
AE11#..ARL |
8 | ||
| 90201-14035 |
AE11#..ARL |
8 | ||
| 48703J - WASHER, NO.2(FOR REAR SUSPENSION ARM) | ||||
| 48715-12010 |
AE11#..ARL NO.2 |
2 | ||
| 90209-15002 |
AE11#..ARL NO.1 |
2 | ||
| 90209-15002 |
AE11#..ARL NO.1 |
2 | ||
| 48715-12010 |
AE11#..ARL NO.2 |
2 | ||
| 48703J - WASHER, NO.2(FOR REAR SUSPENSION ARM) | ||||
| 48715-12010 |
AE11#..ARL NO.2 |
2 | ||
| 90209-15002 |
AE11#..ARL NO.1 |
2 | ||
| 90209-15002 |
AE11#..ARL NO.1 |
2 | ||
| 48715-12010 |
AE11#..ARL NO.2 |
2 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-12160 |
AE11#..ARL |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-12160 |
AE11#..ARL |
1 | ||
| 48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90179-18016 |
AE11#..ARL |
1 | ||
| 48730G - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90179-18016 |
AE11#..ARL |
1 | ||
| 48730H - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH) | ||||
| 90179-18017 |
AE11#..ARL |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-12160 |
AE11#..ARL |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-12160 |
AE11#..ARL |
1 | ||
| 48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90179-18016 |
AE11#..ARL |
1 | ||
| 48740L - NUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90179-18016 |
AE11#..ARL |
1 | ||
| 48740M - NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH) | ||||
| 90179-18017 |
AE11#..ARL |
1 | ||
| 48753D - COVER, REAR SUSPENSION SUPOPORT, NO.2 RH | ||||
| 48753-12080 |
AE11#..ARL |
1 | ||
| 48753E - COVER, REAR SUSPENSION SUPOPORT, NO.2 LH | ||||
| 48753-12080 |
AE11#..ARL |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-12190 |
AE11#..ARL NEW ZEALAND SPEC |
1 | ||
| 48812-12200 |
AE11#..ARL |
1 | ||
| 48812-12200 |
AE11#..ARL |
1 | ||
| 48812-12190 |
AE111..ARL;AE112..GLI..ARL NEW ZEALAND SPEC |
1 | ||
| 48812-12190 |
AE111..ARL;AE112..GLI..ARL NEW ZEALAND SPEC |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-12170 |
AE111..ARL;AE112..GLI..ARL NEW ZEALAND SPEC |
2 | ||
| 48818-12180 |
AE11#..ARL |
2 | ||
| 48818-12170 |
AE111..ARL;AE112..GLI..ARL NEW ZEALAND SPEC |
2 | ||
| 48818-12180 |
AE11#..ARL |
2 | ||
| 48818-12170 |
AE11#..ARL NEW ZEALAND SPEC |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-20010 |
AE11#..ARL NEW ZEALAND SPEC |
1 | ||
| 48830-20010 |
AE11#..ARL NEW ZEALAND SPEC |
1 | ||
| 48830-12060 |
AE11#,EE110 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-20010 |
AE11#..ARL NEW ZEALAND SPEC |
1 | ||
| 48830-12060 |
AE11#,EE110 |
1 | ||
| 48830-20010 |
AE11#..ARL NEW ZEALAND SPEC |
1 | ||
| Common parts | ||||
| 90179-08122 | ||||
| 91611-60816 | ||||
