AE112R-ALMNKQ (1998)
Toyota Corolla Lb

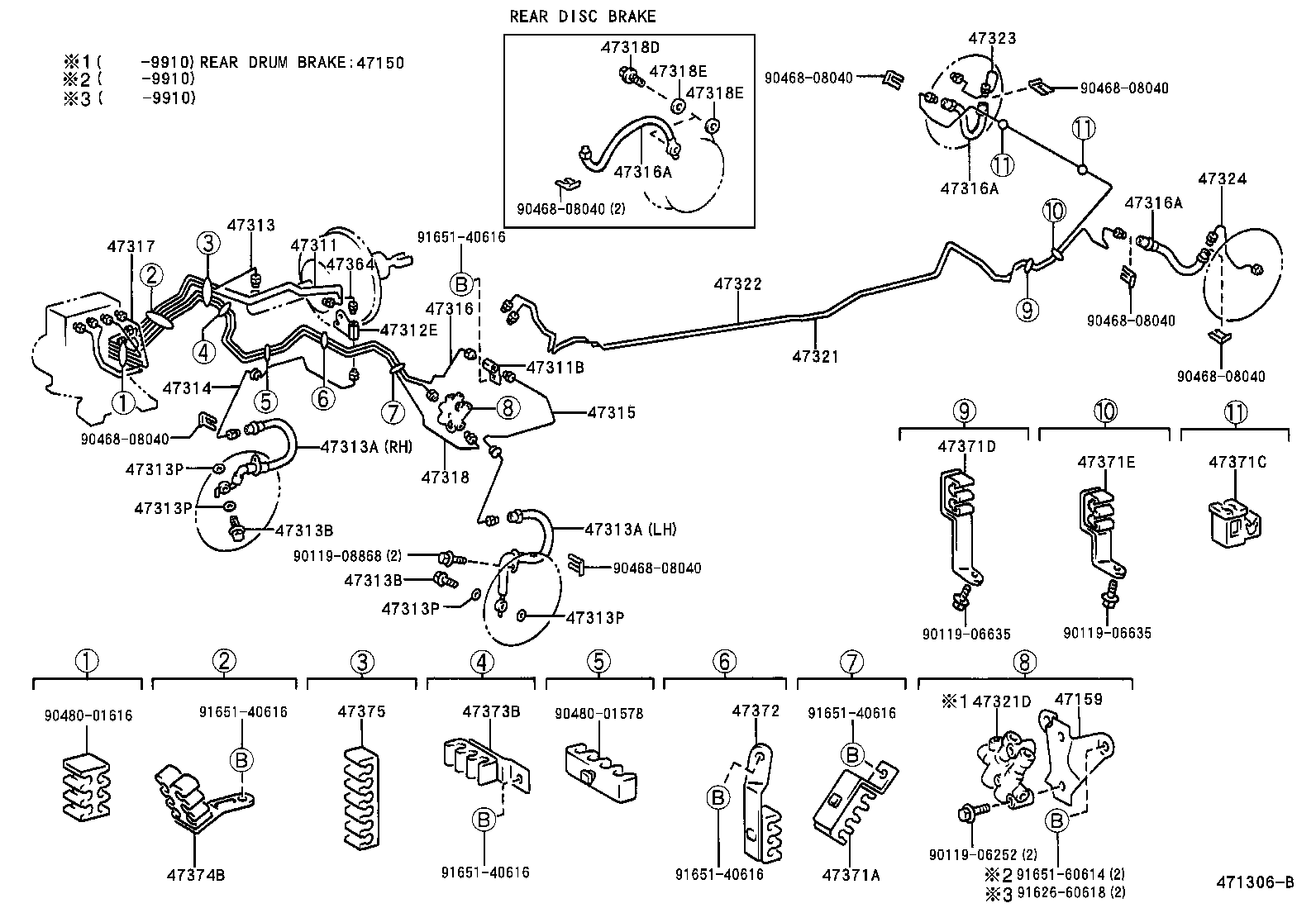

ILLUST NO. 1 OF 2(9808- )ARL
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12230 |
AE11#..ARL |
1 | ||
| 47150-12230 |
AE11#..ARL |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12620 |
AE11#..ARL W(ABS) |
1 | ||
| 47311-12620 |
AE11#..ARL W(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-12010 |
AE11#..ARL |
1 | ||
| 47391-12010 |
AE11#..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12430 |
AE11#..ARL W(ABS) |
1 | ||
| 47313-12430 |
AE11#..ARL W(ABS) |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
EE110..GCC;AE11#..GLI,GT,XLI |
2 | ||
| 90401-10058 |
AE11#,EE110 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
EE110..GCC;AE11#..GLI,GT,XLI |
2 | ||
| 90401-10058 |
AE11#,EE110 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
EE110..GCC;AE11#..GLI,GT,XLI |
2 | ||
| 47389-50020 |
AE11#,EE110 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
EE110..GCC;AE11#..GLI,GT,XLI |
2 | ||
| 47389-50020 |
AE11#,EE110 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
EE110..GCC;AE11#..GLI,GT,XLI |
2 | ||
| 47389-50020 |
AE11#,EE110 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
EE110..GCC;AE11#..GLI,GT,XLI |
2 | ||
| 47389-50020 |
AE11#,EE110 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12500 |
AE11#..RHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-12320 |
AE11#..ARL |
1 | ||
| 47316-12320 |
AE11#..ARL |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02922 |
AE112..ARL |
2 | ||
| 90947-02921 |
AE11#,EE110 |
2 | ||
| 90947-02C41 |
AE112..ARL W(REAR DISC BRAKE) |
2 | ||
| 90947-02922 |
AE112..ARL |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02922 |
AE112..ARL |
2 | ||
| 90947-02921 |
AE11#,EE110 |
2 | ||
| 90947-02C41 |
AE112..ARL W(REAR DISC BRAKE) |
2 | ||
| 90947-02922 |
AE112..ARL |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02922 |
AE112..ARL |
2 | ||
| 90947-02921 |
AE11#,EE110 |
2 | ||
| 90947-02C41 |
AE112..ARL W(REAR DISC BRAKE) |
2 | ||
| 90947-02922 |
AE112..ARL |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12170 |
AE11#..ARL |
1 | ||
| 47317-12170 |
AE11#..ARL |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12310 |
AE11#..ARL |
1 | ||
| 47318-12310 |
AE11#..ARL |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE112..ARL |
2 | ||
| 90401-10015 |
AE112..ARL |
2 | ||
| 90401-10058 |
AE112..ARL |
2 | ||
| 90401-10058 |
AE112..ARL |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE112..ARL |
4 | ||
| 90430-10074 |
AE112..ARL |
4 | ||
| 47389-50020 |
AE112..ARL |
2 | ||
| 47389-50020 |
AE112..ARL |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE112..ARL |
4 | ||
| 90430-10074 |
AE112..ARL |
4 | ||
| 47389-50020 |
AE112..ARL |
2 | ||
| 47389-50020 |
AE112..ARL |
2 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
AE11#..ARL |
1 | ||
| 90412-10140 |
AE112..ARL |
1 | ||
| 90412-10140 |
AE112..ARL |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12250 |
AE11#,EE110 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12210 |
AE11#,EE110 |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-12160 |
AE11#..ARL |
1 | ||
| 47364-12160 |
AE11#..ARL |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01B45 |
EE110..GCC;AE11#..GLI,GT,XLI |
2 | ||
| 90949-01B45 |
AE11#,EE110 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47374-12030 |
AE11# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47373-12010 |
AE11#..RHD |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 90480-01578 | ||||
| 90480-01616 | ||||
| 91626-60618 | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||
ILLUST NO. 2 OF 2(9808- )ARL
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-12140 |
AE11#..ARL |
1 | ||
| 44050-12060 |
AE112..ARL |
1 | ||
| 44050-12060 |
AE112..ARL |
1 | ||
| 44050-12090 |
AE11#..ARL |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
AE11#..ARL |
3 | ||
| 44546-12100 |
AE11#..ARL |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-12030 |
AE11#..ARL |
1 | ||
| 44590-12040 |
AE11#..ARL |
1 | ||
| 44590-12030 |
AE11#..ARL |
1 | ||
| 44590-12040 |
AE11#..ARL |
1 | ||
| Common parts | ||||
| 90119-06873 | ||||
| 90119-08C24 | ||||
| 90179-08189 | ||||
| 90387-06071 | ||||
