AE112R-ALMDKQ (1998)

Toyota Corolla Lb

Production Aug 1998 - Sep 2001
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

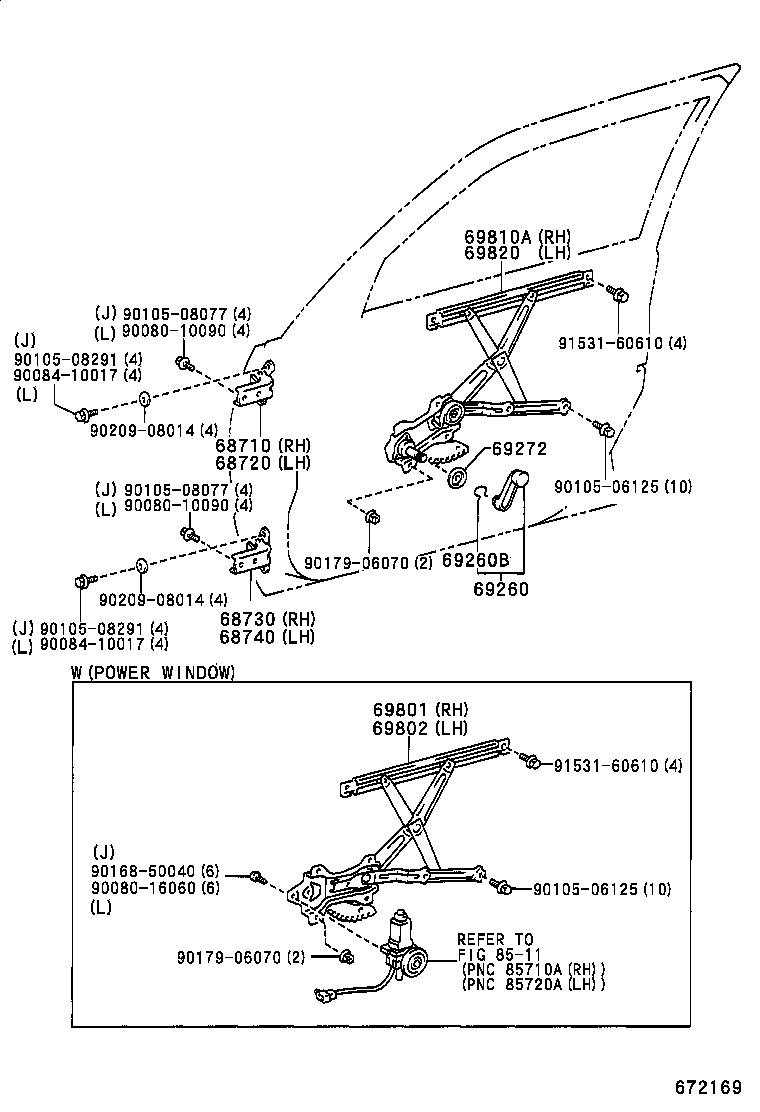

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69802 69810A 69820 8511 9008010090 9008010090 9008016060 9008410017 9008410017 9010506125 9010506125 9010508077 9010508077 9010508291 9010508291 9016850040 9017906070 9017906070 9020908014 9020908014 9153160610 9153160610
Part # Description Qty Price
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-22030B2

AE11#,EE110..XL,XLI

MD.CHARCOAL,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

AE11#,EE110..XL,XLI

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-20020

AE11#,EE110..XL,XLI

 2
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-12560

AE11#,EE110..XL,XLI

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-12560

AE11#,EE110..XL,XLI

 1
Common parts
90080-10090
90080-16060
90084-10017
90105-06125
90105-08077
90105-08291
90168-50040
90179-06070
90209-08014
91531-60610
Linked diagrams
8511
