AE112L-ALPDKV (1997)
Toyota Corolla Lb
Production
Apr 1997
-
Aug 2000
Engine
7AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

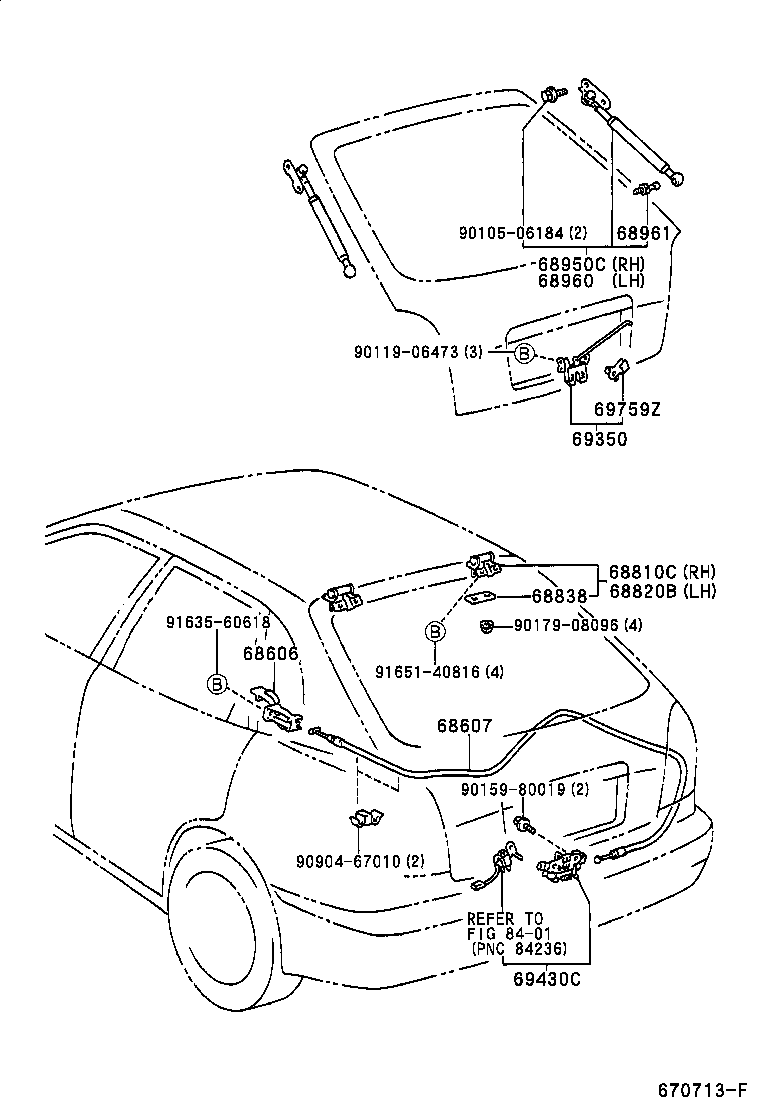

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN | ||||
| 64606-20091 |
AE11#,EE110..LHD |
1 | ||
| 64606-20091 |
AE112,EE110..GCC |
1 | ||
| 68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL | ||||
| 64607-12750 |
AE112,EE110..GCC |
1 | ||
| 64607-12750 |
AE11#,EE110..LHD |
1 | ||
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68801-12100 |
AE11#,EE110 |
1 | ||
| 68820B - HINGE ASSY, BACK DOOR, LH | ||||
| 68801-12100 |
AE11#,EE110 |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-20060 |
AE11#,EE110 |
2 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-80054 |
AE111..GL,XLI;AE111..GLI..GEN;AE112,EE110..ARL,GCC,GEN |
1 | ||
| 68950-80055 |
AE111..ARL;AE112,EE110;AE111..GL,GLI W(REAR SPOILER) |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-19675 |
AE111..GL,XLI;AE111..GLI..GEN;AE112,EE110..ARL,GCC,GEN |
1 | ||
| 68960-19685 |
AE111..ARL;AE112,EE110;AE111..GL,GLI W(REAR SPOILER) |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-12050 |
AE11#,EE110 |
2 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-12200 |
AE11#,EE110 |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-12320 |
AE11#,EE110 |
1 | ||
| 69759Z - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20040 |
AE11#,EE110 |
1 | ||
| Common parts | ||||
| 90105-06184 | ||||
| 90119-06473 | ||||
| 90159-80019 | ||||
| 90179-08096 | ||||
| 90904-67010 | ||||
| 91635-60618 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
