AE112L-ALMDKV (1997)

Toyota Corolla Lb

Production Apr 1997 - Aug 2000
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9910)

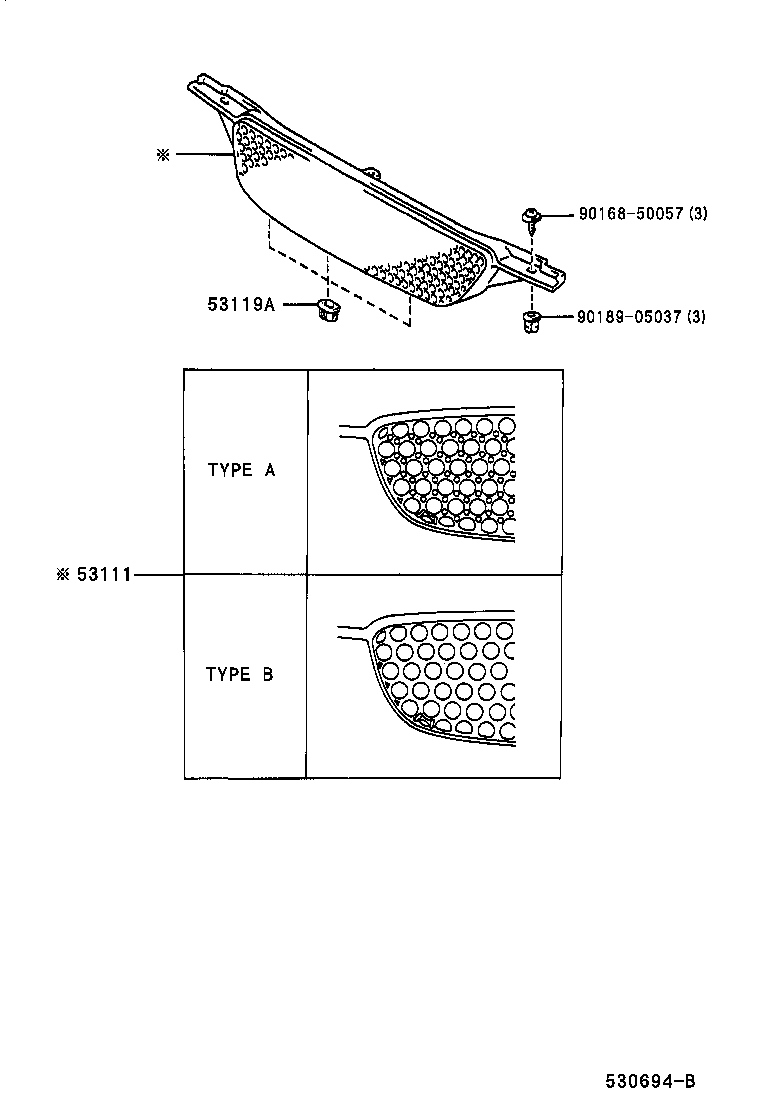

Click highlighted areas on diagram

diagram 53111 53119A 9016850057 9018905037
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-1A300

AE112,EE110..GCC

TYPE A:REFER TO ILLUSTRATION

 1
53111-1A300

AE11#,EE110..ARL,GCC

TYPE A:REFER TO ILLUSTRATION

 1
53111-1A300

AE112,EE110;AE111..GL,XLI;AE111..GLI..NZ

TYPE A:REFER TO ILLUSTRATION

 1
53111-1A311

AE112,EE110..GCC;AE11#..(GL,GLI)..(ARL,GEN)

TYPE B:REFER TO ILLUSTRATION

 1
53111-1A300

EE110;AE11#..GCC,NZ

TYPE A:REFER TO ILLUSTRATION

 1
53111-1A311

AE11#..(GLI,XLI)..(GCC,GEN);AE112,EE110..(GLI,XL)..(ARL,GCC)

TYPE B:REFER TO ILLUSTRATION

 1
53119A - CUSHION, RADIATOR GRILLE TO FRONT VALANCE PANEL
53119-12110

AE11#,EE110

 3
Common parts
90168-50057
90189-05037

(9910- )

Click highlighted areas on diagram

diagram 53111 53111 53119A 53119A 9016850057 9016850057 9018905037 9018905037
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-1A300

AE112,EE110..GCC

TYPE A:REFER TO ILLUSTRATION

 1
53111-1A300

AE11#,EE110..ARL,GCC

TYPE A:REFER TO ILLUSTRATION

 1
53111-1A300

AE112,EE110;AE111..GL,XLI;AE111..GLI..NZ

TYPE A:REFER TO ILLUSTRATION

 1
53111-1A311

AE112,EE110..GCC;AE11#..(GL,GLI)..(ARL,GEN)

TYPE B:REFER TO ILLUSTRATION

 1
53111-1A300

EE110;AE11#..GCC,NZ

TYPE A:REFER TO ILLUSTRATION

 1
53111-1A311

AE11#..(GLI,XLI)..(GCC,GEN);AE112,EE110..(GLI,XL)..(ARL,GCC)

TYPE B:REFER TO ILLUSTRATION

 1
53111 - GRILLE, RADIATOR
53111-1A300

AE112,EE110..GCC

TYPE A:REFER TO ILLUSTRATION

 1
53111-1A300

AE11#,EE110..ARL,GCC

TYPE A:REFER TO ILLUSTRATION

 1
53111-1A300

AE112,EE110;AE111..GL,XLI;AE111..GLI..NZ

TYPE A:REFER TO ILLUSTRATION

 1
53111-1A311

AE112,EE110..GCC;AE11#..(GL,GLI)..(ARL,GEN)

TYPE B:REFER TO ILLUSTRATION

 1
53111-1A300

EE110;AE11#..GCC,NZ

TYPE A:REFER TO ILLUSTRATION

 1
53111-1A311

AE11#..(GLI,XLI)..(GCC,GEN);AE112,EE110..(GLI,XL)..(ARL,GCC)

TYPE B:REFER TO ILLUSTRATION

 1
53119A - CUSHION, RADIATOR GRILLE TO FRONT VALANCE PANEL
53119-12110

AE11#,EE110

 3
53119A - CUSHION, RADIATOR GRILLE TO FRONT VALANCE PANEL
53119-12110

AE11#,EE110

 3
Common parts
90168-50057
90189-05037
