AE111R-ALMNK (1997)

Toyota Corolla Lb

Production Apr 1997 - Sep 2001
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )GLI,GT,XLI

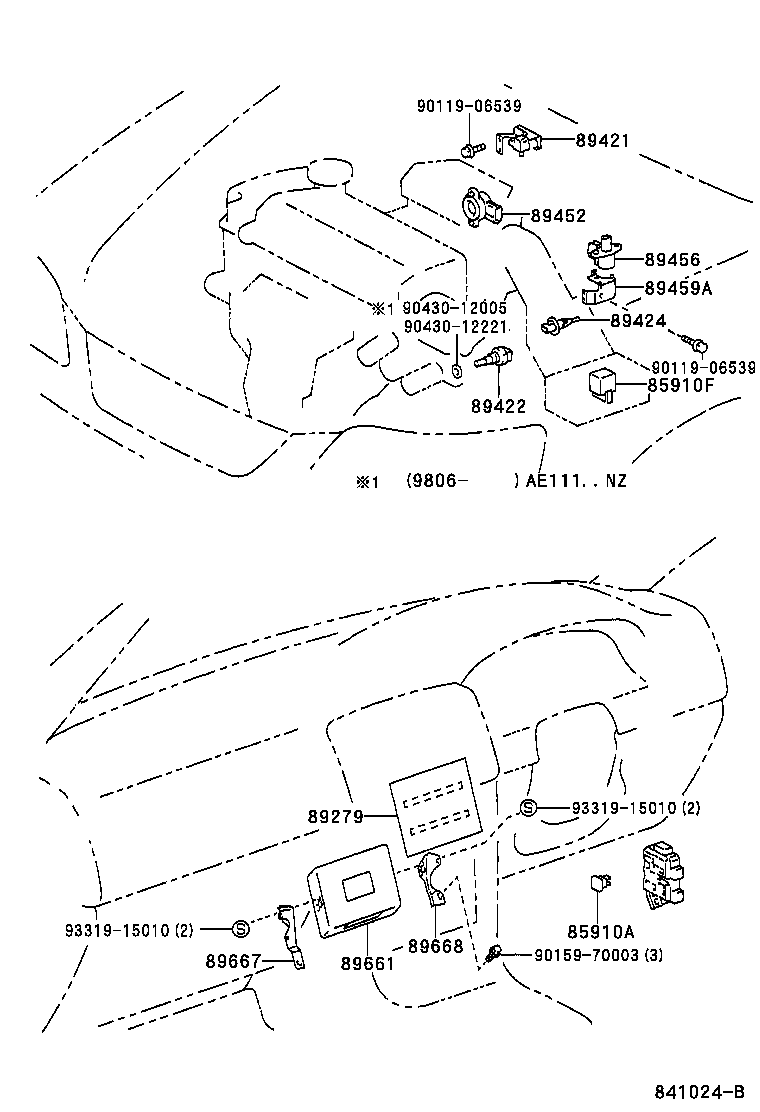

Click highlighted areas on diagram

diagram 85910A 85910F 89279 89421 89422 89424 89452 89456 89459A 89661 89667 89668 9011906539 9011906539 9015970003 9043012005 9043012221 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

AE11#..GLI,XLI

 1
90987-02012

AE11#..GLI,XLI

 1
90080-87008

AE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)

P/N LABEL=9008087008

 1
90987-02012

AE11#..GLI,XLI

P/N LABEL=9098702012

 1
90080-87008

AE11#..GLI,XLI

P/N LABEL=9008087008

 1
90987-02012

AE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)

P/N LABEL=9098702012

 1
85910F - RELAY, COMPUTER (FOR EFI)
90080-87008

AE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)

P/N LABEL=9008087008

 1
90987-02012

AE11#..GLI,XLI

 1
90080-87008

AE11#..GLI,XLI

P/N LABEL=9008087008

 1
90987-02012

AE11#..GLI,XLI

P/N LABEL=9098702012

 1
90987-02012

AE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)

P/N LABEL=9098702012

 1
90987-02012

AE11#..GLI,XLI

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-13020

AE11#..GLI,XLI

 1
89279-13020

AE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-12190

AE11#..RHD..(ARL,GEN)

P/N LABEL=8942012190

 1
89420-12190

AE111..GLI..GEN

P/N LABEL=8942012190

 1
89420-12070

AE11#..RHD..(ARL,GEN)

P/N LABEL=8942012070

 1
89420-02020

AE11#..RHD

P/N LABEL=8942002020

 1
89420-12070

AE11#..RHD

P/N LABEL=8942012070

 1
89420-12190

AE111..RHD;AE112..ARL

P/N LABEL=8942012190

 1
89420-02020

AE11#..RHD..(ARL,GEN)

P/N LABEL=8942002020

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

AE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)

 1
89422-35010

AE11#..GLI,XLI

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

AE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)

 1
89424-12010

AE11#..GLI,XLI

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-33030

AE111..RHD

 1
89452-33030

AE111..RHD..(ARL,GEN)

 1
89456 - RESISTOR, VARIABLE
89456-30010

AE11#..(GLI,XLI)..(GCC,GEN)

 1
89456-30010

AE11#..(GLI,XLI)..(GCC,GEN)

 1
89459A - BRACKET, VARIABLE RESISTOR
89459-12020

AE111..GLI..GEN

 1
89459-12020

AE111..GLI..GEN

 1
89661 - COMPUTER, ENGINE CONTROL
89661-1A810

AE111..GLI..GEN

SINGAPORE SPEC

 1
89661-1A810

AE111..GLI..GEN

SINGAPORE SPEC

 1
89661-1A810

AE111..5F..GLI..GEN

SINGAPORE SPEC

 1
89661-1A810

AE111..5F..GLI..GEN

SINGAPORE SPEC

 1
89661-1A800

AE111..GLI..GEN

 1
89661-1A800

AE111..GLI..GEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12130

AE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)

 1
89667-12130

AE11#..GLI,XLI

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12060

AE11#..(GLI,GT,XLI)..(ARL,GCC,GEN)

 1
89668-12060

AE11#..GLI,XLI

 1
Common parts
90119-06539
90159-70003
90430-12005
90430-12221
93319-15010
