AE111L-ALMNU (1997)
Toyota Corolla Lb

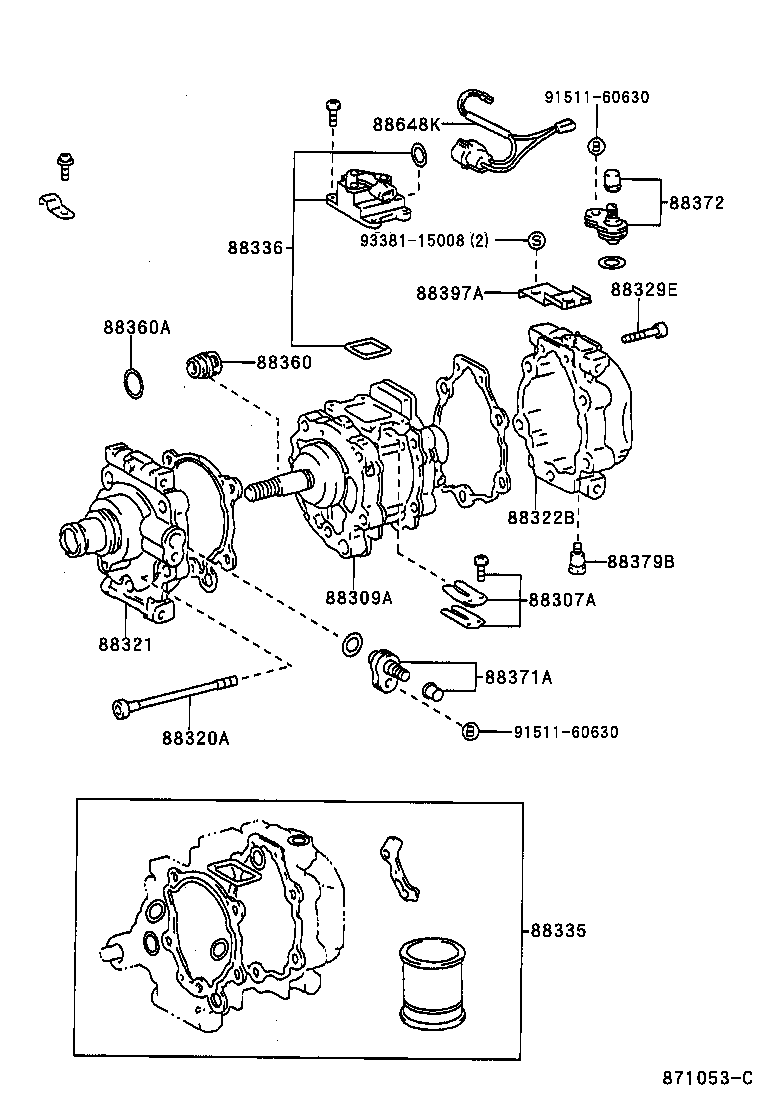

ILLUST NO. 3 OF 3(9704- )AE11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88307A - REED SUB-ASSY, VALVE | ||||
| 88307-12050 |
AE11#,EE110 |
1 | ||
| 88307-12050 |
AE111,EE110;AE112..ARL,GCC |
1 | ||
| 88309A - PUMP SUB-ASSY, COMPRESSOR | ||||
| 88309-12150 |
AE11# |
1 | ||
| 88309-12200 |
AE111,EE110;AE112..ARL,GCC |
1 | ||
| 88309-12200 |
AE11#,EE110 |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-16010 |
AE11#,EE110 |
5 | ||
| 88329-16010 |
AE111,EE110;AE112..ARL,GCC |
5 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-12140 |
AE111,EE110;AE112..ARL,GCC |
1 | ||
| 88321-12140 |
AE11#,EE110 |
1 | ||
| 88322B - CASE, OIL SEPARATOR | ||||
| 88322-12100 |
AE111,EE110;AE112..ARL,GCC |
1 | ||
| 88322-12100 |
AE11#,EE110 |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 88329-16020 |
AE11#,EE110 |
2 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-12110 |
AE111,EE110;AE112..ARL,GCC |
1 | ||
| 88335-12110 |
AE11#,EE110 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-16080 |
AE11# |
1 | ||
| 88336-16080 |
AE111;AE112..ARL,GCC |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-12100 |
AE11#,EE110 |
1 | ||
| 88360-12100 |
AE111,EE110;AE112..ARL,GCC |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
AE11#,EE110 |
1 | ||
| 90096-90022 |
AE111,EE110;AE112..ARL,GCC |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88376-12010 |
AE111,EE110;AE112..ARL,GCC |
1 | ||
| 88376-12010 |
AE11#,EE110 |
1 | ||
| 88372 - VALVE, DISCHARGE | ||||
| 88376-12020 |
AE11#,EE110 |
1 | ||
| 88376-12020 |
AE111,EE110;AE112..ARL,GCC |
1 | ||
| 88379B - VALVE, PRESSURE RELIEF | ||||
| 88379-12050 |
EE110;AE11#..ARL,GEN,NZ |
1 | ||
| 88397A - CLIP, COMPRESSOR | ||||
| 88397-16030 |
AE11#,EE110 |
1 | ||
| 88648K - WIRE SUB-ASSY, SENSOR | ||||
| 88648-12640 |
AE11# |
1 | ||
| Common parts | ||||
| 91511-60630 | ||||
| 93381-15008 | ||||
ILLUST NO. 2 OF 3(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-1A020 |
AE111..GL MIDDLE EAST SPEC |
1 | ||
| 88412-1A040 |
AE11#..ARL,GEN,NZ |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-1A040 |
AE11#,EE110 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-1A440 |
AE11# |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01554 |
AE11#,EE110..(GL,XL,XLI)..(GCC,GEN) T=0.3 |
1 | ||
| 88335-14020 |
AE11#..ARL,GEN,NZ |
1 | ||
| 90099-01555 |
AE11#,EE110..(GL,XL,XLI)..(GCC,GEN) T=0.5 |
1 | ||
| 90099-01553 |
AE11#,EE110..(GL,XL,XLI)..(GCC,GEN) T=0.1 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-1A010 |
AE11#,EE110 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-1A190 |
AE111..GL MIDDLE EAST SPEC |
1 | ||
| 88410-1A050 |
AE11#..ARL,GEN,NZ |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 93319-15008 | ||||

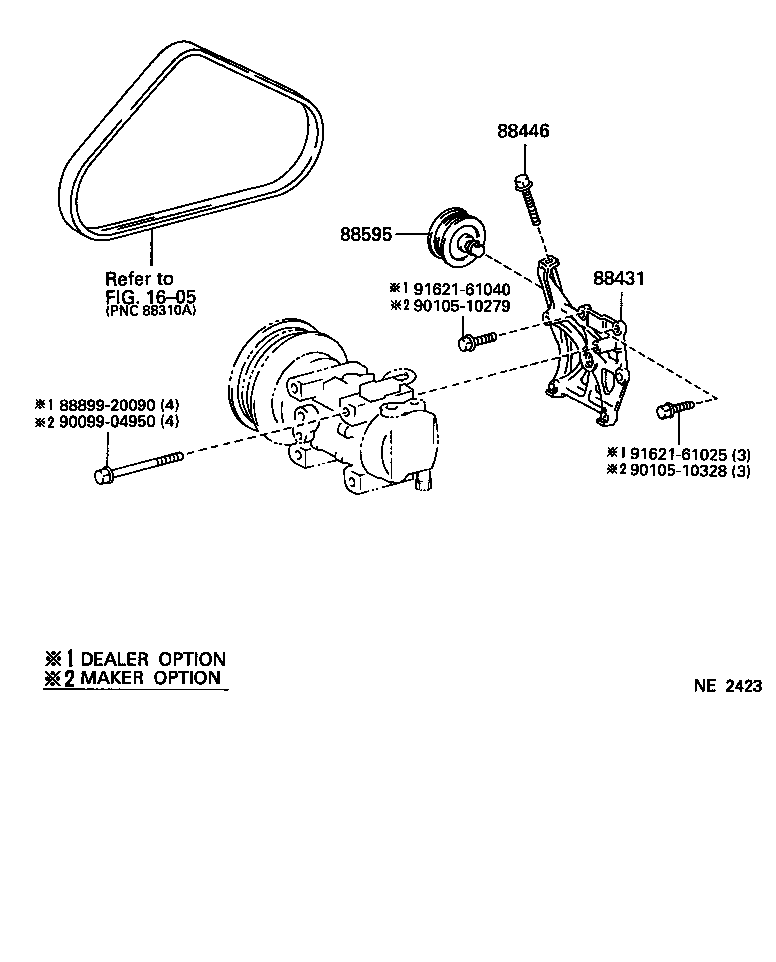

ILLUST NO. 1 OF 3(9704- )AE11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12400 |
AE111..GL DEALER OPTION |
1 | ||
| 88431-12380 |
AE111..GL MAKER OPTION |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-12030 |
AE11#,EE110 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-17010 |
AE111..GL |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04950 | ||||
| 90105-10279 | ||||
| 90105-10328 | ||||
| 91621-61025 | ||||
| 91621-61040 | ||||
| Linked diagrams | ||||
| 1605 | ||||
