8718 - HEATING & AIR CONDITIONING - COOLER PIPING

AE111L-ALMNU (1997)

Toyota Corolla Lb

Production Apr 1997 - Oct 1999

Engine 4AF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9704- )

Click highlighted areas on diagram

O RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

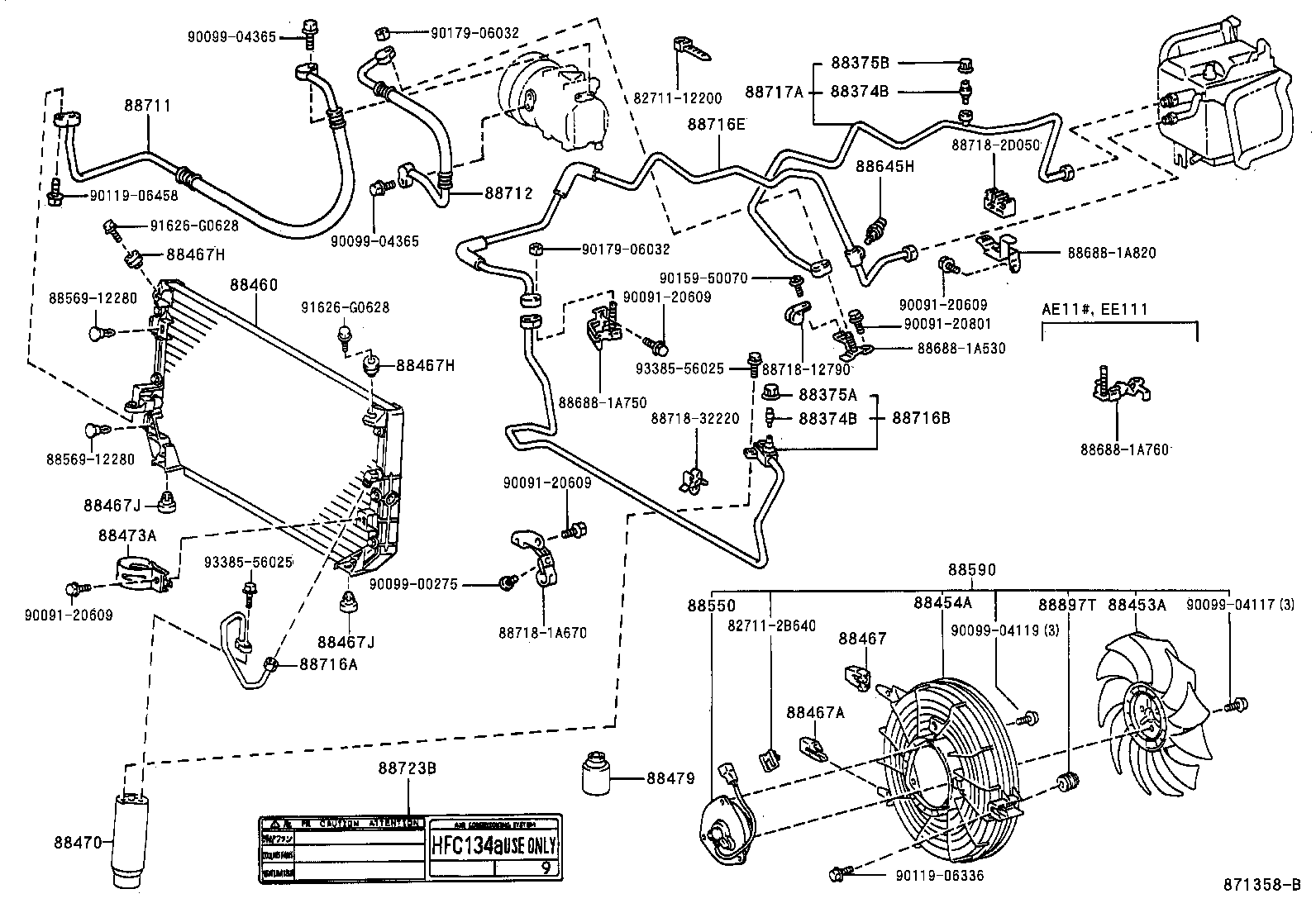

ILLUST NO. 1 OF 2(9704- )LHD

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	AE111,EE110;AE112..ARL,GCC DEALER OPTION	08/1998 - 10/1999	2
88374-30010	AE11#,EE110 DEALER OPTION	04/1997 - 08/1998	2
88374B - VALVE, SERVICE, NO.1
88374-30010	AE111,EE110;AE112..ARL,GCC DEALER OPTION	08/1998 - 10/1999	2
88374-30010	AE11#,EE110 DEALER OPTION	04/1997 - 08/1998	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AE11#,EE110	04/1997 - 10/1999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	AE11#,EE110	04/1997 - 10/1999	1
88453A - FAN, COOLING
88453-10022	AE11#,EE110..GCC,GEN,NZ MAKER OPTION	04/1997 - 10/1999	1
88453-10021	AE111,EE110..GEN,NZ DEALER OPTION	04/1997 - 10/1999	1
88454A - SHROUD, FAN
88454-12160	AE11#,EE110	04/1997 - 10/1999	1
88460 - CONDENSER ASSY, COOLER
88460-12480	AE11#,EE110	04/1997 - 10/1999	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12130	AE11#,EE110	04/1997 - 10/1999	1
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12140	AE11#,EE110	04/1997 - 10/1999	1
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	AE11#,EE110	04/1997 - 10/1999	2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	AE11#,EE110	04/1997 - 10/1999	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE11#,EE110	04/1997 - 10/1999	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE11#,EE110	04/1997 - 10/1999	2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010	AE11#,EE110	04/1997 - 10/1999	1
88473A - HOLDER, RECEIVER
88473-20070	AE11#,EE110	04/1997 - 10/1999	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008	AE112..ARL;AE111,EE110..ARL,GEN,NZ 200G	04/1997 - 10/1999	3
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12160	AE11#,EE110	04/1997 - 10/1999	1
88590 - BLOWER ASSY, W/SHROUD
88590-12250	AE11#,EE110	04/1997 - 10/1999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-1A490	AE111..GEN,NZ;AE112..ARL,GCC	04/1997 - 10/1999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A610	AE111..GL	04/1997 - 10/1999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12470	AE11#,EE110	04/1997 - 10/1999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A410	AE11#,EE110..LHD	04/1997 - 10/1999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A420	AE111,EE110..LHD	04/1997 - 10/1999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-1A060	AE111,EE110..LHD	04/1997 - 10/1999	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12120	AE11#,EE110	04/1997 - 10/1999	1
88897T - GROMMET, COOLER
88897-12250	AE11#,EE110..GEN,NZ	04/1997 - 08/1998	1
88897-12250	AE112..ARL;AE111,EE110..ARL,GEN,NZ	08/1998 - 10/1999	1
Common parts
82711-12200
82711-2B640
88569-12280
88688-1A530
88688-1A750
88688-1A760
88688-1A820
88718-12790
88718-1A670
88718-2D050
88718-32220
90091-20609
90091-20801
90099-00275
90099-04117
90099-04119
90099-04365
90119-06336
90119-06458
90159-50070
90179-06032
91626-G0628
93385-56025

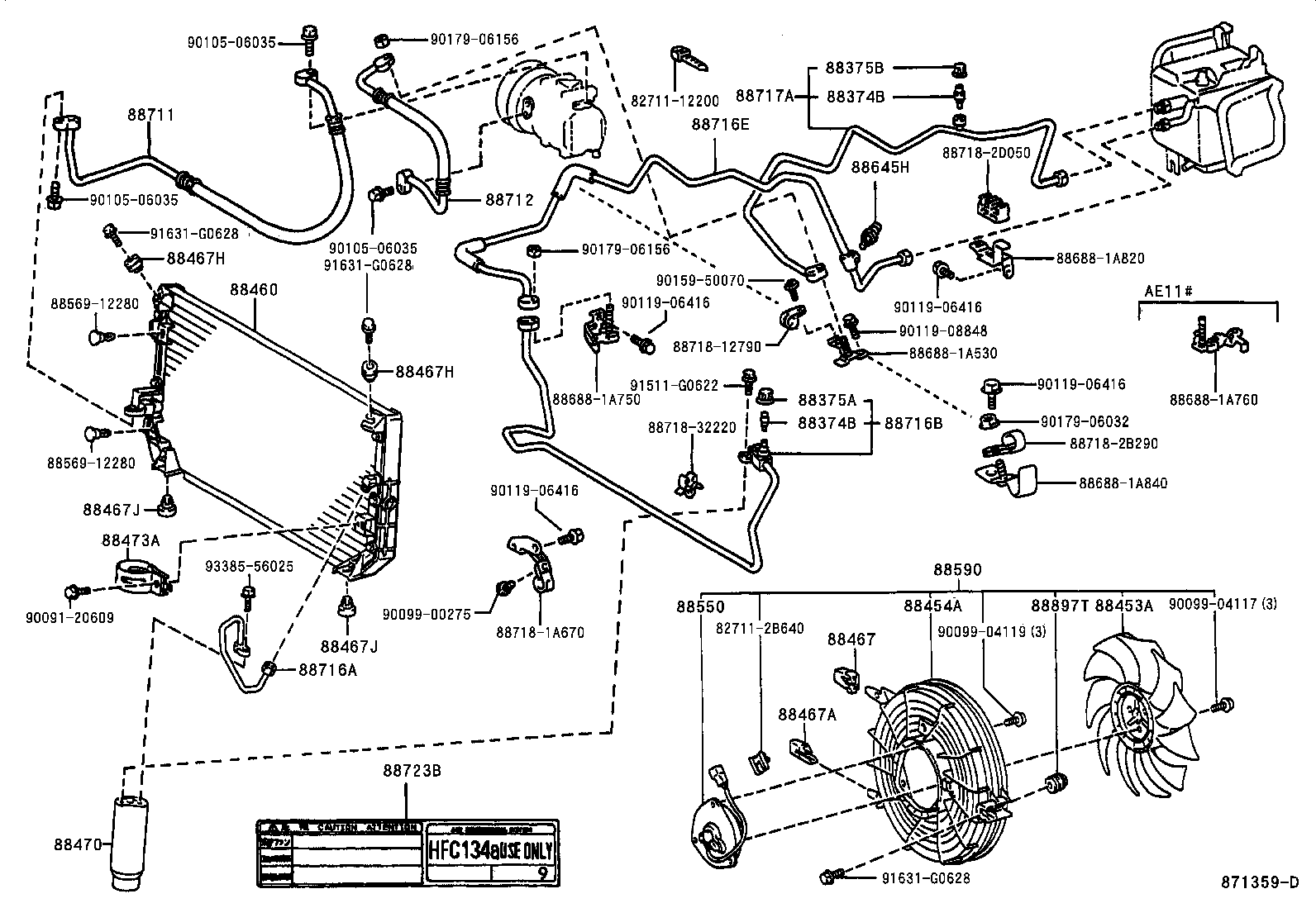

ILLUST NO. 1 OF 2(9704- )LHD

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	AE111,EE110;AE112..ARL,GCC DEALER OPTION	08/1998 - 10/1999	2
88374-30010	AE11#,EE110 DEALER OPTION	04/1997 - 08/1998	2
88374B - VALVE, SERVICE, NO.1
88374-30010	AE111,EE110;AE112..ARL,GCC DEALER OPTION	08/1998 - 10/1999	2
88374-30010	AE11#,EE110 DEALER OPTION	04/1997 - 08/1998	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	AE11#,EE110	04/1997 - 10/1999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	AE11#,EE110	04/1997 - 10/1999	1
88453A - FAN, COOLING
88453-10022	AE11#,EE110..GCC,GEN,NZ MAKER OPTION	04/1997 - 10/1999	1
88453-10021	AE111,EE110..GEN,NZ DEALER OPTION	04/1997 - 10/1999	1
88454A - SHROUD, FAN
88454-12160	AE11#,EE110	04/1997 - 10/1999	1
88460 - CONDENSER ASSY, COOLER
88460-12480	AE11#,EE110	04/1997 - 10/1999	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12130	AE11#,EE110	04/1997 - 10/1999	1
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12140	AE11#,EE110	04/1997 - 10/1999	1
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	AE11#,EE110	04/1997 - 10/1999	2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	AE11#,EE110	04/1997 - 10/1999	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE11#,EE110	04/1997 - 10/1999	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE11#,EE110	04/1997 - 10/1999	2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010	AE11#,EE110	04/1997 - 10/1999	1
88473A - HOLDER, RECEIVER
88473-20070	AE11#,EE110	04/1997 - 10/1999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12160	AE11#,EE110	04/1997 - 10/1999	1
88590 - BLOWER ASSY, W/SHROUD
88590-12250	AE11#,EE110	04/1997 - 10/1999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-1A490	AE111..GEN,NZ;AE112..ARL,GCC	04/1997 - 10/1999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A610	AE111..GL	04/1997 - 10/1999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12470	AE11#,EE110	04/1997 - 10/1999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1A410	AE11#,EE110..LHD	04/1997 - 10/1999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A420	AE111,EE110..LHD	04/1997 - 10/1999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-1A060	AE111,EE110..LHD	04/1997 - 10/1999	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12120	AE11#,EE110	04/1997 - 10/1999	1
88897T - GROMMET, COOLER
88897-12250	AE11#,EE110..GEN,NZ	04/1997 - 08/1998	1
88897-12250	AE112..ARL;AE111,EE110..ARL,GEN,NZ	08/1998 - 10/1999	1
Common parts
82711-12200
82711-2B640
88569-12280
88688-1A530
88688-1A750
88688-1A760
88688-1A820
88688-1A840
88718-12790
88718-1A670
88718-2B290
88718-2D050
88718-32220
90091-20609
90099-00275
90099-04117
90099-04119
90105-06035
90119-06416
90119-08848
90159-50070
90179-06032
90179-06156
91511-G0622
91631-G0628
93385-56025
