AE111L-ALMNU (1997)

Toyota Corolla Lb

Production Apr 1997 - Oct 1999
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

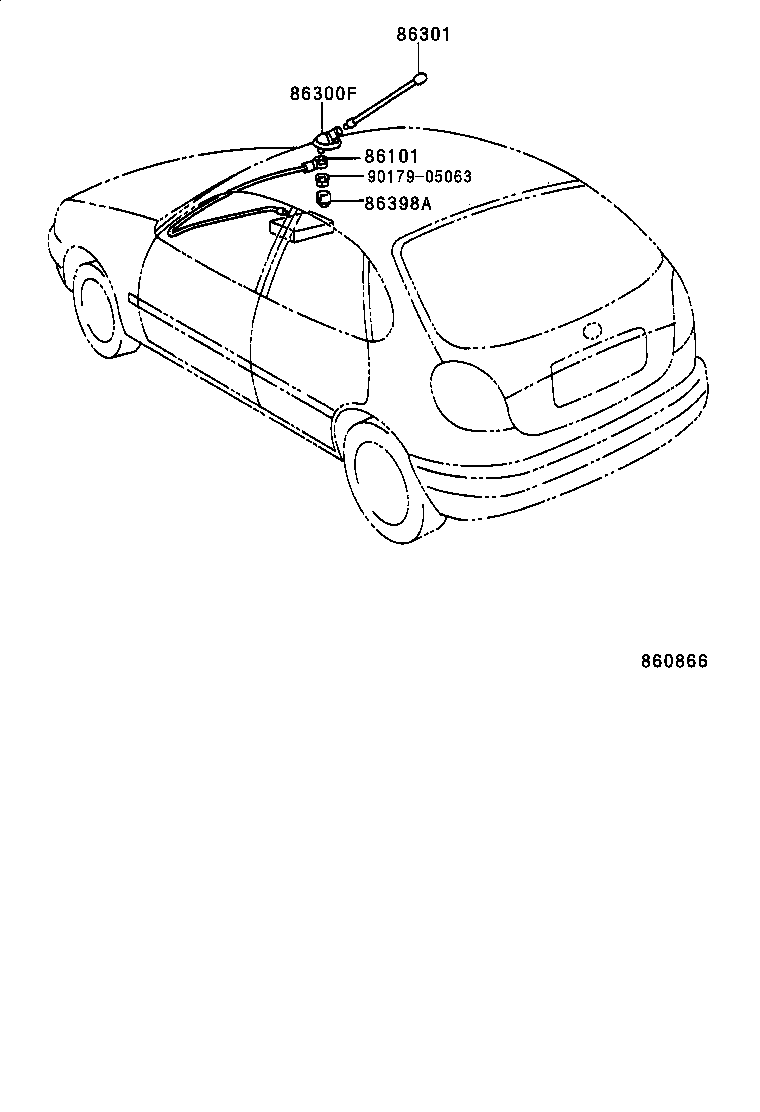

Click highlighted areas on diagram

diagram 86101 86300F 86301 86398A 9017905063
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-12250

AE11#,EE110..LHD

 1
86101-12160

AE11#,EE110..LHD

W(SUN ROOF)

 1
86300F - HOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE)
86300-12700

AE11#,EE110

 1
86301 - POLE SUB-ASSY, ANTENNA
86309-12130

AE11#,EE110

 1
86398A - CAP, ANTENNA SHIELD
86398-12010

AE11#,EE110..ARL,GCC,GEN

 1
Common parts
90179-05063
