AE111L-ALMNU (1997)

Toyota Corolla Lb

Production Apr 1997 - Oct 1999
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9704- )

Click highlighted areas on diagram

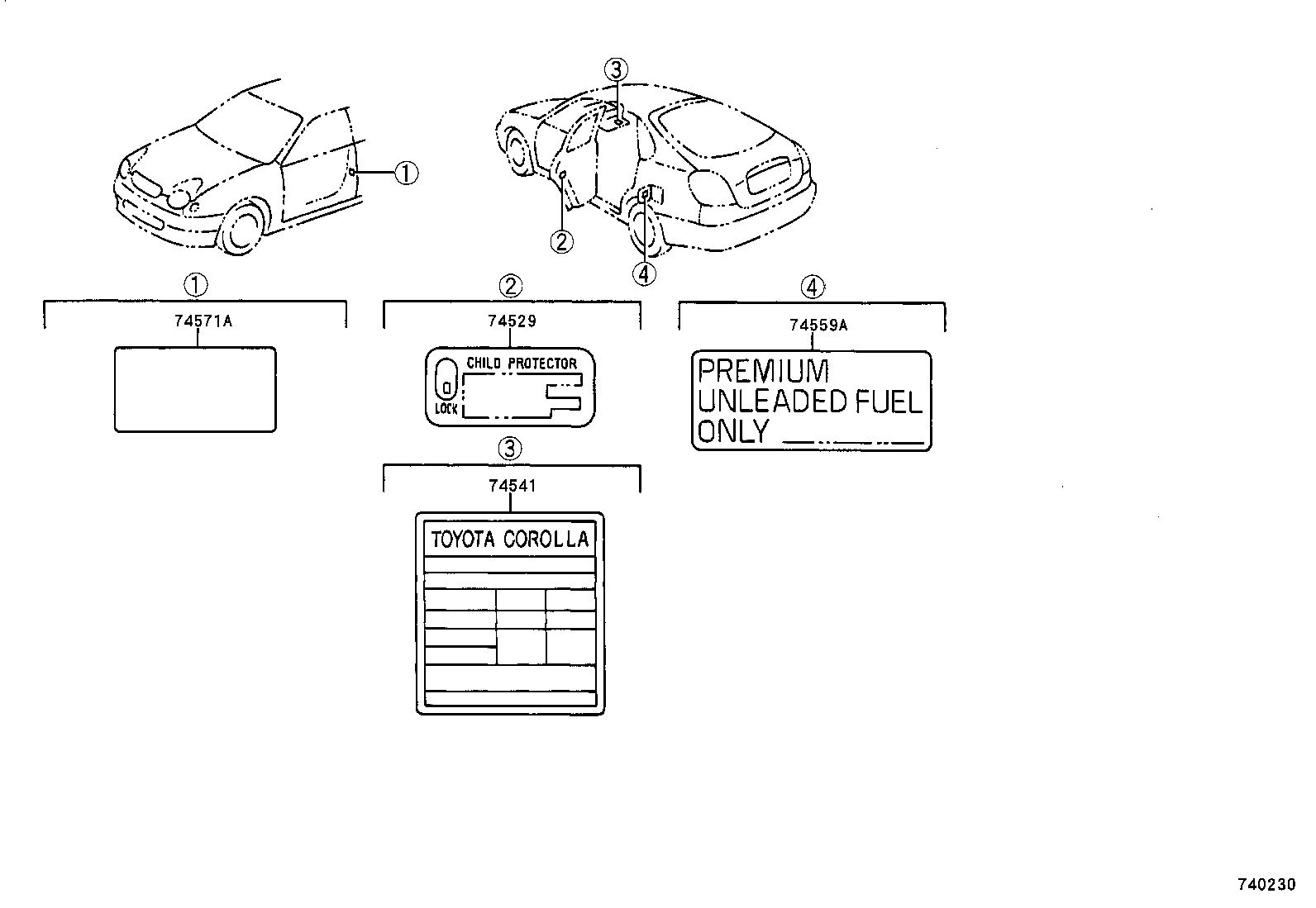

EXTERIOR & INTERIOR

diagram 74529 74541 74559A 74571A
Part # Description Qty Price
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

AE11#,EE110

 2

ILLUST NO. 1 OF 2(9704- )

Click highlighted areas on diagram

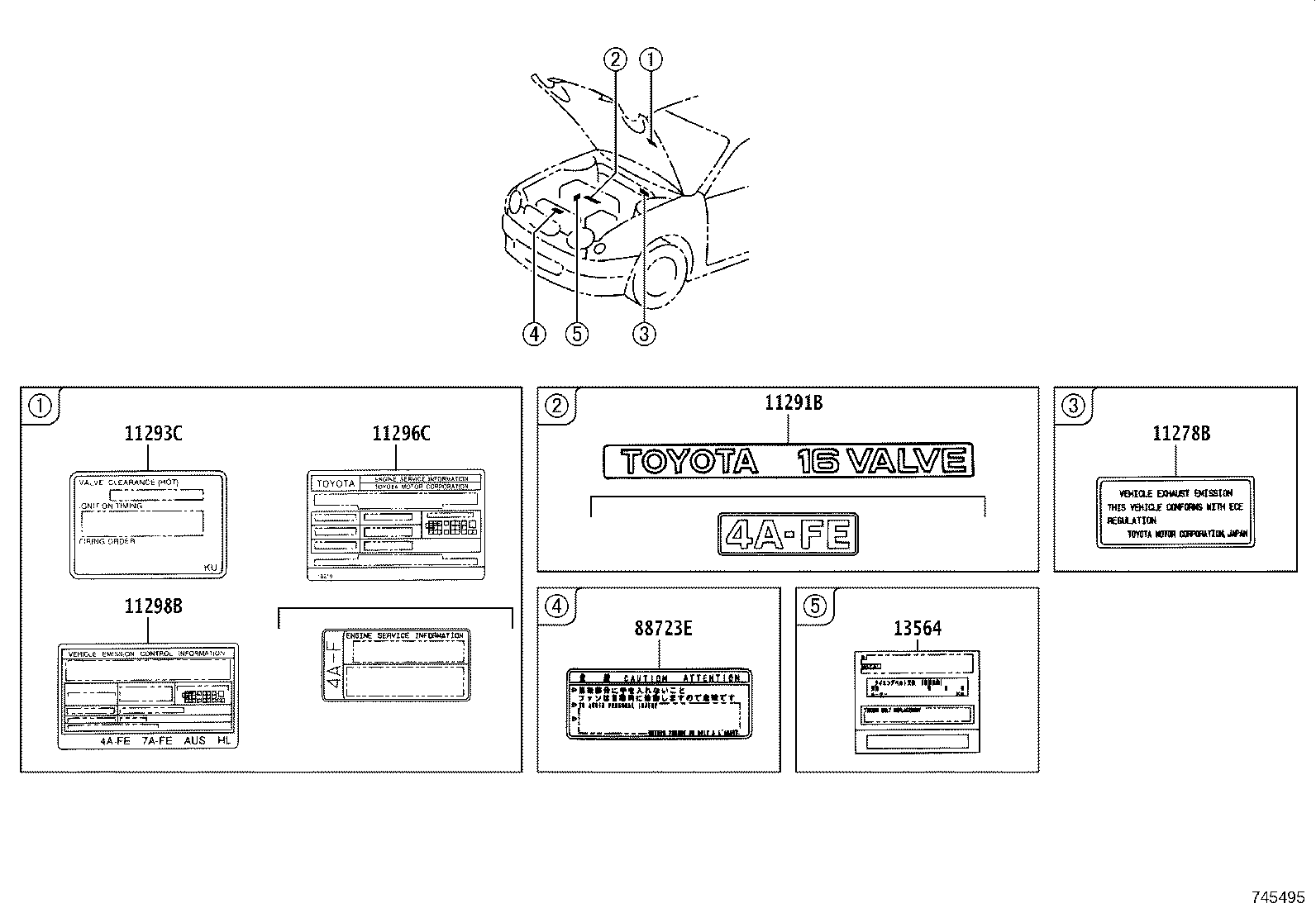

ENGINE ROOM

diagram 11278B 11291B 11293C 11296C 11298B 13564 88723E
Part # Description Qty Price
11278B - LABEL, ENGINE EMISSION COMPLIANCE INFORMATION
11278-16040

4AF#..AE111..GEN

 1
11291B - PLATE, ENGINE NAME
11292-16020

4AF#..AE111..GEN

4A-FE

 1
11291-15120

4AF..AE111

 1
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-16170

4AF#,7AFE..AE11#..GCC,GEN

 1
11296-16030

4AF..AE111

 1
13564 - LABEL, TIMING BELT REPLACEMENT INFORMATION
13564-10010

4AF#,7AFE,2E..AE11#,EE110..GCC,GEN

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-20081

AE11#,EE110

 1
