AE111L-ALMNU (1997)
Toyota Corolla Lb
Production
Apr 1997
-
Oct 1999
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9704-9910)4AF

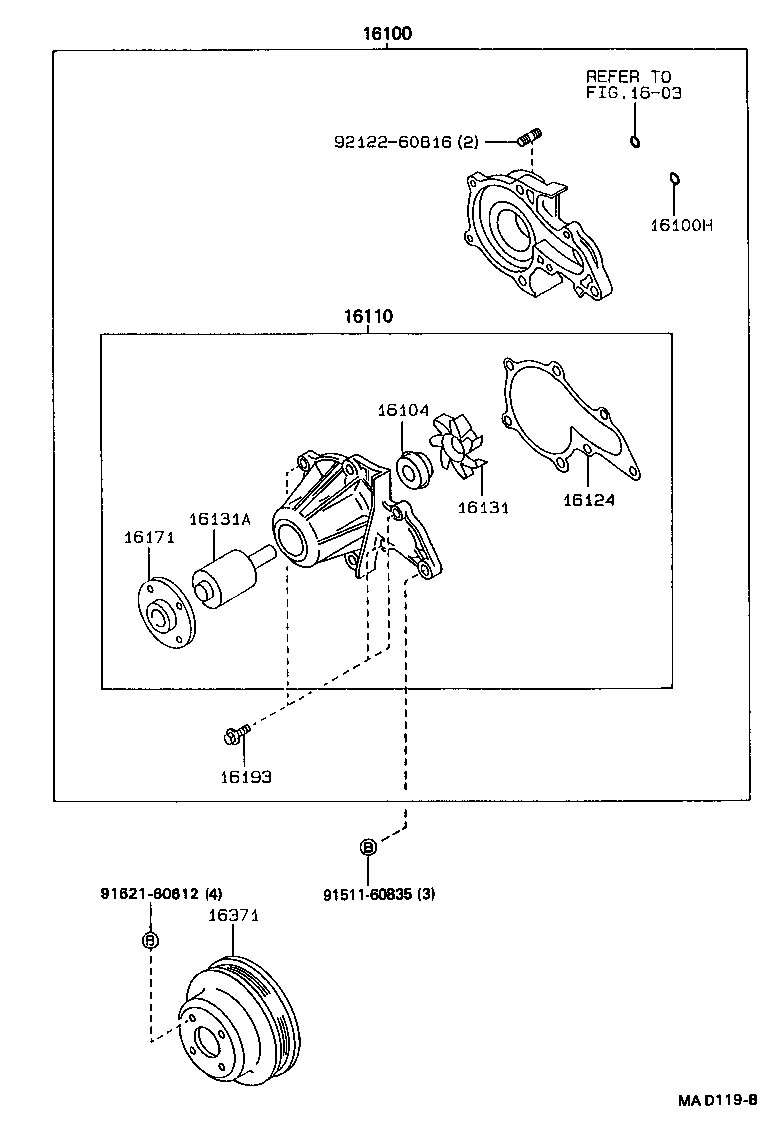

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-19205 |
4AF..AE111 |
1 | ||
| 16100H - RING, O(FOR WATER PUMP) | ||||
| 96761-24035 |
4AF#,7AFE..AE11# |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-74010 |
4AF..AE111 |
1 | ||
| 16110 - PUMP ASSY, WATER, W/O COUPLING | ||||
| 16110-19076 |
4AF..AE111 AISIN SEIKI |
1 | ||
| 16110-19086 |
4AF..AE111 AISAN |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-15110 |
4AF#,7AFE..AE11# AISIN SEIKI |
1 | ||
| 16124-15061 |
4AF..AE111 AISAN |
1 | ||
| 16124-16020 |
4AF..AE111 AISIN SEIKI |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-15070 |
4AF..AE111 AISAN |
1 | ||
| 16131-15080 |
4AF..AE111 AISIN SEIKI |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-35071 |
4AF..AE111;4AFE..AE111..NZ TMCA |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-10012 |
4AF#,7AFE..AE11# AISIN SEIKI |
1 | ||
| 16171-15071 |
4AF#,7AFE..AE11# AISAN |
1 | ||
| 16193 - BOLT, STUD(FOR WATER PUMP COVER) | ||||
| 16193-15011 |
4AF..AE111 AISIN SEIKI |
3 | ||
| 16193-15100 |
4AF..AE111 AISAN |
3 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-02030 |
7AFE..AE112;4AF#..AE111..ARL,GEN (L) |
1 | ||
| 16371-15071 |
7AFE..AE112;4AF#..AE111..ARL,GEN (J) |
1 | ||
| Common parts | ||||
| 91511-60835 | ||||
| 91621-60612 | ||||
| 92122-60816 | ||||
| Linked diagrams | ||||
| 1603 | ||||
