AE111L-ALMNU (1997)

Toyota Corolla Lb

Production Apr 1997 - Oct 1999
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )4AF#,7AFE

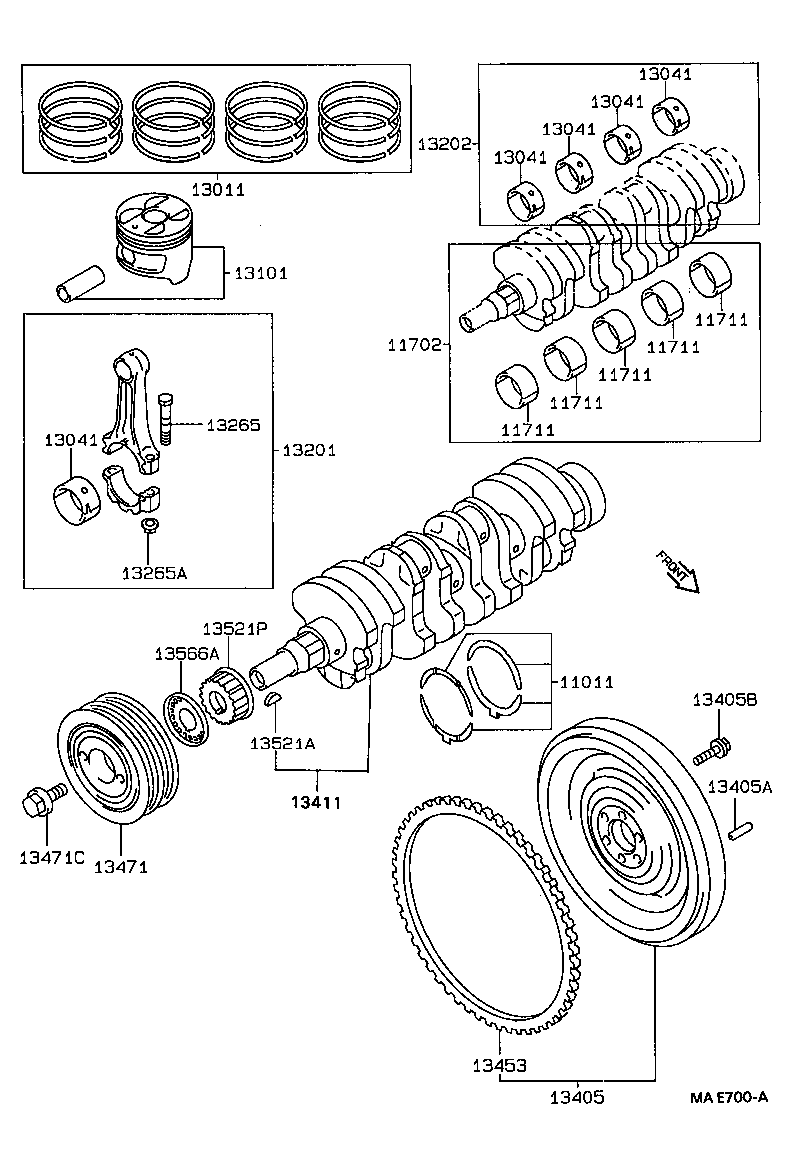

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471C 13521A 13521P 13566A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-15020

4AF#,7AFE..AE11#

STD

 1
11011-15010

4AF#,7AFE..AE11#

STD

 1
11702 - BEARING SET, CRANKSHAFT
11704-16010

4AF#,7AFE..AE11#

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-1601003

4AF#,7AFE..AE11#

MARK 3

 5
11701-1601005

4AF#,7AFE..AE11#

MARK 5

 5
11701-1601004

4AF#,7AFE..AE11#

MARK 4

 5
11701-1601002

4AF#,7AFE..AE11#

MARK 2

 5
11701-1601001

4AF#,7AFE..AE11#

MARK 1

 5
11711 - BEARING, CRANKSHAFT
11701-1601003

4AF#,7AFE..AE11#

MARK 3

 5
11701-1601005

4AF#,7AFE..AE11#

MARK 5

 5
11701-1601004

4AF#,7AFE..AE11#

MARK 4

 5
11701-1601002

4AF#,7AFE..AE11#

MARK 2

 5
11701-1601001

4AF#,7AFE..AE11#

MARK 1

 5
11711 - BEARING, CRANKSHAFT
11701-1601003

4AF#,7AFE..AE11#

MARK 3

 5
11701-1601005

4AF#,7AFE..AE11#

MARK 5

 5
11701-1601004

4AF#,7AFE..AE11#

MARK 4

 5
11701-1601002

4AF#,7AFE..AE11#

MARK 2

 5
11701-1601001

4AF#,7AFE..AE11#

MARK 1

 5
11711 - BEARING, CRANKSHAFT
11701-1601003

4AF#,7AFE..AE11#

MARK 3

 5
11701-1601005

4AF#,7AFE..AE11#

MARK 5

 5
11701-1601004

4AF#,7AFE..AE11#

MARK 4

 5
11701-1601002

4AF#,7AFE..AE11#

MARK 2

 5
11701-1601001

4AF#,7AFE..AE11#

MARK 1

 5
11711 - BEARING, CRANKSHAFT
11701-1601003

4AF#,7AFE..AE11#

MARK 3

 5
11701-1601005

4AF#,7AFE..AE11#

MARK 5

 5
11701-1601004

4AF#,7AFE..AE11#

MARK 4

 5
11701-1601002

4AF#,7AFE..AE11#

MARK 2

 5
11701-1601001

4AF#,7AFE..AE11#

MARK 1

 5
13011 - RING SET, PISTON
13011-16140

4AF..AE111

STD

 1
13013-16140

4AF..AE111

O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-1503002

4AF#..AE111

MARK 2

 4
13041-1503001

4AF#..AE111

MARK 1

 4
13041-1503003

4AF#..AE111

MARK 3

 4
13041 - BEARING, CONNECTING ROD
13041-1503002

4AF#..AE111

MARK 2

 4
13041-1503001

4AF#..AE111

MARK 1

 4
13041-1503003

4AF#..AE111

MARK 3

 4
13041 - BEARING, CONNECTING ROD
13041-1503002

4AF#..AE111

MARK 2

 4
13041-1503001

4AF#..AE111

MARK 1

 4
13041-1503003

4AF#..AE111

MARK 3

 4
13041 - BEARING, CONNECTING ROD
13041-1503002

4AF#..AE111

MARK 2

 4
13041-1503001

4AF#..AE111

MARK 1

 4
13041-1503003

4AF#..AE111

MARK 3

 4
13041 - BEARING, CONNECTING ROD
13041-1503002

4AF#..AE111

MARK 2

 4
13041-1503001

4AF#..AE111

MARK 1

 4
13041-1503003

4AF#..AE111

MARK 3

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-1611002

4AF..AE111

STD,MARK 2

 4
13101-1611001

4AF..AE111

STD,MARK 1

 4
13103-16110

4AF..AE111

O/S 0.50

 4
13101-1611003

4AF..AE111

STD,MARK 3

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-19056

4AF..AE111

 4
13202 - BEARING SET, CONNECTING ROD
13204-15030

4AF#..AE111

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-15030

4AF#..AE111

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-09008

4AF#..AE111

 8
90179-09008

4AF#..AE111

 8
13405 - FLYWHEEL SUB-ASSY
13405-15090

4AF#,7AFE..AE11#..5F

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

4AF#,7AFE..AE11#..5F

L=18,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-10042

4AF#,7AFE..AE11#..5F

 6
13411 - CRANKSHAFT
13411-15900

4AF..AE111

 1
13453 - GEAR, FLYWHEEL RING
13453-10010

4AF#,7AFE..AE11#..5F

 1
13471 - PULLEY, CRANKSHAFT
13470-15070

4AF..AE111

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-12314

4AF#,7AFE..AE11#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05005

4AF#,7AFE..AE11#

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-15010

4AF..AE111

 1
13566A - GUIDE, TIMING BELT
13566-15010

4AF..AE111

 1
