ZVG10R-DHXEBT (2020)

Toyota Corolla Cross

Production Jul 2020 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

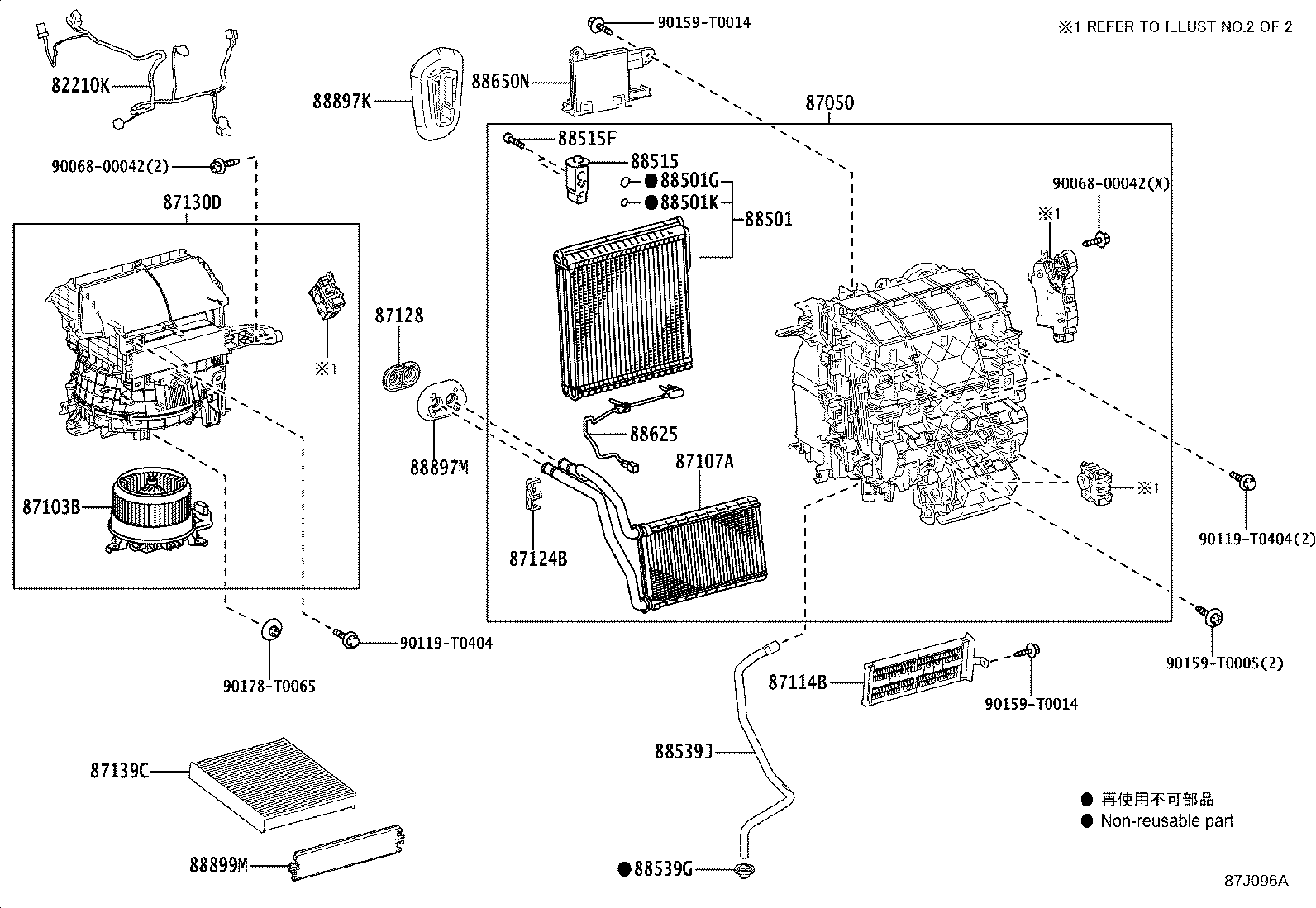

ILLUST NO. 1 OF 2(2007- )RHD

Click highlighted areas on diagram

AUTO AIR CONDITIONER

diagram 82210K 87050 87103B 87107A 87114B 87124B 87128 87130D 87139C 88501 88501G 88501K 88515 88515F 88539G 88539J 88625 88650N 88897K 88897M 88899M 9006800042 9006800042 90119T0404 90119T0404 90159T0005 90159T0014 90159T0014 90178T0065
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-02440

ZVG10..N..TH;ZSG10,ZVG10..RHD..(E,G)

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0A200

ZVG10..N..TH;ZVG10..RHD..(E,G)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0A070

ZSG10,ZVG10..RHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-F4030

ZSG10,ZVG10..RHD

 1
87114B - COVER, HEATER
87114-F4080

ZSG10,ZVG10..THP

 1
87124B - CLAMP, HEATER
87124-06140

ZSG10,ZVG10..THP

 1
87128 - GROMMET, HEATER
87128-28010

MXGA10,ZSG10,ZVG10

 1
87130D - BLOWER ASSY
87130-F4061

ZSG10,ZVG10..RHD

 1
87139C - FILTER, CLEAN AIR
87139-0K060

ZSG10,ZVG10..THP

POLLEN FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-F4090

ZVG10..THP

 1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90068-14043

ZSG10,ZVG10..THP

ID=13.4,OD=18.2

 1
88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID)
90068-14044

ZSG10,ZVG10..THP

ID=10.2,OD=15.0

 1
88515 - VALVE, COOLER EXPANSION
88515-F4030

ZSG10,ZVG10..THP

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90068-04062

ZSG10,ZVG10..THP

 2
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
88888-02020

ZSG10,ZVG10..THP

 1
88539J - HOSE, DRAIN COOLER
88539-02520

ZSG10,ZVG10..RHD

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010

ZSG10,ZVG10..THP

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0A030

ZVG10..THP,TWP;ZSG10..GEN,IDN,MA,PH,TAIW,TH,VN

 1
88897K - GROMMET, (FOR COOLER PIPE)
88899-F4250

ZSG10,ZVG10..THP

 1
88897M - GROMMET (FOR HEATER PIPE)
87128-F4040

ZSG10,ZVG10..THP

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-06330

ZSG10,ZVG10..THP

 1
Common parts
90068-00042
90119-T0404
90159-T0005
90159-T0014
90178-T0065

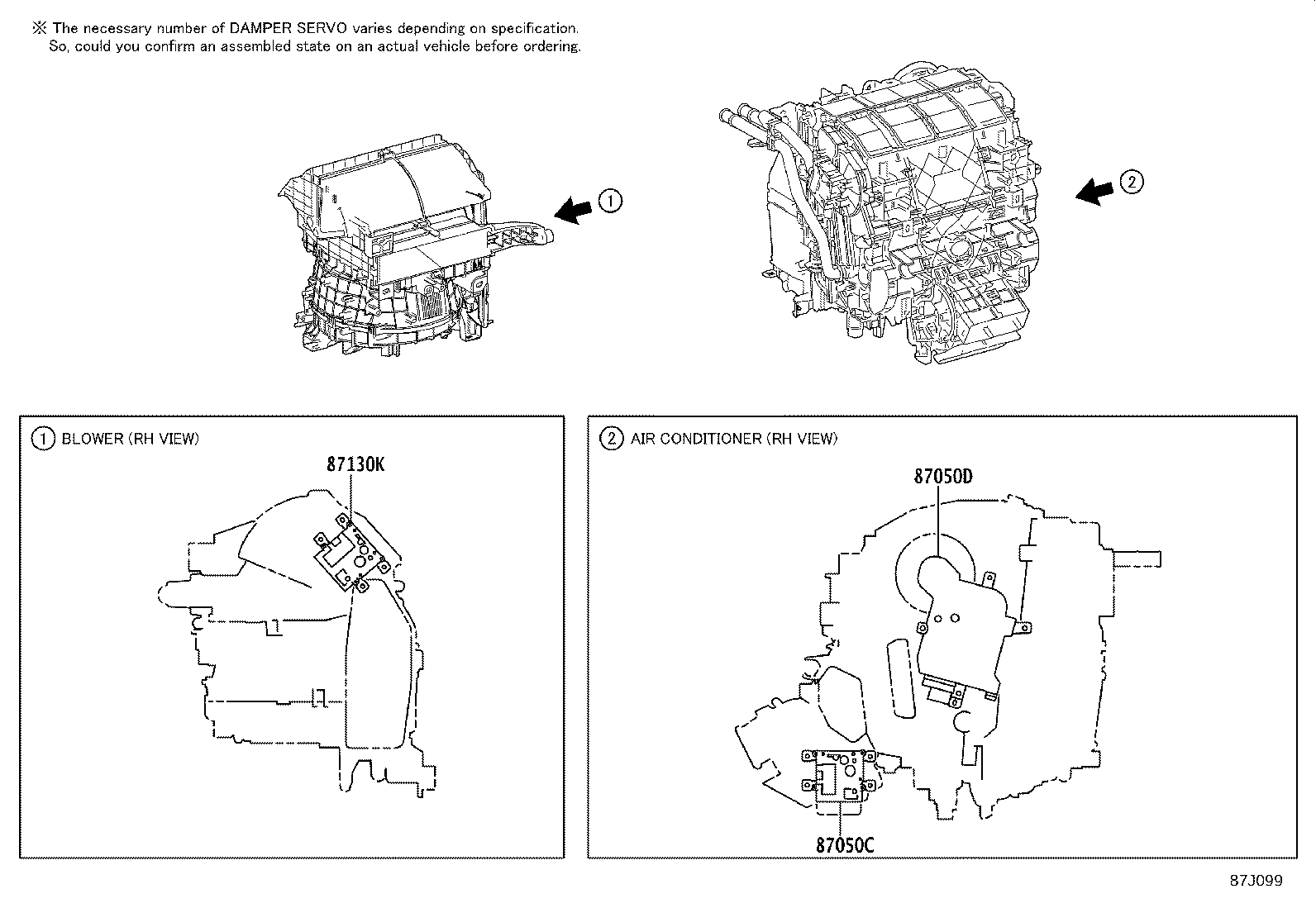

ILLUST NO. 2 OF 2(2007- )RHD

Click highlighted areas on diagram

DAMPER SERVO

diagram 87050C 87050D 87130K
Part # Description Qty Price
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-02770

ZVG10..N..TH;ZSG10,ZVG10..RHD..(E,G)

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-F4060

ZVG10..N..TH;ZVG10..THP..(E,G);ZSG10..E..(GEN,IDN,VN)

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-F4070

ZSG10,ZVG10..RHD

 1
