ZVG10R-DHXEBT (2020)

Toyota Corolla Cross

Production Jul 2020 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )RHD

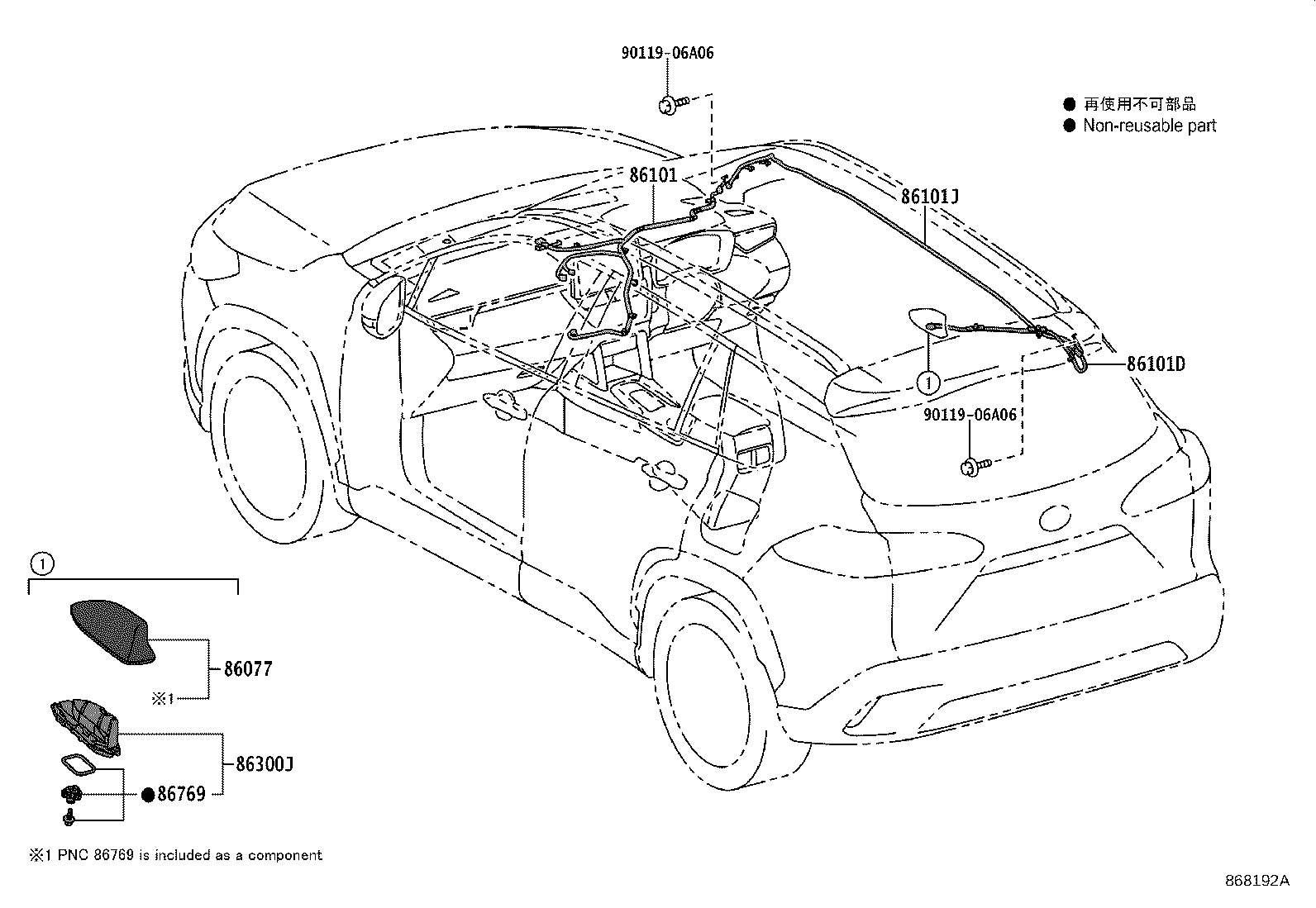

Click highlighted areas on diagram

diagram 86077 86101 86101D 86101J 86300J 86769 9011906A06 9011906A06
Part # Description Qty Price
86077 - COVER KIT, ANTENNA
86077-F4010A2

ZVG10..E..TH

PLATINUM WHITE PEARL MC.,089 ,2PS

 1
86077-F4010B0

ZSG10,ZVG10..THP

METAL STREAM ME,1K0

 1
86077-F4010C1

ZSG10..E..VN;ZVG10..E..(PH,TH)

ATTITUDE BLACK MC.,218 ,2PS ,2QL

 1
86077-F4010B1

ZSG10,ZVG10..THP

CELESTITE GRAY ME.,1K3

 1
86077-F4010A2

ZSG10..THP;ZVG10..(G,N)..TH;ZVG10..THP..(GEN,IDN,MA,PH,VN)

PLATINUM WHITE PEARL MC.,089

 1
86077-F4010E0

ZSG10,ZVG10..THP

GRAPHITE ME.,4X7

 1
86077-F4010D0

ZVG10..E..TH

RED M.M.,2QL ,3R3

 1
86077-F4010D0

ZSG10..THP;ZVG10..(G,N)..TH;ZVG10..THP..(GEN,IDN,MA,PH,VN)

RED M.M.,3R3

 1
86077-F4010C1

ZSG10..N..VN;ZVG10..(G,N)..TH;ZSG10..GEN,IDN,MA,PH,TH;ZVG10..THP..(GEN,IDN,MA,VN)

ATTITUDE BLACK MC.,218

 1
86077-F4010J0

ZSG10,ZVG10..THP

NEBULA BLUE ME.,8X2

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-0A210

ZSG10,ZVG10..IDN,MA,TH;ZSG10,ZVG10..RHD..N..GEN

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-0A020

MXGA10,ZSG10,ZVG10..BZP,THP

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-0A070

MXGA10..G,N;MXGA10..E..(BZ,GEN);ZSG10,ZVG10..BZ,GEN,IDN,MA,PH,TH,VN

 1
86300J - ANTENNA ASSY, ROOF
86300-0A020

ZSG10,ZVG10..THP

 1
86769 - HOUSING, ROOF ANTENNA
86769-0K010

ZSG10,ZVG10..THP

 1
Common parts
90119-06A06
