ZVG10R-DHXEBT (2020)

Toyota Corolla Cross

Production Jul 2020 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )RHD

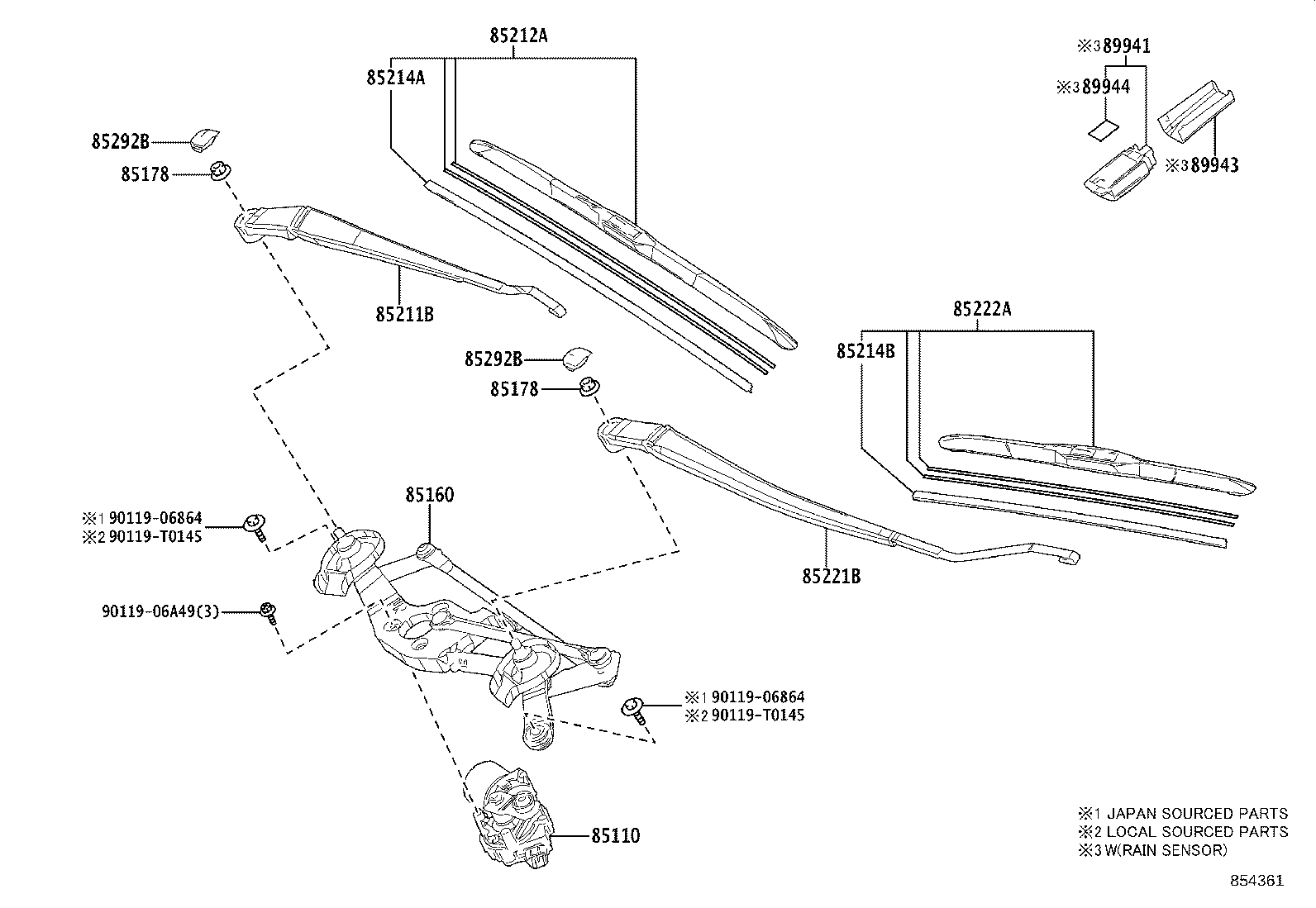

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 89944 9011906864 9011906864 9011906A49 90119T0145 90119T0145
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-0A080

ZSG10,ZVG10..RHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-0A080

ZSG10,ZVG10..RHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

MXGA10,ZSG10,ZVG10

(J)

 2
90182-T0029

MXGA10,ZSG10,ZVG10..BZP,THP

(L)

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

MXGA10,ZSG10,ZVG10

(J)

 2
90182-T0029

MXGA10,ZSG10,ZVG10..BZP,THP

(L)

 2
85211B - ARM, FRONT WIPER, RH
85211-0A020

ZSG10,ZVG10..RHD

 1
85212A - BLADE, FR WIPER, RH
85212-30470

ZSG10,ZVG10..RHD

 1
85214A - RUBBER, WIPER, RH
85214-52110

ZSG10,ZVG10..RHD

 1
85214B - RUBBER, WIPER, LH
85214-28090

ZSG10,ZVG10..RHD

 1
85221B - ARM, FRONT WIPER, LH
85221-0A020

ZSG10,ZVG10..RHD

 1
85222A - BLADE, FR WIPER, LH
85222-76030

ZSG10,ZVG10..RHD

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

MXGA10,ZSG10,ZVG10

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-0D030

MXGA10,ZSG10,ZVG10

 2
89941 - SENSOR, RAIN
89941-30040

MXGA10..E..BZ;ZVG10..THP..G..GEN;ZVG10..G..(BZ,IDN,TH);ZSG10,ZVG10..E..(AGT,BZ,GEN,IDN,PH,TAIW,TH,VN)

 1
89943 - COVER, RAIN SENSOR
89943-12040

MXGA10..E..BZ;ZVG10..THP..G..GEN;ZVG10..G..(BZ,IDN,TH);ZSG10,ZVG10..E..(AGT,BZ,GEN,IDN,PH,TAIW,TH,VN)

 1
89944 - TAPE, RAIN SENSOR
89944-42020

MXGA10..E..BZ;ZVG10..THP..G..GEN;ZVG10..G..(BZ,IDN,TH);ZSG10,ZVG10..E..(AGT,BZ,GEN,IDN,PH,TAIW,TH,VN)

 1
Common parts
90119-06864
90119-06A49
90119-T0145
