ZVG10R-DHXEBT (2020)
Toyota Corolla Cross

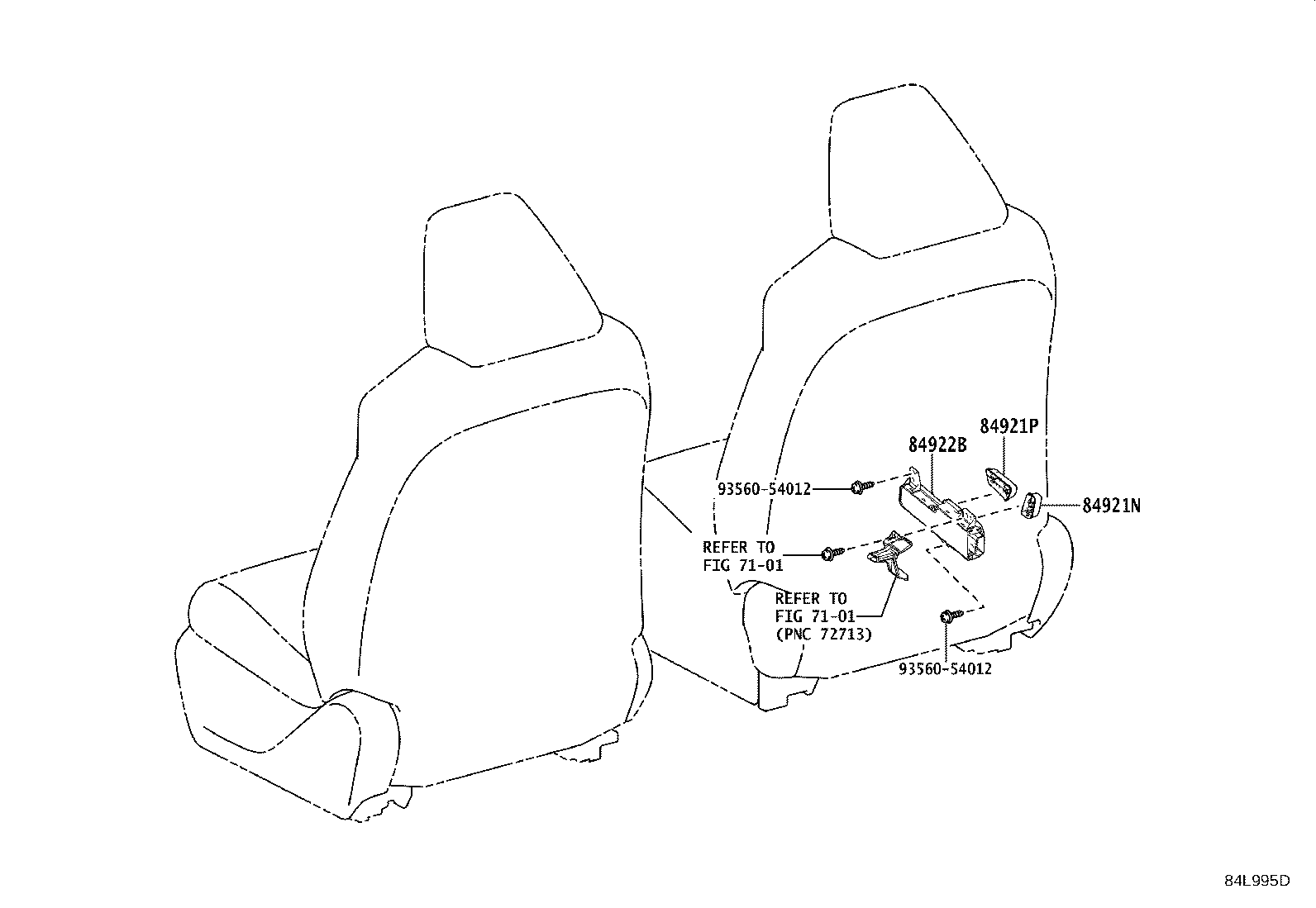

ILLUST NO. 7 OF 9(2007- )RHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921N - KNOB, POWER SEAT SWITCH, RH (FOR RECLINING) | ||||
| 84921-33200C0 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) BLACK,TRIM2#,3# |
1 | ||
| 84921P - KNOB, POWER SEAT SWITCH, RH (FOR SLIDE & VERTICAL) | ||||
| 84921-33190C0 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) BLACK,TRIM2#,3# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-33170 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) |
1 | ||
| Common parts | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7101 | ||||
ILLUST NO. 6 OF 9(2007- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02F40 |
ZSG10..E..VN;ZVG10..E..(MA,PH,TH,VN) |
1 | ||
| 84250-02F30 |
ZSG10..E..MA;ZSG10..N..VN;ZVG10..(G,N)..TH;ZSG10..(E,G)..(GEN,IDN,TH);ZVG10..THP..(E,G)..(GEN,IDN) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-06070 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-06050 |
ZSG10,ZVG10..RHD |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-06050 |
ZSG10,ZVG10..RHD |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-06100 |
ZSG10..IDN,MA;ZVG10..(E,G)..(IDN,MA,TH) |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-06100 |
ZSG10..IDN,MA;ZVG10..(E,G)..(IDN,MA,TH) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0A070 |
ZSG10..RHD..E..(GEN,IDN);ZVG10..RHD..(E,G)..(GEN,IDN,TH) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0A070 |
ZSG10..RHD..E..(GEN,IDN);ZVG10..RHD..(E,G)..(GEN,IDN,TH) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-02110 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| 90159-T0007 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 1 OF 9(2007- )ZVG10
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-44510 |
ZSG10,ZVG10..THP |
1 | ||
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-F4300 |
ZSG10,ZVG10..THP |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-F4290 |
ZSG10,ZVG10..THP |
1 | ||
| 82715Z - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-10310 |
ZVG10 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12060 |
ZSG10,ZVG10 |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-10010 |
ZVG10 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-10080 |
ZSG10,ZVG10 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-47030 |
ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-28090 |
ZVG10 |
1 | ||
| 89491-47011 |
ZVG10 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
MXGA10,ZVG10 |
1 | ||
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0178 | ||||
| 90153-50015 | ||||
| 90468-15007 | ||||
| 91551-80616 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||

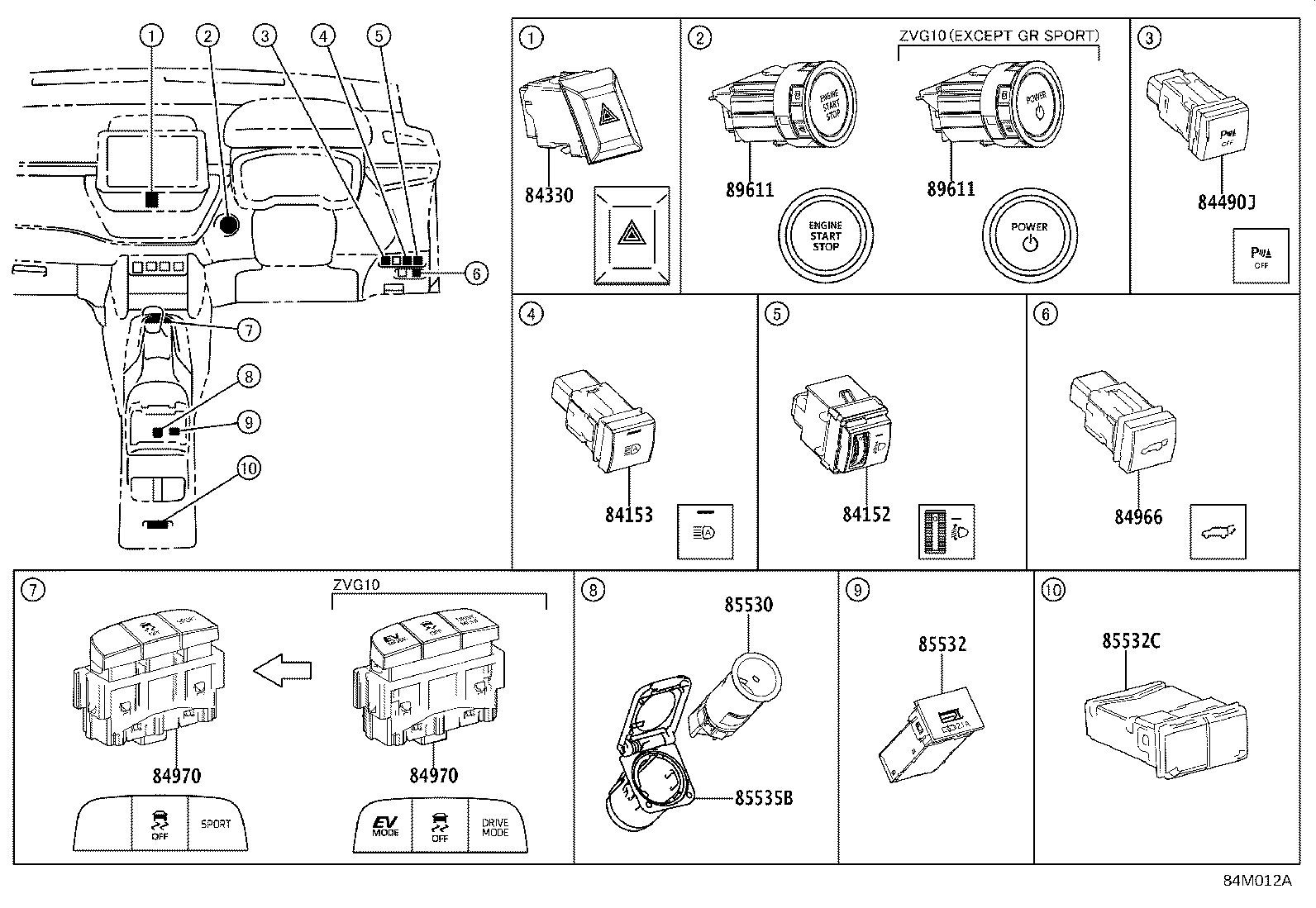

ILLUST NO. 5 OF 9(2007- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02150 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-06040 |
ZVG10..G..BZ;MXGA10,ZSG10..(E,G)..(BZ,VN);ZVG10..E..(AGT,BZ,MA,PH,TH,VN) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02410 |
ZSG10,ZVG10..THP |
1 | ||
| 84966 - SWITCH, POWER BACK DOOR CONTROL | ||||
| 84966-0A010 |
ZSG10..MA;ZVG10..E..TAIW;ZVG10..(E,G)..(IDN,MA,TH) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02520 |
ZVG10..RHD |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02520 |
ZVG10..RHD |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZSG10,ZVG10..THP |
1 | ||
| 85532C - SOCKET, USB CHARGER, NO.2 | ||||
| 85532-06060 |
ZSG10..E..GEN;ZVG10..THP..E;ZSG10..MA,TH,VN;ZVG10..(G,N)..(IDN,TH) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-F4010 |
ZSG10,ZVG10..THP |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52050 |
ZVG10..E..TH GR SPORT |
1 | ||
| 89611-02270 |
ZVG10..BZP,THP |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52050 |
ZVG10..E..TH GR SPORT |
1 | ||
| 89611-02270 |
ZVG10..BZP,THP |
1 | ||
ILLUST NO. 8 OF 9(2007- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-0A020 |
ZSG10,ZVG10..RHD |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-0A020 |
ZSG10,ZVG10..RHD |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02070 |
ZSG10,ZVG10..THP |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02070 |
ZSG10,ZVG10..THP |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02070 |
ZSG10,ZVG10..THP |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02070 |
ZSG10,ZVG10..THP |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02200 |
ZSG10,ZVG10..THP |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02200 |
ZSG10,ZVG10..THP |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02200 |
ZSG10,ZVG10..THP |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02200 |
ZSG10,ZVG10..THP |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02760 |
ZVG10..(E,G)..(MA,TH) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02760 |
ZVG10..(E,G)..(MA,TH) |
1 | ||
| 89430A - COMPUTER ASSY, OUTER MIRROR CONTROL, LH | ||||
| 89430-16030 |
ZSG10..E..VN;ZVG10..(E,G)..(AGT,BZ,MA,PH,TH,VN) |
1 | ||
| 89430B - COMPUTER ASSY, OUTER MIRROR CONTROL, RH | ||||
| 89430-16040 |
ZSG10..E..VN;ZVG10..(E,G)..(AGT,BZ,MA,PH,TH,VN) |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-T0013 | ||||
| 90164-40103 | ||||
| 90164-T0005 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90189-06227 | ||||
ILLUST NO. 9 OF 9(2007- )
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-16310 |
ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-16310 |
ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-16310 |
ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47040 |
MXGA10..E..BZ;ZSG10,ZVG10..E,G,L,M,N |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-0A010 |
ZSG10..MA;ZVG10..E..TAIW;ZVG10..(E,G)..(IDN,MA,TH) |
1 | ||
| 84966A - SWITCH, POWER BACK DOOR CONTROL, NO.1 | ||||
| 84966-0A010 |
ZSG10..MA;ZVG10..E..TAIW;ZVG10..(E,G)..(IDN,MA,TH) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0A010 |
ZSG10..E..VN;ZVG10..(E,G)..(MA,PH,TH,VN) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-0A010 |
ZSG10..E..VN;ZVG10..(E,G)..(MA,PH,TH,VN) |
1 | ||
| 891B2 - SENSOR, KICK DOOR CONTROL | ||||
| 891B2-0A020 |
ZSG10..MA;ZVG10..E..TAIW;ZVG10..(E,G)..(IDN,MA,TH) |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-16010 |
ZSG10..MA;ZVG10..E..TAIW;ZVG10..(E,G)..(IDN,MA,TH) |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
ZSG10..MA;ZVG10..E..TAIW;ZVG10..(E,G)..(IDN,MA,TH) |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ZSG10..E..VN;ZVG10..(E,G)..(AGT,BZ,MA,PH,TH,VN) |
1 | ||
| Common parts | ||||
| 90119-W0187 | ||||
| 90178-06012 | ||||
| 90178-T0096 | ||||
| 91673-80616 | ||||

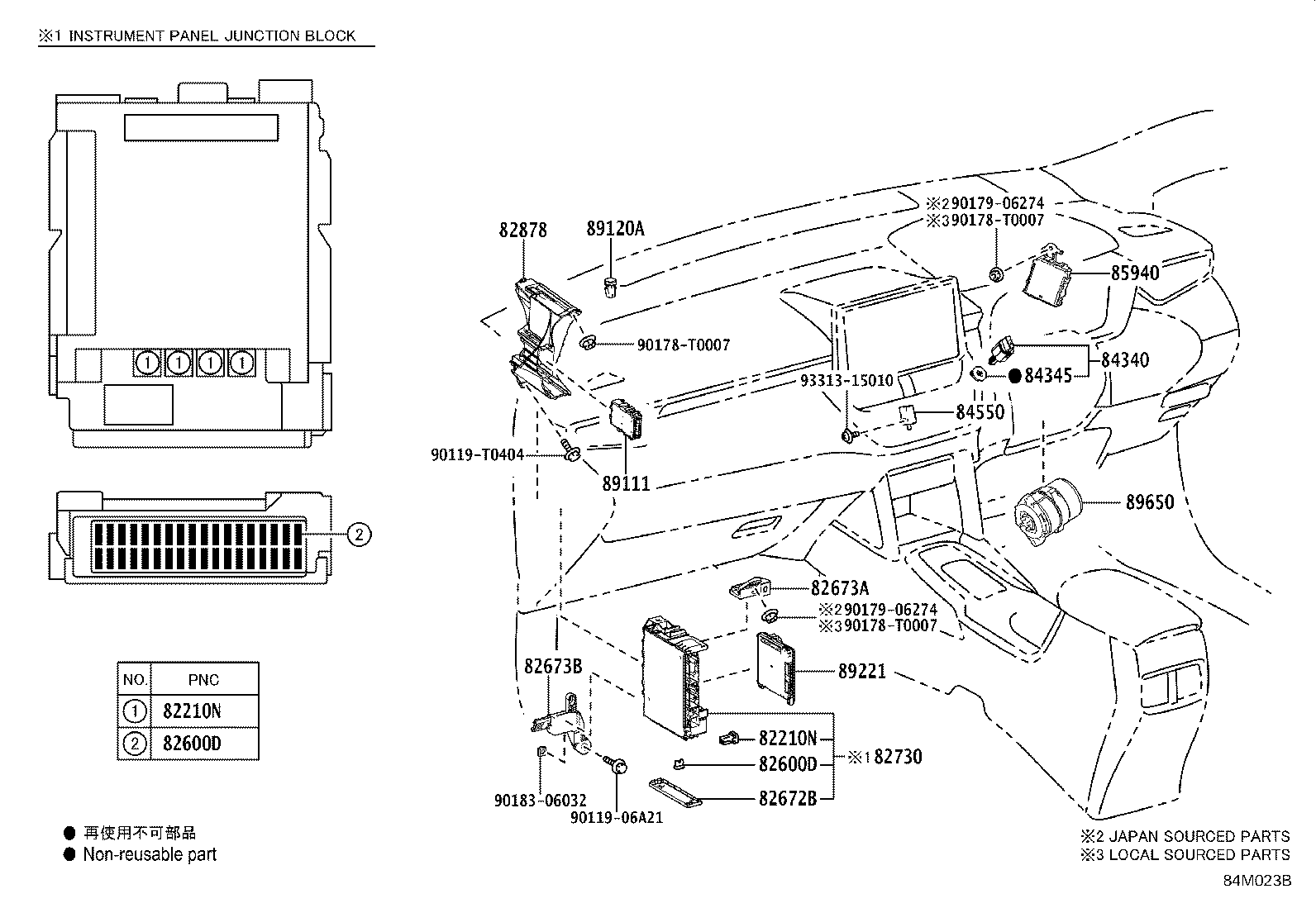

ILLUST NO. 4 OF 9(2007- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MXGA10,ZSG10,ZVG10 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MXGA10,ZSG10,ZVG10 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
MXGA10,ZSG10,ZVG10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
MXGA10,ZSG10,ZVG10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
MXGA10,ZSG10,ZVG10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
MXGA10,ZSG10,ZVG10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
MXGA10,ZSG10,ZVG10 10A,MINI FUSE,RED |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
MXGA10,ZSG10,ZVG10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
MXGA10,ZSG10,ZVG10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
MXGA10,ZSG10,ZVG10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
MXGA10,ZSG10,ZVG10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
MXGA10,ZSG10,ZVG10 10A,MINI FUSE,RED |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-0A010 |
ZSG10,ZVG10..THP,TWP |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-F4090 |
ZSG10,ZVG10..RHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-F4100 |
ZSG10,ZVG10..RHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0A060 |
ZSG10..J..GCC;ZVG10..(G,N)..GCC;ZSG10,ZVG10..THP..(GEN,IDN,MA,PH,TH) |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-F4020 |
ZSG10,ZVG10..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09380 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
ZSG10,ZVG10..THP,TWP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12230 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-02070 |
ZVG10..THP |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0A480 |
ZSG10,ZVG10..TH |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-16080 |
ZSG10,ZVG10..THP JTEKT/DENSO |
1 | ||
| 89650-16210 |
ZVG10..E..TH JTEKT/DENSO,GR SPORT |
1 | ||
| Common parts | ||||
| 90119-06A21 | ||||
| 90119-T0404 | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 93313-15010 | ||||
ILLUST NO. 2 OF 9(2007- )ZVG10
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-25010 |
2ZRFXE..ZVG10 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-37040 |
2ZRFXE..ZVG10 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90178-T0007 | ||||
| 90178-T0056 | ||||
| 90179-06274 | ||||
| 94151-80801 | ||||
ILLUST NO. 3 OF 9(2007- )ZVG10
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-T2001 |
2ZRFXE..ZVG10..THP (L) |
1 | ||
| 90987-02027 |
2ZRFXE..ZVG10..THP (J) |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
MXGA10,ZSG10,ZVG10 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
MXGA10,ZSG10,ZVG10 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08308 |
MXGA10,ZSG10,ZVG10 40A-30A-30A,FEMALE |
1 | ||
| 90982-08305 |
MXGA10,ZSG10,ZVG10 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08300 |
MXGA10,ZSG10,ZVG10 50A-30A-30A,FEMALE |
1 | ||
| 90982-08295 |
MXGA10,ZSG10,ZVG10 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
MXGA10,ZSG10,ZVG10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
MXGA10,ZSG10,ZVG10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
MXGA10,ZSG10,ZVG10 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
MXGA10,ZSG10,ZVG10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
MXGA10,ZSG10,ZVG10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
MXGA10,ZSG10,ZVG10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
MXGA10,ZSG10,ZVG10 25A,MINI FUSE |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-12420 |
ZVG10 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-47090 |
ZVG10 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-47070 |
ZVG10 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-12430 |
ZVG10 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-12410 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0A020 |
ZVG10..THP |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0A050 |
ZVG10..THP |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-47070 |
ZVG10 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-47090 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-12660 |
ZVG10 |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-T2001 |
ZSG10,ZVG10..THP..(E,G);ZSG10,ZVG10..N..(TH,VN) |
1 | ||
| 85910 - RELAY ASSY, CIRCUIT OPENING | ||||
| 90987-02027 |
ZSG10,ZVG10..THP (J) |
1 | ||
| 90987-T2001 |
ZSG10,ZVG10..THP (L) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-T2003 |
MXGA10..E,G;ZSG10..J..TAIW;ZSG10,ZVG10..E,G,L,M,N |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2001 |
MXGA10;ZSG10..E,M;ZSG10..G..GEN;ZVG10..N..GEN;ZVG10..(E,L,M)..TAIW;ZSG10..(G,N)..(GCC,MA,PH,VN);ZVG10..(E,G)..(AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN) (L) |
1 | ||
| 90987-02027 |
MXGA10;ZSG10..E,M;ZSG10..G..GEN;ZVG10..N..GEN;ZVG10..(E,L,M)..TAIW;ZSG10..(G,N)..(GCC,MA,PH,VN);ZVG10..(E,G)..(AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN) (J) |
1 | ||
| 85924C - RELAY, IGCT | ||||
| 90987-T2002 |
ZVG10 P/N LABEL=90987T2002 |
1 | ||
| 90987-02025 |
ZVG10 P/N LABEL=9098702025 |
1 | ||
| 90080-87030 |
ZVG10 P/N LABEL=9008087030 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZSG10,ZVG10 (J) |
1 | ||
| 90987-T2001 |
ZSG10,ZVG10 (L) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87009 |
ZVG10 (L) |
1 | ||
| 90987-04004 |
ZVG10 (J) |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ZVG10 (J) |
1 | ||
| 90987-T2001 |
ZVG10 (L) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2001 |
ZSG10,ZVG10..(THP,TWP)..(GCC,GEN,IDN,MA,PH,TAIW,TH) |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
MXGA10,ZSG10,ZVG10..AGT,BZ,GEN,IDN,PH,TAIW,TH,VN (J) |
1 | ||
| 90987-T2001 |
MXGA10,ZSG10,ZVG10..AGT,BZ,GEN,IDN,PH,TAIW,TH,VN (L) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
