ZVG10R-DHXEBT (2020)
Toyota Corolla Cross
Production
Jul 2020
-
Sep 9999
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

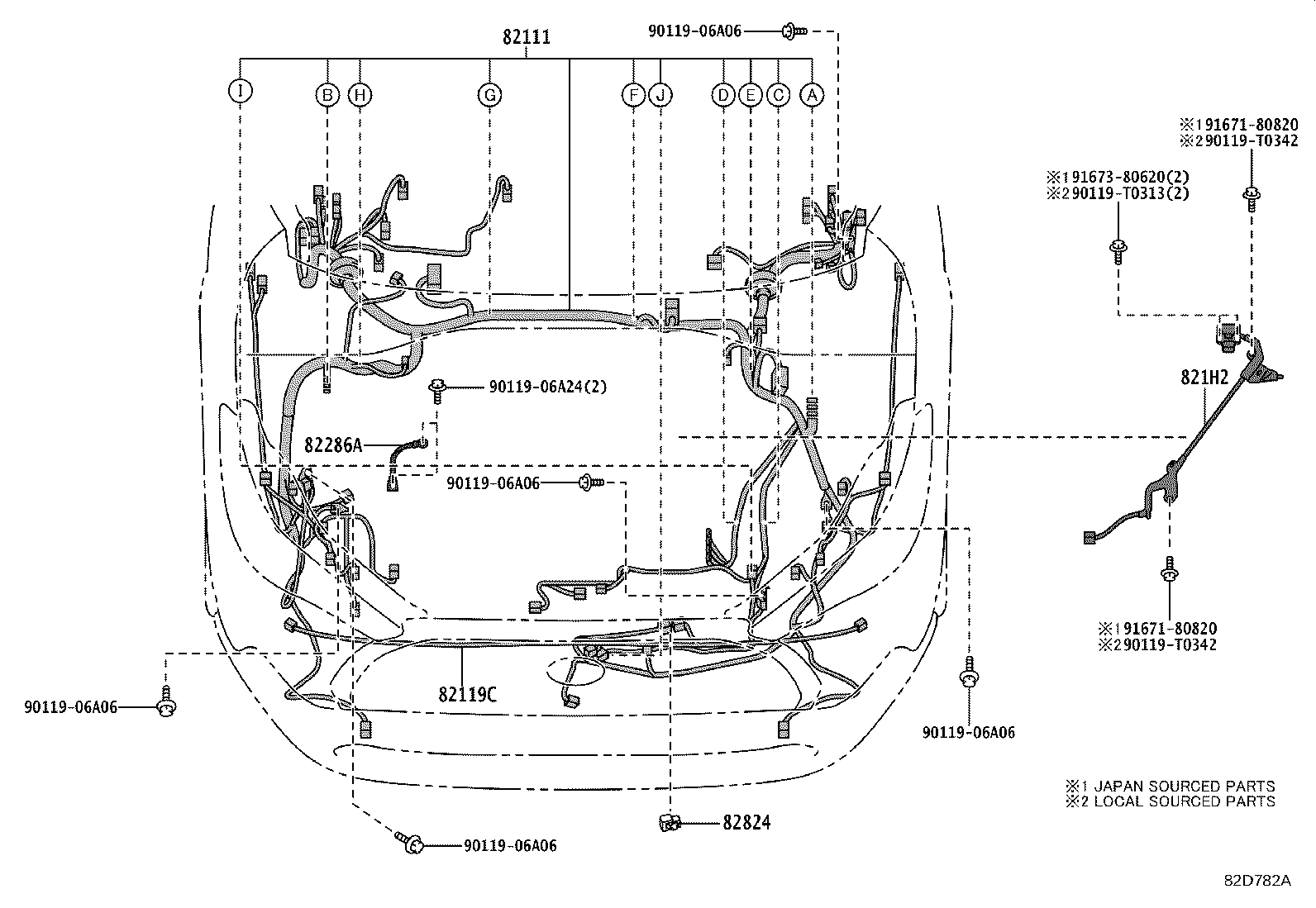

ILLUST NO. 1 OF13(2007- )ZVG10..RHD
Click highlighted areas on diagram
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0A160 |
ZVG10..G..TH;ZVG10..RHD..(E,G)..GEN |
1 | ||
| 82111-0A150 |
ZVG10..E..TH |
1 | ||
| 82111-0A161 |
ZVG10..E..TH ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82111-0A161 |
ZVG10..G..TH;ZVG10..RHD..(E,G)..GEN |
1 | ||
| 821H2 - WIRE, HV AIR CONDITIONER | ||||
| 821H2-47010 |
ZVG10 |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-F4040 |
ZSG10,ZVG10..THP |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-76140 |
ZVG10..E..TH GR SPORT |
1 | ||
| 82824-76140 |
MXGA10..E;ZSG10..PH;ZVG10..E..TH;ZVG10..G..(AGT,TH);ZSG10..LHD..G..GEN;ZSG10..RHD..E..(GEN,IDN) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A24 | ||||
| 90119-T0313 | ||||
| 90119-T0342 | ||||
| 91671-80820 | ||||
| 91673-80620 | ||||

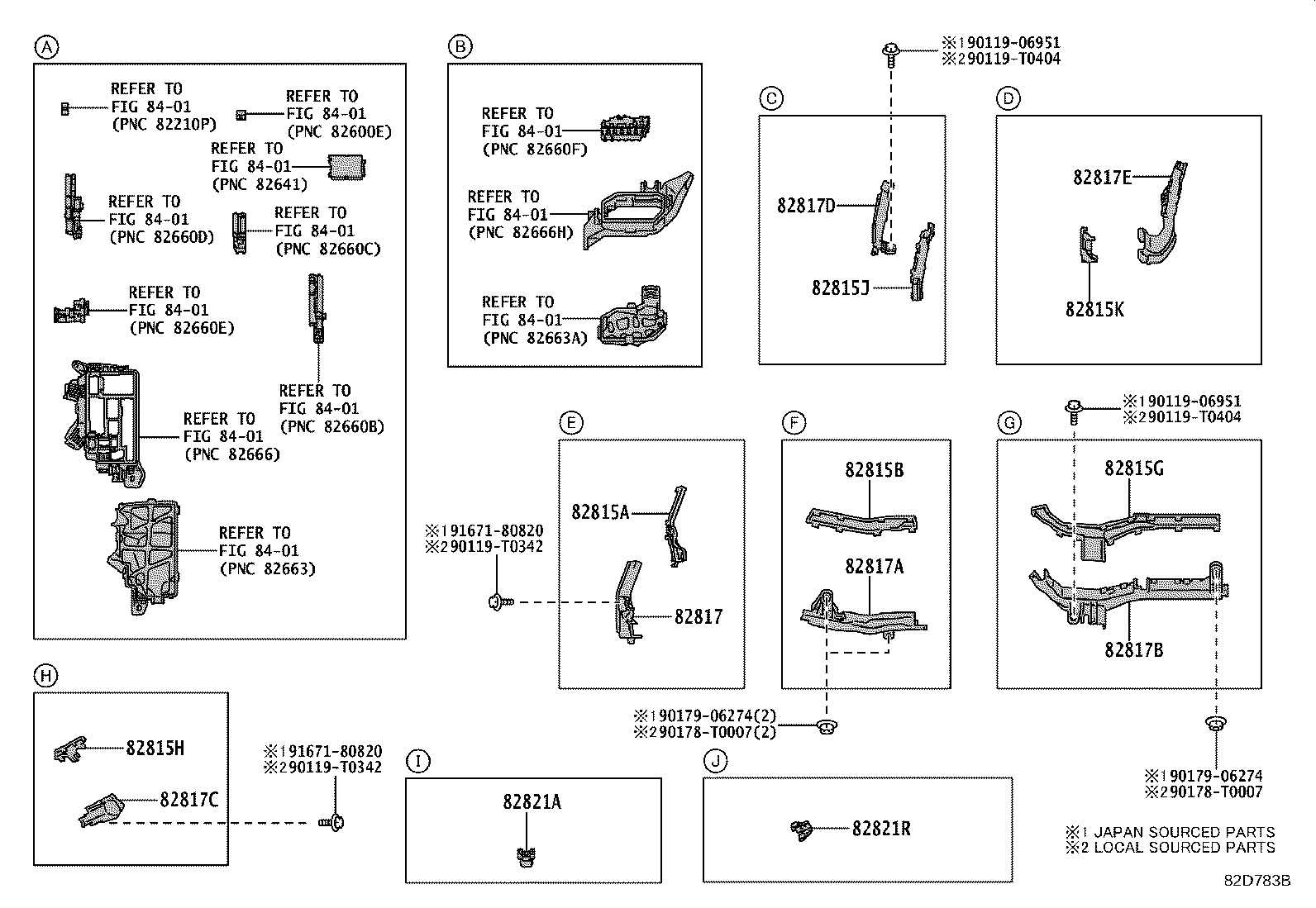

ILLUST NO. 2 OF13(2007- )ZVG10..RHD
Click highlighted areas on diagram
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47C90 |
ZVG10..RHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47D00 |
ZVG10..RHD |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-47D30 |
ZVG10..RHD |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-47D40 |
ZVG10..RHD |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-47880 |
ZVG10 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-47C20 |
ZVG10 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-47N60 |
ZVG10..RHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47N70 |
ZVG10..RHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47P00 |
ZVG10..RHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47P10 |
ZVG10..RHD |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47N30 |
ZVG10 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-47N40 |
ZVG10 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-30650 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 82821R - COVER, CONNECTOR | ||||
| 82821-78050 |
ZVG10 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-T0342 | ||||
| 90119-T0404 | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF13(2007- )ZVG10
Click highlighted areas on diagram
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0A120 |
ZVG10..THP |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02C20 |
ZVG10..THP |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02120 |
ZSG10,ZVG10 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47S30 |
ZVG10 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47S40 |
ZVG10 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-47330 |
ZVG10..BZ;ZVG10..THP,TWP |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-47420 |
ZVG10..BZ;ZVG10..THP,TWP |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-47430 |
ZVG10..BZ;ZVG10..THP,TWP |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-47050 |
ZVG10 |
1 | ||
| G921D - PROTECTOR, INVERTER CONNECTOR COVER | ||||
| G921D-47020 |
ZVG10 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-T0134 | ||||
| 90119-T0313 | ||||
| 90119-T0314 | ||||
| 90119-T0342 | ||||
| 90178-T0018 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 91673-80816 | ||||
| 94151-80600 | ||||
ILLUST NO. 4 OF13(2007- )ZVG10
Click highlighted areas on diagram
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-47020 |
ZVG10 |
1 | ||
| 82661E - COVER, RELAY BLOCK, SIDE NO.2 | ||||
| 82661-47030 |
ZVG10 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-12M00 |
ZVG10 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-47D80 |
ZVG10 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-47E00 |
ZVG10 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-47E10 |
ZVG10 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-47E20 |
ZVG10 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-47E30 |
ZVG10 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-47E40 |
ZVG10..THP |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-47E50 |
ZVG10 |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-F4070 |
ZVG10..THP,TWP |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-12M10 |
ZVG10 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-1A880 |
ZVG10 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-1A890 |
ZVG10 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-47L20 |
ZVG10 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-47P50 |
ZVG10 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-47P70 |
ZVG10 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-47P90 |
ZVG10 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-47Q00 |
ZVG10 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47Q10 |
ZVG10 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47Q20 |
ZVG10 |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-F4080 |
ZVG10..THP,TWP |
1 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||

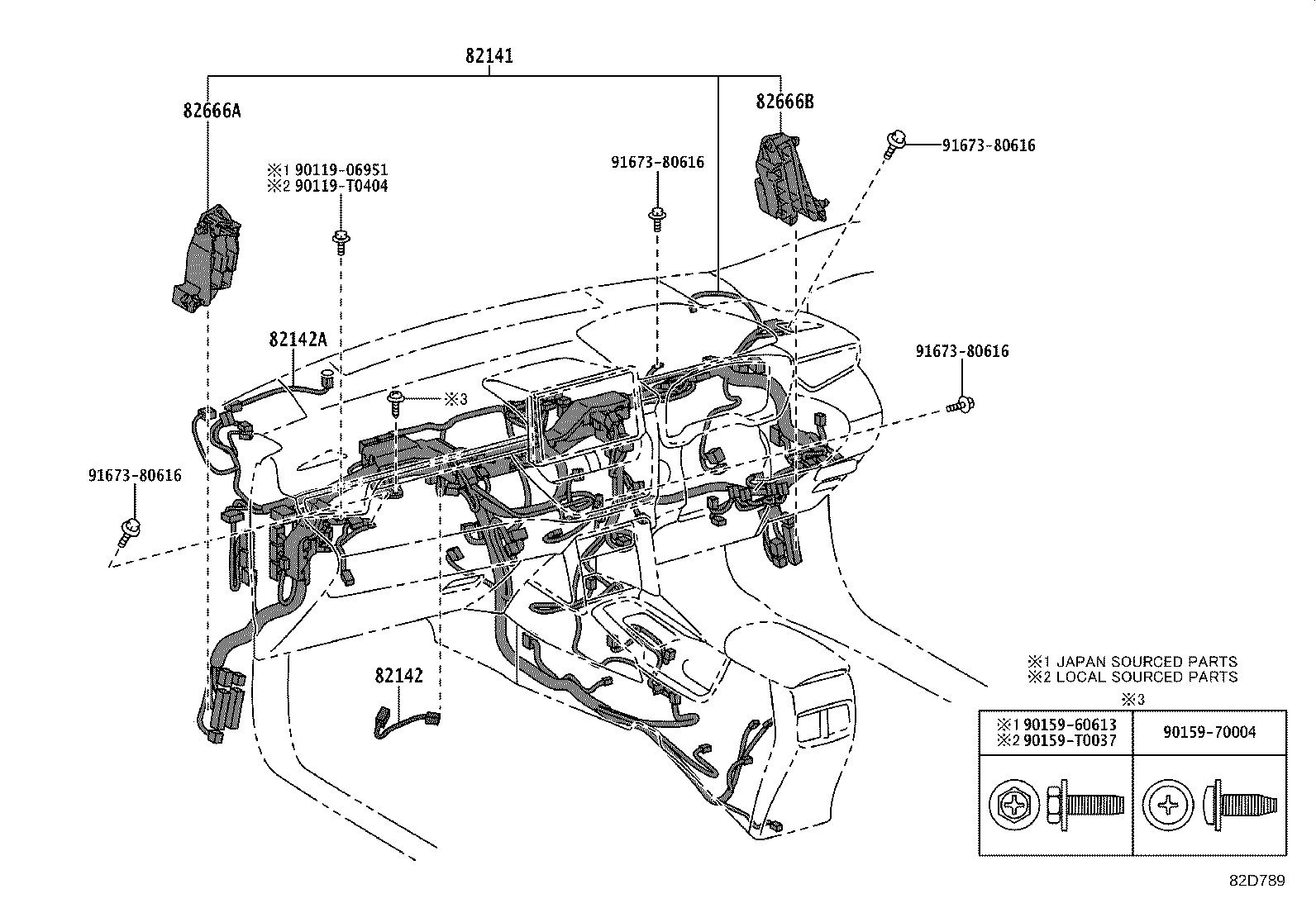

ILLUST NO. 5 OF13(2007- )RHD
Click highlighted areas on diagram
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0A190 |
ZVG10..(G,N)..TH |
1 | ||
| 82141-0A260 |
ZVG10..E..TH |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02590 |
ZSG10,ZVG10..THP |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-0A010 |
ZSG10,ZVG10..THP |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12670 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12680 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90159-T0037 | ||||
| 91673-80616 | ||||
ILLUST NO. 6 OF13(2007- )
Click highlighted areas on diagram
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0A080 |
ZVG10..(E,G)..(MA,TH) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0A080 |
ZVG10..(E,G)..(MA,TH) |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-0A040 |
ZSG10,ZVG10..THP |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-0A010 |
ZSG10,ZVG10..THP |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0A010 |
ZVG10..G..TH |
1 | ||
| 82184-0A030 |
ZSG10,ZVG10..E..(MA,TH) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-0A010 |
ZSG10,ZVG10..THP |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-0A030 |
ZSG10,ZVG10..THP |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-10350 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91673-80616 | ||||
ILLUST NO. 7 OF13(2007- )
Click highlighted areas on diagram
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0A120 |
ZVG10..(E,G)..(MA,TH) |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-0A050 |
ZVG10..(E,G)..(IDN,TH) |
1 | ||
| 8216B - WIRE, FLOOR NO.8 | ||||
| 8216B-0A040 |
ZVG10..(E,G)..TH |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0A030 |
ZVG10..THP..G |
1 | ||
| 82171-0A110 |
ZSG10,ZVG10..E..(TH,VN) |
1 | ||
| 82171-0A060 |
ZSG10,ZVG10..E..(TH,VN) ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-22070 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60220 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-52A60 |
ZVG10 |
2 | ||
| 82821N - COVER, CONNECTOR | ||||
| 90980-12212 |
MXGA10..(G,N)..GEN;ZVG10..G..(GCC,IDN,TH);ZSG10,ZVG10..(J,N)..GCC |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-0A100 |
ZSG10..GEN,PH,VN;ZVG10..(THP,TWP)..(GCC,GEN,TH,VN) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||
| 8504 | ||||
| 8601 | ||||
ILLUST NO. 8 OF13(2007- )ZVG10
Click highlighted areas on diagram
HIGH TENSION CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-16020 |
ZVG10..RHD |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-47410 |
ZVG10..RHD |
1 | ||
| 82712B - SUPPORT, WIRING HARNESS | ||||
| 82712-47530 |
ZVG10 |
3 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| 90178-06026 | ||||
| 91673-80620 | ||||
ILLUST NO. 9 OF13(2007- )
Click highlighted areas on diagram
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-0A010 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) |
1 | ||
| 82191-0A010 |
ZVG10..E..TH GR SPORT |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-0A010 |
ZVG10..E..TH GR SPORT |
1 | ||
| 8219A-0A010 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) |
1 | ||
ILLUST NO.10 OF13(2007- )
Click highlighted areas on diagram
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 12631-37010 | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82715-02K20 | ||||
| 82715-02K40 | ||||
| 82715-02K50 | ||||
| 82715-0A030 | ||||
| 82715-0Z570 | ||||
| 82715-0Z580 | ||||
| 82715-0Z590 | ||||
| 82715-0Z610 | ||||
| 82715-0Z620 | ||||
| 82715-0ZA50 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12S30 | ||||
| 82715-12U10 | ||||
| 82715-12U20 | ||||
| 82715-12U50 | ||||
| 82715-12U60 | ||||
| 82715-12U90 | ||||
| 82715-12W00 | ||||
| 82715-12W20 | ||||
| 82715-47740 | ||||
| 82715-47750 | ||||
| 82715-47770 | ||||
| 82715-47790 | ||||
| 82715-47830 | ||||
| 82715-47850 | ||||
| 82715-47860 | ||||
| 82715-47A00 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 90119-06A12 | ||||
| 90119-T0134 | ||||
| 90119-T0136 | ||||
| 90119-T0237 | ||||
| 90119-T0260 | ||||
| 90119-T0313 | ||||
| 90119-T0314 | ||||
| 90178-T0007 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 91673-80625 | ||||
| 91673-80816 | ||||
ILLUST NO.11 OF13(2007- )
Click highlighted areas on diagram
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-10340 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-76790 | ||||
| 89348-50050 | ||||
| 90119-T0287 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5804 | ||||
ILLUST NO.12 OF13(2007- )
Click highlighted areas on diagram
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10825 | ||||
| 90980-10908 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11436 | ||||
| 90980-11660 | ||||
| 90980-12382 | ||||
| 90980-12E29 | ||||
| 90980-12E81 | ||||
| 90980-12E99 | ||||
| 90980-12F30 | ||||
ILLUST NO.13 OF13(2007- )
Click highlighted areas on diagram
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11246 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12B01 | ||||
| 90980-12C39 | ||||
| 90980-12D25 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
