ZVG10R-DHXEBT (2020)

Toyota Corolla Cross

Production Jul 2020 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

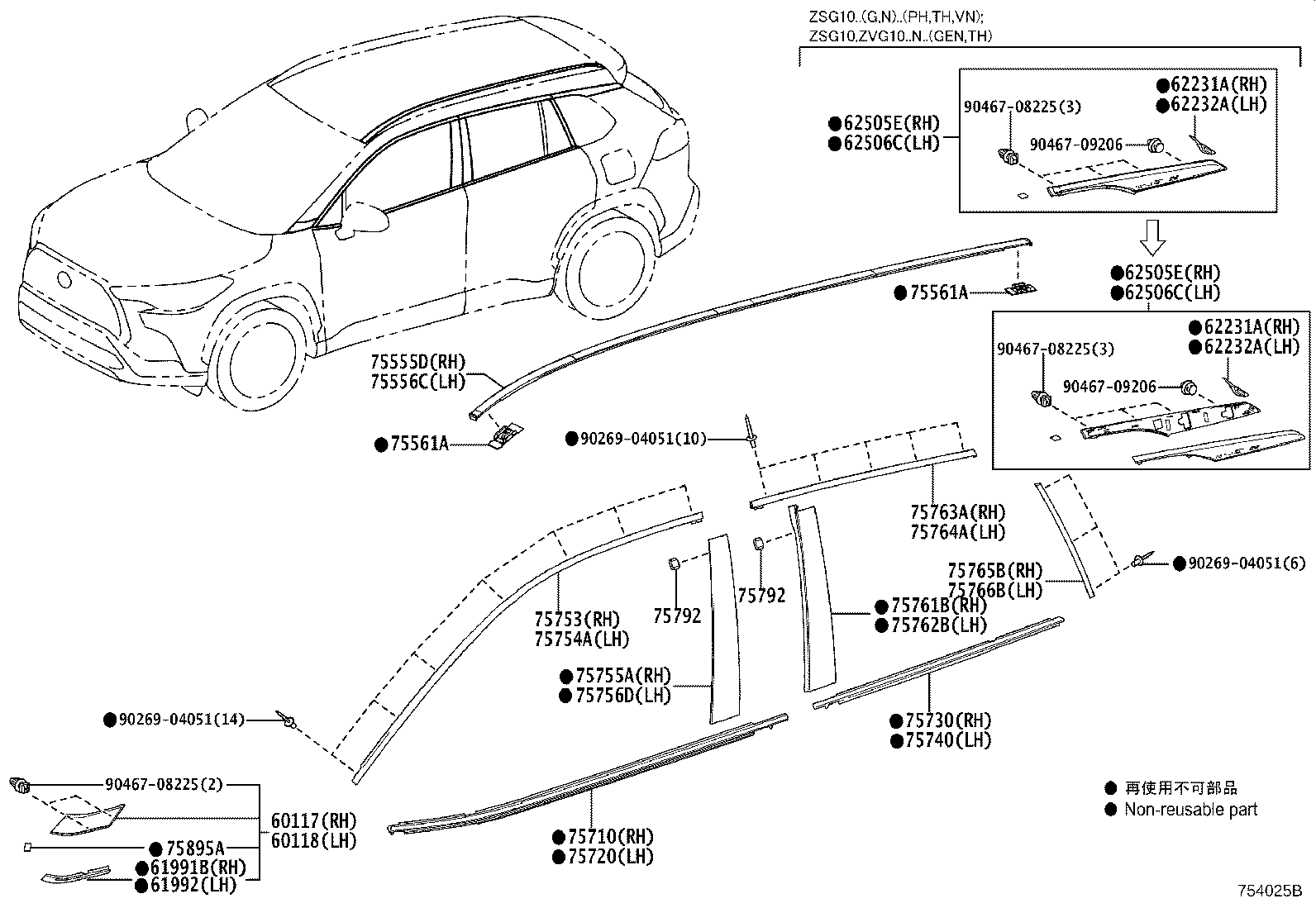

ILLUST NO. 1 OF 2(2007- )THP

Click highlighted areas on diagram

diagram 60117 60118 61991B 61992 62231A 62231A 62232A 62232A 62505E 62505E 62506C 62506C 75555D 75556C 75561A 75561A 75710 75720 75730 75740 75753 75754A 75755A 75756D 75761B 75762B 75763A 75764A 75765B 75766B 75792 75792 75895A 9026904051 9026904051 9026904051 9046708225 9046708225 9046708225 9046709206 9046709206
Part # Description Qty Price
60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH
60117-0A010

ZSG10,ZVG10..THP

 1
60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH
60118-0A010

ZSG10,ZVG10..THP

 1
61991B - PROTECTOR, FRONT PILLAR COVER, RH
61991-0A010

ZSG10,ZVG10..THP

 1
61992 - PROTECTOR, FRONT PILLAR COVER, LH
61992-0A010

ZSG10,ZVG10..THP

 1
62231A - PAD, QUARTER PILLAR, RH
62523-0A010

MXGA10..E..GEN;ZVG10..(BZP,THP)..E;ZVG10..G..(BZ,GEN,IDN,TH);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
62231A - PAD, QUARTER PILLAR, RH
62523-0A010

MXGA10..E..GEN;ZVG10..(BZP,THP)..E;ZVG10..G..(BZ,GEN,IDN,TH);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
62232A - PAD, QUARTER PILLAR, LH
62524-0A010

MXGA10..E..GEN;ZVG10..(BZP,THP)..E;ZVG10..G..(BZ,GEN,IDN,TH);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
62232A - PAD, QUARTER PILLAR, LH
62524-0A010

MXGA10..E..GEN;ZVG10..(BZP,THP)..E;ZVG10..G..(BZ,GEN,IDN,TH);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
62505E - COVER SUB-ASSY, QUARTER PILLAR, RH
62505-0A010

ZVG10..THP..(E,G);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
62505E - COVER SUB-ASSY, QUARTER PILLAR, RH
62505-0A010

ZVG10..THP..(E,G);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
62506C - COVER SUB-ASSY, QUARTER PILLAR, LH
62506-0A010

ZVG10..THP..(E,G);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
62506C - COVER SUB-ASSY, QUARTER PILLAR, LH
62506-0A010

ZVG10..THP..(E,G);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-0A020

ZSG10..E..MA;ZVG10..IDN,MA,PH;ZSG10,ZVG10..THP..(G,N)..(GEN,MA,PH,TH,VN)

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-0A020

ZSG10..E..MA;ZVG10..IDN,MA,PH;ZSG10,ZVG10..THP..(G,N)..(GEN,MA,PH,TH,VN)

 1
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-0A050

ZVG10..L,M;ZVG10..IDN,MA,PH;ZSG10..(E,J,N)..(GCC,MA);ZVG10..(THP,TWP)..(G,N)..(GCC,GEN,TH);ZSG10..(G,J,M,N)..(GEN,MA,PH,TAIW,TH,VN)

 1
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-0A050

ZVG10..L,M;ZVG10..IDN,MA,PH;ZSG10..(E,J,N)..(GCC,MA);ZVG10..(THP,TWP)..(G,N)..(GCC,GEN,TH);ZSG10..(G,J,M,N)..(GEN,MA,PH,TAIW,TH,VN)

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-0A030

ZSG10,ZVG10..THP

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-0A030

ZSG10,ZVG10..THP

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-0A030

ZSG10,ZVG10..THP

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-0A030

ZSG10,ZVG10..THP

 1
75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75753-0A020

ZVG10..THP..(E,G);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75754-0A020

ZVG10..THP..(E,G);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
75755A - MOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SID
75755-0A010

ZSG10,ZVG10..THP

 1
75756D - MOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SID
75756-0A010

ZSG10,ZVG10..THP

 1
75761B - MOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE
75761-0A010

ZSG10,ZVG10..THP

 1
75762B - MOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE
75762-0A010

ZSG10,ZVG10..THP

 1
75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75763-0A020

ZVG10..THP..(E,G);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75764-0A020

ZVG10..THP..(E,G);ZSG10..(E,G)..(GEN,IDN,MA,VN)

 1
75765B - MOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)
75765-0A010

ZSG10,ZVG10..THP

 1
75766B - MOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)
75766-0A010

ZSG10,ZVG10..THP

 1
75792 - CLIP, DOOR WINDOW FRAME MOULDING
75792-0D020

ZSG10,ZVG10..THP,TWP

 4
75792 - CLIP, DOOR WINDOW FRAME MOULDING
75792-0D020

ZSG10,ZVG10..THP,TWP

 4
75895A - TAPE, MOULDING, NO.1
75895-0A010

ZSG10,ZVG10..THP

 2
Common parts
90269-04051
90467-08225
90467-09206

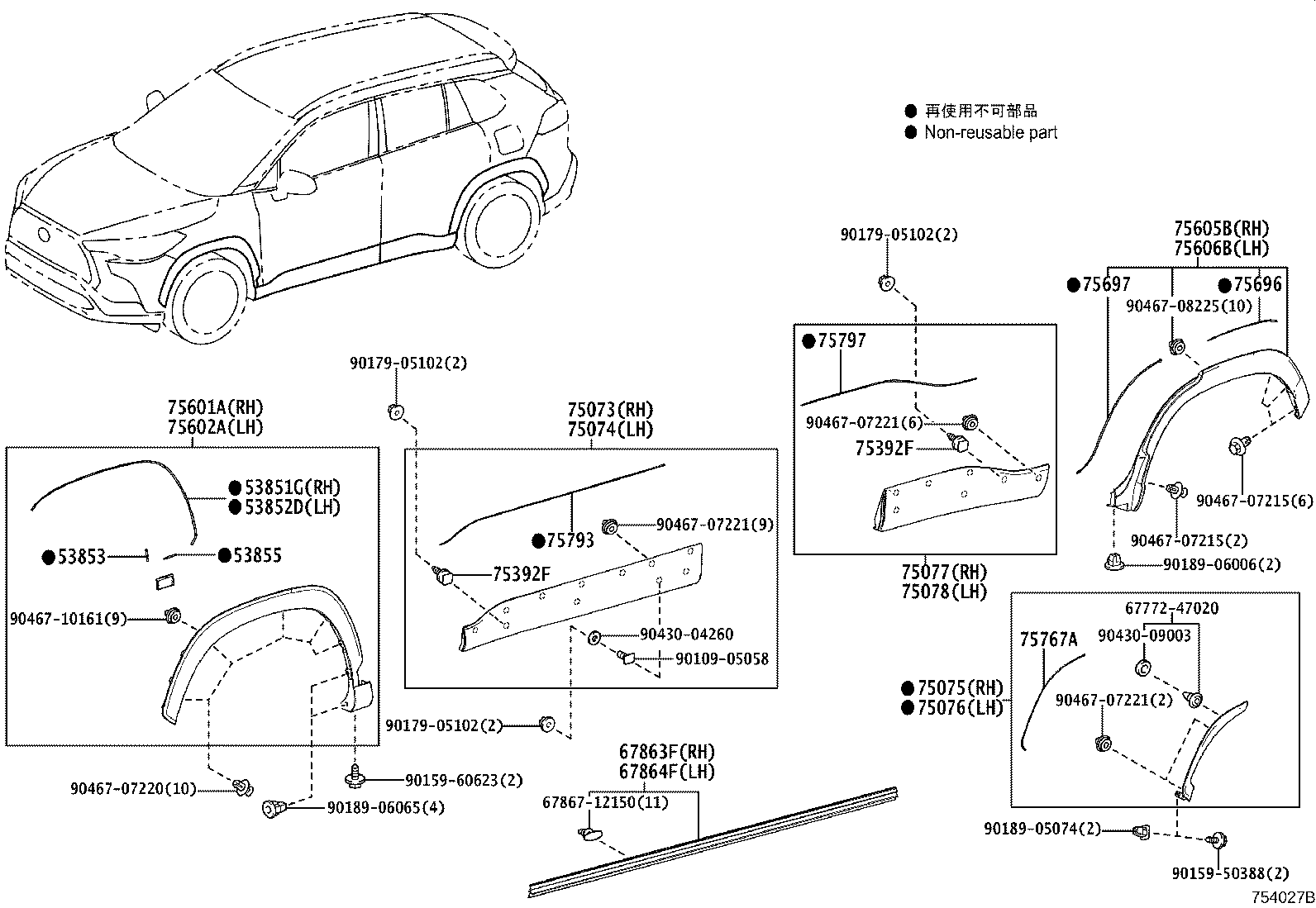

ILLUST NO. 2 OF 2(2007- )THP

Click highlighted areas on diagram

diagram 53851G 53852D 53853 53855 6777247020 67863F 67864F 6786712150 75073 75074 75075 75076 75077 75078 75392F 75392F 75601A 75602A 75605B 75606B 75696 75697 75767A 75793 75797 9010905058 9015950388 9015960623 9017905102 9017905102 9017905102 9018905074 9018906006 9018906065 9043004260 9043009003 9046707215 9046707215 9046707220 9046707221 9046707221 9046707221 9046708225 9046710161
Part # Description Qty Price
53851G - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-0A060

ZSG10,ZVG10..THP

 1
53852D - PAD, FRONT WHEEL OPENING EXTENSION, LH
53851-0A060

ZSG10,ZVG10..THP

 1
53853 - PAD, FRONT WHEEL OPENING EXTENSION, NO.3
53853-0A060

ZSG10,ZVG10..THP

 2
53855 - PAD, FRONT WHEEL OPENING EXTENSION, NO.3
53855-0A010

ZSG10,ZVG10..THP

 2
67863F - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-0A010

ZSG10,ZVG10..THP

 1
67864F - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67863-0A010

ZSG10,ZVG10..THP

 1
75073 - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER RH
75073-0A010

ZSG10,ZVG10..THP

 1
75073-0A010

ZSG10..E..VN;ZVG10..E..(PH,TH)

GR SPORT

 1
75074 - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER LH
75074-0A010

ZSG10,ZVG10..THP

 1
75074-0A010

ZSG10..E..VN;ZVG10..E..(PH,TH)

GR SPORT

 1
75075 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75075-0A010

ZSG10,ZVG10..THP

 1
75076 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75076-0A010

ZSG10,ZVG10..THP

 1
75077 - MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH
75077-0A010

ZSG10,ZVG10..THP

NO PAINT REQ.

 1
75077-0A010

ZSG10..E..VN;ZVG10..E..(PH,TH)

NO PAINT REQ.,GR SPORT

 1
75078 - MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH
75078-0A010

ZSG10..E..VN;ZVG10..E..(PH,TH)

NO PAINT REQ.,GR SPORT

 1
75078-0A010

ZSG10,ZVG10..THP

NO PAINT REQ.

 1
75392F - RETAINER, OUTSIDE MOULDING
75392-33020

MXGA10,ZSG10,ZVG10

 4
75392F - RETAINER, OUTSIDE MOULDING
75392-33020

MXGA10,ZSG10,ZVG10

 4
75601A - MOULDING SUB-ASSY, FRONT FENDER, RH
75601-0A010

ZSG10,ZVG10..THP

NO PAINT REQ.

 1
75602A - MOULDING SUB-ASSY, FRONT FENDER, LH
75602-0A010

ZSG10,ZVG10..THP

NO PAINT REQ.

 1
75605B - MOULDING SUB-ASSY, QUARTER OUTSIDE, RH
75605-0A010

ZSG10,ZVG10..THP

NO PAINT REQ.

 1
75606B - MOULDING SUB-ASSY, QUATER OUTSIDE, LH
75606-0A010

ZSG10,ZVG10..THP

NO PAINT REQ.

 1
75696 - PAD, BODY OUTSIDE MOULDING, NO.1
75696-0A010

ZSG10,ZVG10..THP

 2
75697 - PAD, BODY OUTSIDE MOULDING, NO.2
75697-0A010

ZSG10,ZVG10..THP

 2
75767A - PAD, REAR DOOR MOULDING, NO.1
75767-0A010

ZSG10,ZVG10..THP

 2
75793 - PAD, FRONT DOOR OUTSIDE MOULDING, UPPER
75793-0A010

ZSG10..E..VN;ZVG10..E..(PH,TH)

GR SPORT

 2
75793-0A010

ZSG10,ZVG10..THP

 2
75797 - PAD, REAR DOOR OUTSIDE MOULDING, UPPER
75797-0A010

ZSG10,ZVG10..THP

 2
75797-0A010

ZSG10..E..VN;ZVG10..E..(PH,TH)

GR SPORT

 2
Common parts
67772-47020
67867-12150
90109-05058
90159-50388
90159-60623
90179-05102
90189-05074
90189-06006
90189-06065
90430-04260
90430-09003
90467-07215
90467-07220
90467-07221
90467-08225
90467-10161
