ZVG10R-DHXEBT (2020)
Toyota Corolla Cross

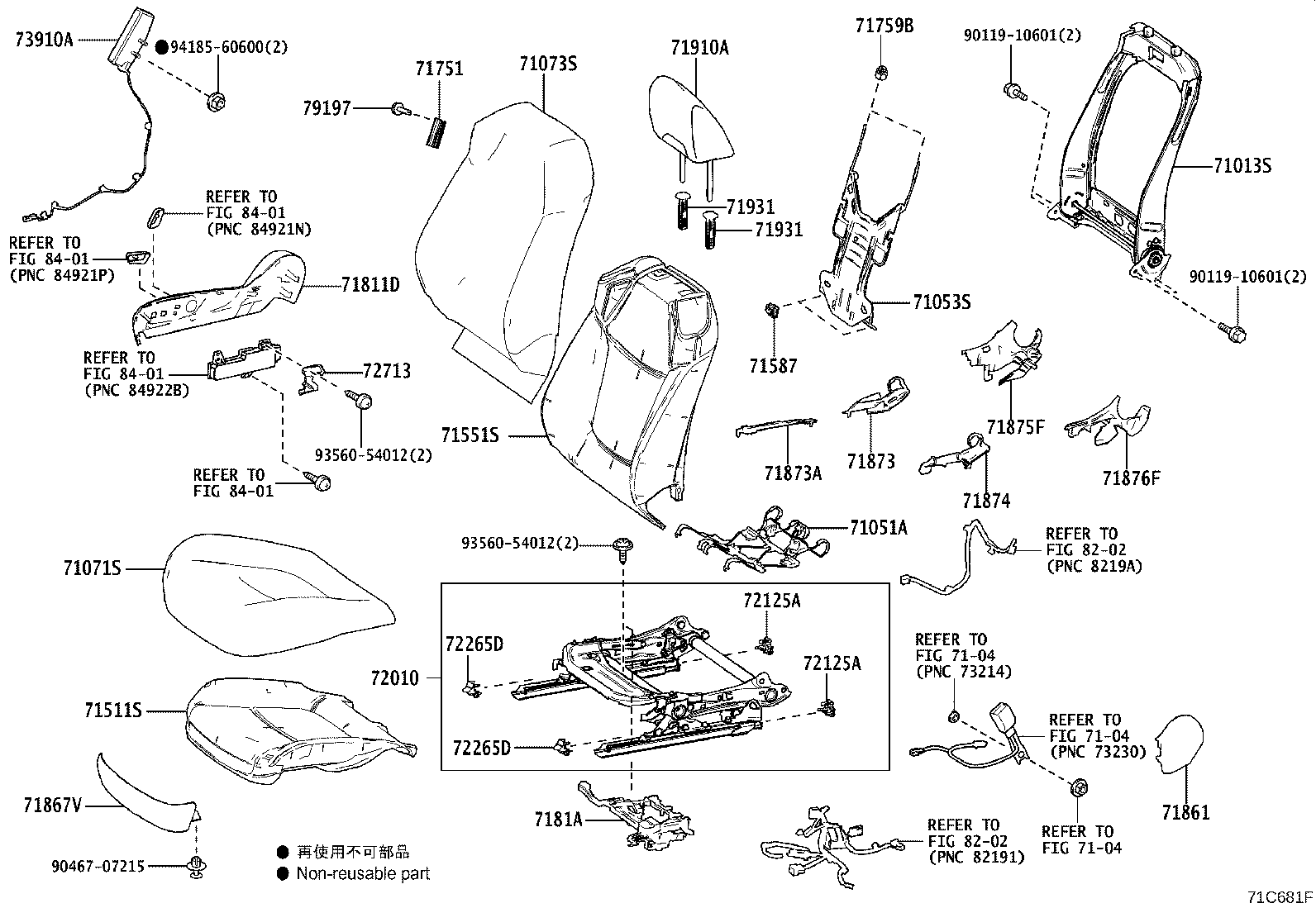

ILLUST NO. 1 OF 3(2007- )RHD
DRIVER SIDE,POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-06581 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) |
1 | ||
| 71013-06581 |
ZVG10..E..TH GR SPORT |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-06120 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 71051-06120 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-06160 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 71053-06160 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0A220C1 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) BLACK,TRIM2# |
1 | ||
| 71071-0A220C1 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2# |
1 | ||
| 71071-0A220D0 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) TERRA ROSSA,TRIM3# |
1 | ||
| 71071-0A220D0 |
ZVG10..E..TH GR SPORT,TERRA ROSSA,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0A350C1 |
ZVG10..RHD..E;ZSG10..RHD..(E,G);ZVG10..(G,N)..(IDN,TH) BLACK,TRIM2# |
1 | ||
| 71073-0A350C1 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2# |
1 | ||
| 71073-0A350D1 |
ZVG10..E..TH GR SPORT,TERRA ROSSA,TRIM3# |
1 | ||
| 71073-0A350D1 |
ZVG10..RHD..E;ZSG10..RHD..(E,G);ZVG10..(G,N)..(IDN,TH) TERRA ROSSA,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0A040 |
ZVG10..E..TH GR SPORT |
1 | ||
| 71511-0A040 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0A080 |
ZVG10..THP..E;ZSG10..THP..(E,G);ZSG10..LHD..THP..N;ZVG10..(G,N)..(IDN,TH) |
1 | ||
| 71551-0A080 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-F4030 |
ZSG10,ZVG10..THP |
4 | ||
| 71587-F4030 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
4 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-0K070 |
ZVG10..THP..E;ZSG10..THP..(E,G);ZSG10..LHD..THP..N;ZVG10..(G,N)..(IDN,TH) |
2 | ||
| 71751-0K070 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
2 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0K060 |
ZSG10,ZVG10..THP |
4 | ||
| 71759-0K060 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-06600C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 71811-06600C0 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) BLACK,TRIM2#,3# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-06030 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) |
1 | ||
| 7181A-06030 |
ZVG10..E..TH GR SPORT |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-06350C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 71861-06350C0 |
ZSG10,ZVG10..RHD BLACK,TRIM2#,3# |
1 | ||
| 71867V - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-06190C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 71867-06190C0 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) BLACK,TRIM2#,3# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06430 |
ZVG10..E..TH GR SPORT |
1 | ||
| 71873-06430 |
ZSG10,ZVG10..RHD |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-06550 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) |
1 | ||
| 71873-06550 |
ZVG10..E..TH GR SPORT |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-06620 |
ZVG10..E..TH GR SPORT |
1 | ||
| 71873-06620 |
ZSG10,ZVG10..RHD |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-06410C0 |
ZSG10,ZVG10..RHD BLACK,TRIM2#,3# |
1 | ||
| 71875-06410C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-06420C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 71875-06420C0 |
ZSG10,ZVG10..RHD BLACK,TRIM2#,3# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0A290C0 |
ZSG10,ZVG10..THP..(E,G);ZSG10,ZVG10..N..(TH,VN) BLACK,TRIM2# |
2 | ||
| 71910-0A290D0 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT,TERRA ROSSA,TRIM3# |
2 | ||
| 71910-0A290C0 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT,BLACK,TRIM2# |
2 | ||
| 71910-0A290D0 |
ZSG10,ZVG10..THP..(E,G);ZSG10,ZVG10..N..(TH,VN) TERRA ROSSA,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C1 |
ZSG10,ZVG10..THP,TWP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050C1 |
ZSG10..E..VN;ZVG10..E..(PH,TH) W(LOCK),GR SPORT,BLACK,TRIM2# |
2 | ||
| 71931-0K040D0 |
ZSG10,ZVG10..(THP,TWP)..(E,G,J,N) W/O(LOCK),TERRA ROSSA,TRIM3# |
2 | ||
| 71931-0K040C1 |
ZSG10,ZVG10..THP,TWP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050D0 |
ZSG10..E..VN;ZVG10..E..(PH,TH) W(LOCK),GR SPORT,TERRA ROSSA,TRIM3# |
2 | ||
| 71930-0K050D0 |
ZSG10,ZVG10..(THP,TWP)..(E,G,J,N) W(LOCK),TERRA ROSSA,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C1 |
ZSG10,ZVG10..THP,TWP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050C1 |
ZSG10..E..VN;ZVG10..E..(PH,TH) W(LOCK),GR SPORT,BLACK,TRIM2# |
2 | ||
| 71931-0K040D0 |
ZSG10,ZVG10..(THP,TWP)..(E,G,J,N) W/O(LOCK),TERRA ROSSA,TRIM3# |
2 | ||
| 71931-0K040C1 |
ZSG10,ZVG10..THP,TWP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050D0 |
ZSG10..E..VN;ZVG10..E..(PH,TH) W(LOCK),GR SPORT,TERRA ROSSA,TRIM3# |
2 | ||
| 71930-0K050D0 |
ZSG10,ZVG10..(THP,TWP)..(E,G,J,N) W(LOCK),TERRA ROSSA,TRIM3# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-06440 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) |
1 | ||
| 72010-06440 |
ZVG10..E..TH GR SPORT |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-06090 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) LH SEAT |
2 | ||
| 72125-06100 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) RH SEAT |
2 | ||
| 72125-06100 |
ZVG10..E..TH GR SPORT,RH SEAT |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-06090 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) LH SEAT |
2 | ||
| 72125-06100 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) RH SEAT |
2 | ||
| 72125-06100 |
ZVG10..E..TH GR SPORT,RH SEAT |
2 | ||
| 72265D - COVER, SEAT TRACK UPPER RAIL | ||||
| 72265-06040 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) RH SEAT |
2 | ||
| 72265-06040 |
ZVG10..E..TH GR SPORT,RH SEAT |
2 | ||
| 72265-06060 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) LH SEAT |
2 | ||
| 72265D - COVER, SEAT TRACK UPPER RAIL | ||||
| 72265-06040 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) RH SEAT |
2 | ||
| 72265-06040 |
ZVG10..E..TH GR SPORT,RH SEAT |
2 | ||
| 72265-06060 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) LH SEAT |
2 | ||
| 72713 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH | ||||
| 72713-06020 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) |
1 | ||
| 72713-06020 |
ZVG10..E..TH GR SPORT |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-02270 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 73910-02270 |
ZVG10..THP..E;ZSG10..THP..(E,G);ZSG10..LHD..THP..N;ZVG10..(G,N)..(IDN,TH) |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-0K010 |
ZVG10..THP..E;ZSG10..THP..(E,G);ZSG10..LHD..THP..N;ZVG10..(G,N)..(IDN,TH) |
2 | ||
| 79197-0K010 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
2 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90467-07215 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

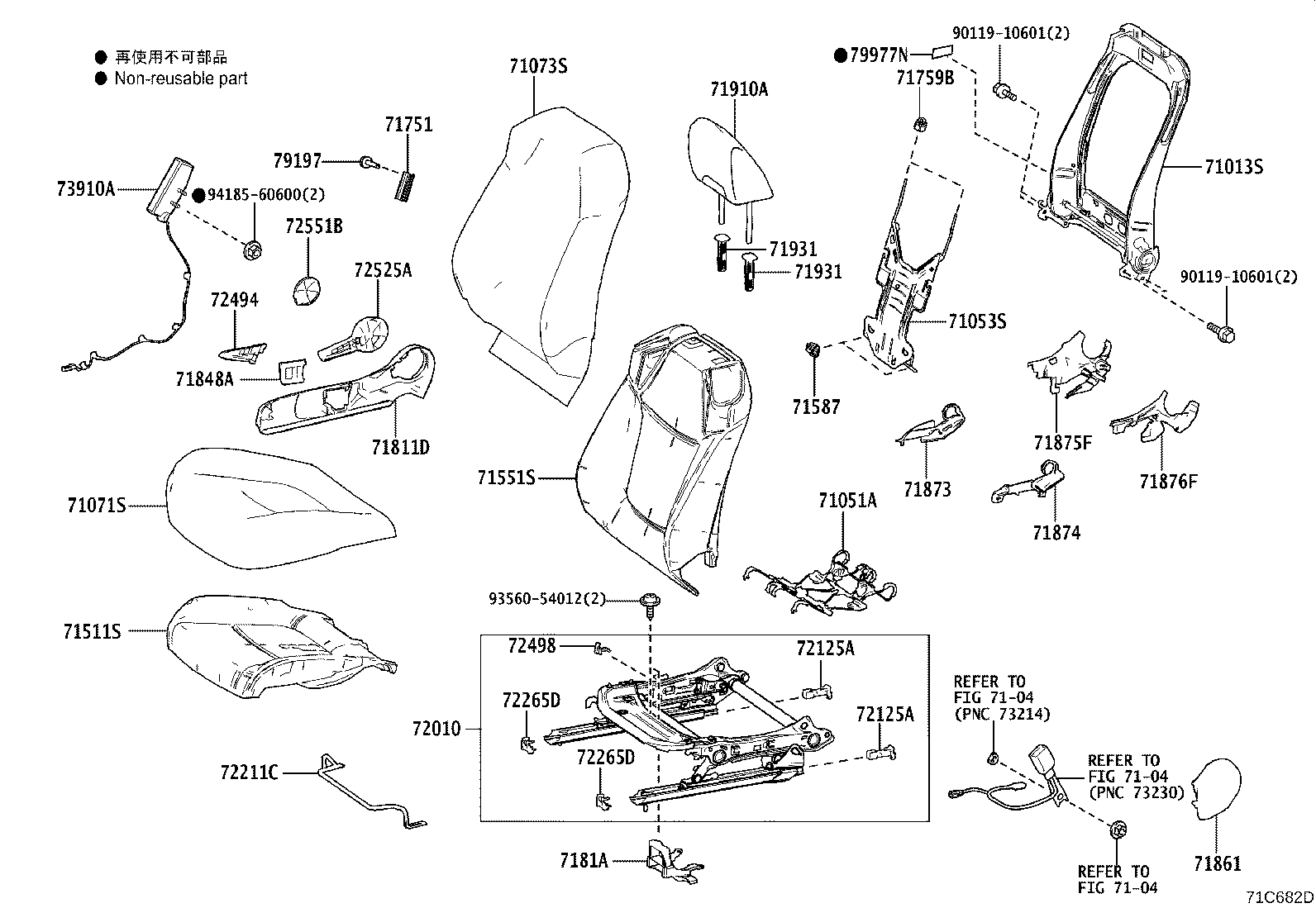

ILLUST NO. 1 OF 3(2007- )RHD
DRIVER SIDE,MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-06581 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) |
1 | ||
| 71013-06581 |
ZVG10..E..TH GR SPORT |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-06120 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 71051-06120 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-06160 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 71053-06160 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0A220C1 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) BLACK,TRIM2# |
1 | ||
| 71071-0A220C1 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2# |
1 | ||
| 71071-0A220D0 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) TERRA ROSSA,TRIM3# |
1 | ||
| 71071-0A220D0 |
ZVG10..E..TH GR SPORT,TERRA ROSSA,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0A350C1 |
ZVG10..RHD..E;ZSG10..RHD..(E,G);ZVG10..(G,N)..(IDN,TH) BLACK,TRIM2# |
1 | ||
| 71073-0A350C1 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2# |
1 | ||
| 71073-0A350D1 |
ZVG10..E..TH GR SPORT,TERRA ROSSA,TRIM3# |
1 | ||
| 71073-0A350D1 |
ZVG10..RHD..E;ZSG10..RHD..(E,G);ZVG10..(G,N)..(IDN,TH) TERRA ROSSA,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0A040 |
ZVG10..E..TH GR SPORT |
1 | ||
| 71511-0A040 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0A080 |
ZVG10..THP..E;ZSG10..THP..(E,G);ZSG10..LHD..THP..N;ZVG10..(G,N)..(IDN,TH) |
1 | ||
| 71551-0A080 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-F4030 |
ZSG10,ZVG10..THP |
4 | ||
| 71587-F4030 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
4 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-0K070 |
ZVG10..THP..E;ZSG10..THP..(E,G);ZSG10..LHD..THP..N;ZVG10..(G,N)..(IDN,TH) |
2 | ||
| 71751-0K070 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
2 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0K060 |
ZSG10,ZVG10..THP |
4 | ||
| 71759-0K060 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-06600C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 71811-06600C0 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) BLACK,TRIM2#,3# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-06030 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) |
1 | ||
| 7181A-06030 |
ZVG10..E..TH GR SPORT |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-06350C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 71861-06350C0 |
ZSG10,ZVG10..RHD BLACK,TRIM2#,3# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06430 |
ZVG10..E..TH GR SPORT |
1 | ||
| 71873-06430 |
ZSG10,ZVG10..RHD |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-06620 |
ZVG10..E..TH GR SPORT |
1 | ||
| 71873-06620 |
ZSG10,ZVG10..RHD |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-06410C0 |
ZSG10,ZVG10..RHD BLACK,TRIM2#,3# |
1 | ||
| 71875-06410C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-06420C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 71875-06420C0 |
ZSG10,ZVG10..RHD BLACK,TRIM2#,3# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0A290C0 |
ZSG10,ZVG10..THP..(E,G);ZSG10,ZVG10..N..(TH,VN) BLACK,TRIM2# |
2 | ||
| 71910-0A290D0 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT,TERRA ROSSA,TRIM3# |
2 | ||
| 71910-0A290C0 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT,BLACK,TRIM2# |
2 | ||
| 71910-0A290D0 |
ZSG10,ZVG10..THP..(E,G);ZSG10,ZVG10..N..(TH,VN) TERRA ROSSA,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C1 |
ZSG10,ZVG10..THP,TWP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050C1 |
ZSG10..E..VN;ZVG10..E..(PH,TH) W(LOCK),GR SPORT,BLACK,TRIM2# |
2 | ||
| 71931-0K040D0 |
ZSG10,ZVG10..(THP,TWP)..(E,G,J,N) W/O(LOCK),TERRA ROSSA,TRIM3# |
2 | ||
| 71931-0K040C1 |
ZSG10,ZVG10..THP,TWP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050D0 |
ZSG10..E..VN;ZVG10..E..(PH,TH) W(LOCK),GR SPORT,TERRA ROSSA,TRIM3# |
2 | ||
| 71930-0K050D0 |
ZSG10,ZVG10..(THP,TWP)..(E,G,J,N) W(LOCK),TERRA ROSSA,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C1 |
ZSG10,ZVG10..THP,TWP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050C1 |
ZSG10..E..VN;ZVG10..E..(PH,TH) W(LOCK),GR SPORT,BLACK,TRIM2# |
2 | ||
| 71931-0K040D0 |
ZSG10,ZVG10..(THP,TWP)..(E,G,J,N) W/O(LOCK),TERRA ROSSA,TRIM3# |
2 | ||
| 71931-0K040C1 |
ZSG10,ZVG10..THP,TWP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050D0 |
ZSG10..E..VN;ZVG10..E..(PH,TH) W(LOCK),GR SPORT,TERRA ROSSA,TRIM3# |
2 | ||
| 71930-0K050D0 |
ZSG10,ZVG10..(THP,TWP)..(E,G,J,N) W(LOCK),TERRA ROSSA,TRIM3# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-06440 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) |
1 | ||
| 72010-06440 |
ZVG10..E..TH GR SPORT |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-06090 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) LH SEAT |
2 | ||
| 72125-06100 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) RH SEAT |
2 | ||
| 72125-06100 |
ZVG10..E..TH GR SPORT,RH SEAT |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-06090 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) LH SEAT |
2 | ||
| 72125-06100 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) RH SEAT |
2 | ||
| 72125-06100 |
ZVG10..E..TH GR SPORT,RH SEAT |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06150 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 72211-06150 |
ZSG10..E..VN;ZVG10..THP..E;ZVG10..G..(IDN,TH);ZSG10..(G,N)..(MA,VN);ZSG10..RHD..E..(GEN,MA) |
1 | ||
| 72265D - COVER, SEAT TRACK UPPER RAIL | ||||
| 72265-06040 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) RH SEAT |
2 | ||
| 72265-06040 |
ZVG10..E..TH GR SPORT,RH SEAT |
2 | ||
| 72265-06060 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) LH SEAT |
2 | ||
| 72265D - COVER, SEAT TRACK UPPER RAIL | ||||
| 72265-06040 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) RH SEAT |
2 | ||
| 72265-06040 |
ZVG10..E..TH GR SPORT,RH SEAT |
2 | ||
| 72265-06060 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) LH SEAT |
2 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-02270 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 73910-02270 |
ZVG10..THP..E;ZSG10..THP..(E,G);ZSG10..LHD..THP..N;ZVG10..(G,N)..(IDN,TH) |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-0K010 |
ZVG10..THP..E;ZSG10..THP..(E,G);ZSG10..LHD..THP..N;ZVG10..(G,N)..(IDN,TH) |
2 | ||
| 79197-0K010 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
2 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

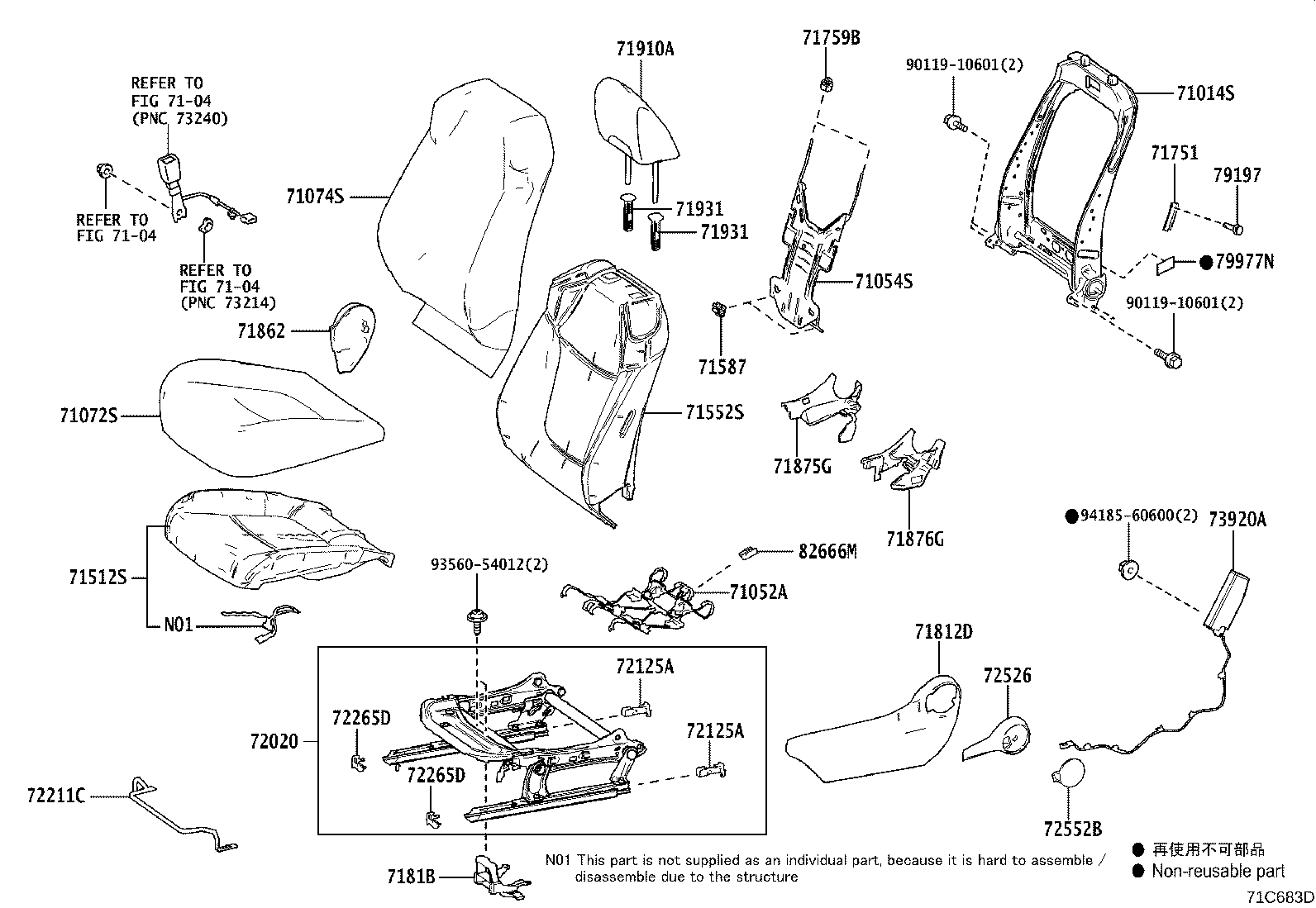

ILLUST NO. 2 OF 3(2007- )RHD
PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-06560 |
ZVG10..RHD;ZSG10..GEN,IDN,MA,PH,TH |
1 | ||
| 71014-06560 |
ZVG10..E..TH GR SPORT |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-06120 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 71051-06120 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-06160 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 71053-06160 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0A100D0 |
ZVG10..N..TH;ZSG10,ZVG10..RHD..(E,G) TERRA ROSSA,TRIM3# |
1 | ||
| 71072-0A100D0 |
ZVG10..E..TH GR SPORT,TERRA ROSSA,TRIM3# |
1 | ||
| 71072-0A100C1 |
ZVG10..N..TH;ZSG10,ZVG10..RHD..(E,G) BLACK,TRIM2# |
1 | ||
| 71072-0A100C1 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0A210C1 |
ZVG10..RHD..E;ZSG10..RHD..(E,G);ZVG10..(G,N)..(IDN,TH) BLACK,TRIM2# |
1 | ||
| 71074-0A210C1 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2# |
1 | ||
| 71074-0A210D1 |
ZVG10..RHD..E;ZSG10..RHD..(E,G);ZVG10..(G,N)..(IDN,TH) TERRA ROSSA,TRIM3# |
1 | ||
| 71074-0A210D1 |
ZVG10..E..TH GR SPORT,TERRA ROSSA,TRIM3# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-0A010 |
ZSG10,ZVG10..RHD |
1 | ||
| 71502-0A010 |
ZVG10..E..TH GR SPORT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0A080 |
ZVG10..THP..E;ZSG10..THP..(E,G);ZSG10..LHD..THP..N;ZVG10..(G,N)..(IDN,TH) |
1 | ||
| 71552-0A080 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-F4030 |
ZSG10,ZVG10..THP |
4 | ||
| 71587-F4030 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
4 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-0K070 |
ZVG10..THP..E;ZSG10..THP..(E,G);ZSG10..LHD..THP..N;ZVG10..(G,N)..(IDN,TH) |
2 | ||
| 71751-0K070 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
2 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-0K060 |
ZSG10,ZVG10..THP |
4 | ||
| 71759-0K060 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-06620C0 |
ZVG10..RHD..E;ZSG10..RHD..(E,G);ZVG10..(G,N)..(IDN,TH) BLACK,TRIM2#,3# |
1 | ||
| 71812-06620C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-F4020 |
ZVG10..E..TH GR SPORT |
1 | ||
| 7181B-F4020 |
ZVG10..RHD..E;ZVG10..(BZP,THP)..(G,N);MXGA10,ZSG10..AGT,BZ,GEN,IDN,MA,PH,TH |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06370C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 71862-06370C0 |
ZSG10,ZVG10..RHD BLACK,TRIM2#,3# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-06550C0 |
ZSG10,ZVG10..RHD BLACK,TRIM2#,3# |
1 | ||
| 71876-06550C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06540C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 71876-06540C0 |
ZSG10,ZVG10..RHD BLACK,TRIM2#,3# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0A290C0 |
ZSG10,ZVG10..THP..(E,G);ZSG10,ZVG10..N..(TH,VN) BLACK,TRIM2# |
2 | ||
| 71910-0A290D0 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT,TERRA ROSSA,TRIM3# |
2 | ||
| 71910-0A290C0 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT,BLACK,TRIM2# |
2 | ||
| 71910-0A290D0 |
ZSG10,ZVG10..THP..(E,G);ZSG10,ZVG10..N..(TH,VN) TERRA ROSSA,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C1 |
ZSG10,ZVG10..THP,TWP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050C1 |
ZSG10..E..VN;ZVG10..E..(PH,TH) W(LOCK),GR SPORT,BLACK,TRIM2# |
2 | ||
| 71931-0K040D0 |
ZSG10,ZVG10..(THP,TWP)..(E,G,J,N) W/O(LOCK),TERRA ROSSA,TRIM3# |
2 | ||
| 71931-0K040C1 |
ZSG10,ZVG10..THP,TWP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050D0 |
ZSG10..E..VN;ZVG10..E..(PH,TH) W(LOCK),GR SPORT,TERRA ROSSA,TRIM3# |
2 | ||
| 71930-0K050D0 |
ZSG10,ZVG10..(THP,TWP)..(E,G,J,N) W(LOCK),TERRA ROSSA,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0K050C1 |
ZSG10,ZVG10..THP,TWP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050C1 |
ZSG10..E..VN;ZVG10..E..(PH,TH) W(LOCK),GR SPORT,BLACK,TRIM2# |
2 | ||
| 71931-0K040D0 |
ZSG10,ZVG10..(THP,TWP)..(E,G,J,N) W/O(LOCK),TERRA ROSSA,TRIM3# |
2 | ||
| 71931-0K040C1 |
ZSG10,ZVG10..THP,TWP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-0K050D0 |
ZSG10..E..VN;ZVG10..E..(PH,TH) W(LOCK),GR SPORT,TERRA ROSSA,TRIM3# |
2 | ||
| 71930-0K050D0 |
ZSG10,ZVG10..(THP,TWP)..(E,G,J,N) W(LOCK),TERRA ROSSA,TRIM3# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-06450 |
ZVG10..E..TH GR SPORT |
1 | ||
| 72020-06450 |
ZSG10,ZVG10..RHD |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-06090 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) LH SEAT |
2 | ||
| 72125-06100 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) RH SEAT |
2 | ||
| 72125-06100 |
ZVG10..E..TH GR SPORT,RH SEAT |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-06090 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) LH SEAT |
2 | ||
| 72125-06100 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) RH SEAT |
2 | ||
| 72125-06100 |
ZVG10..E..TH GR SPORT,RH SEAT |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06150 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 72211-06150 |
ZSG10..E..VN;ZVG10..THP..E;ZVG10..G..(IDN,TH);ZSG10..(G,N)..(MA,VN);ZSG10..RHD..E..(GEN,MA) |
1 | ||
| 72265D - COVER, SEAT TRACK UPPER RAIL | ||||
| 72265-06040 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) RH SEAT |
2 | ||
| 72265-06040 |
ZVG10..E..TH GR SPORT,RH SEAT |
2 | ||
| 72265-06060 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) LH SEAT |
2 | ||
| 72265D - COVER, SEAT TRACK UPPER RAIL | ||||
| 72265-06040 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) RH SEAT |
2 | ||
| 72265-06040 |
ZVG10..E..TH GR SPORT,RH SEAT |
2 | ||
| 72265-06060 |
ZSG10..G..MA;ZVG10..G..(IDN,TH);ZSG10,ZVG10..RHD..E..(GEN,MA,TH) LH SEAT |
2 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-06140C0 |
ZVG10..RHD;ZSG10..GEN,IDN,MA,PH,TH BLACK,TRIM2#,3# |
1 | ||
| 72526-06140C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-06020C0 |
ZVG10..RHD;ZSG10..GEN,IDN,MA,PH,TH BLACK,TRIM2#,3# |
1 | ||
| 72551-06020C0 |
ZVG10..E..TH GR SPORT,BLACK,TRIM2#,3# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02270 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 73920-02270 |
ZVG10..THP..E;ZSG10..THP..(E,G);ZSG10..LHD..THP..N;ZVG10..(G,N)..(IDN,TH) |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-0K010 |
ZVG10..THP..E;ZSG10..THP..(E,G);ZSG10..LHD..THP..N;ZVG10..(G,N)..(IDN,TH) |
2 | ||
| 79197-0K010 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
2 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-47630 |
ZSG10..E..VN;ZVG10..E..(PH,TH) GR SPORT |
1 | ||
| 82666-47630 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 3 OF 3(2007- )
SEAT RAIL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-06130 |
ZSG10,ZVG10..THP |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-06130 |
ZSG10,ZVG10..THP |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-06130 |
ZSG10,ZVG10..THP |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-06130 |
ZSG10,ZVG10..THP |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-06150 |
ZSG10,ZVG10..THP |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-06150 |
ZSG10,ZVG10..THP |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-10090 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-10040 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| Common parts | ||||
| 90148-10007 | ||||
| 90148-T0020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
