ZVG10R-DHXEBT (2020)

Toyota Corolla Cross

Production Jul 2020 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

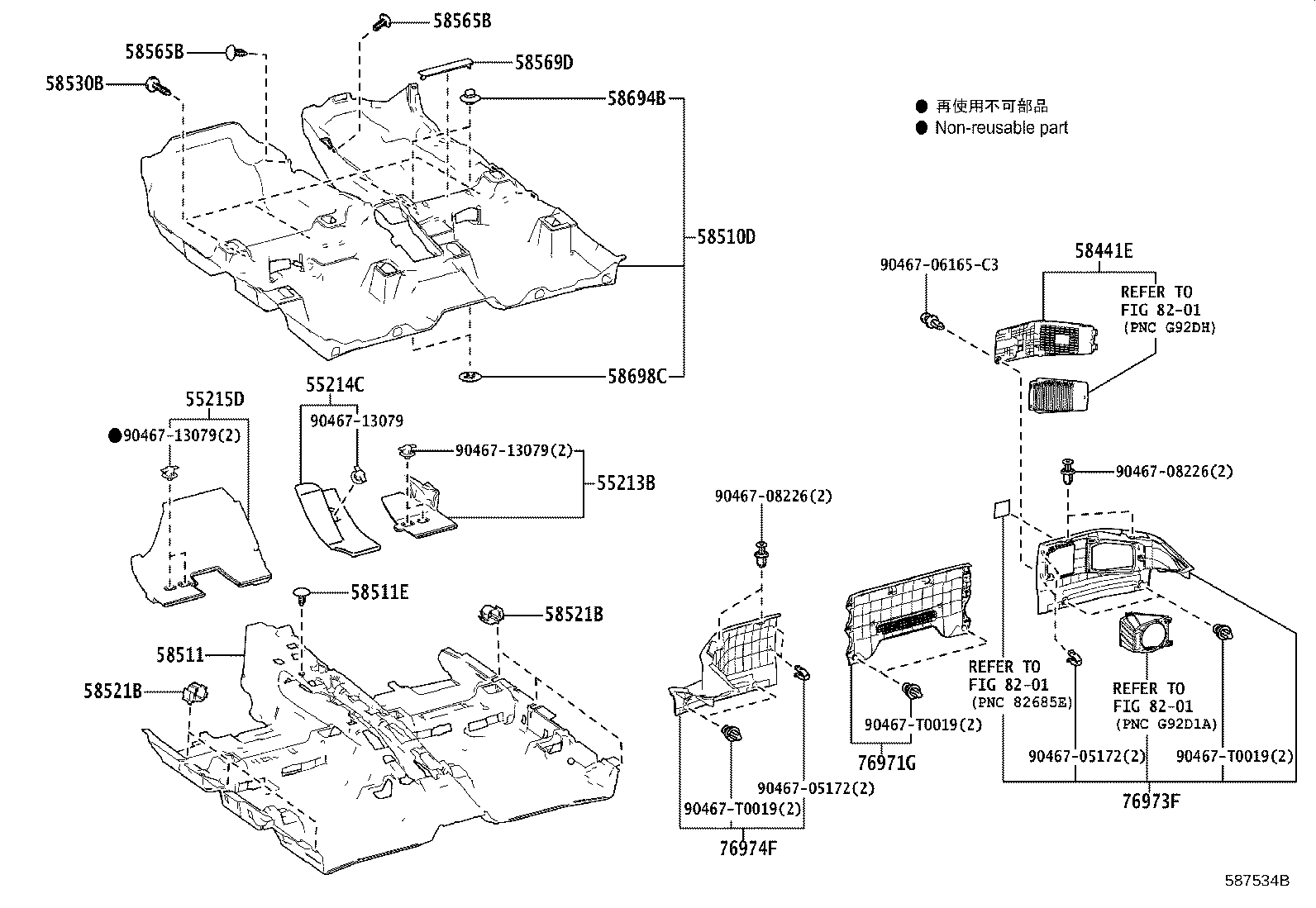

ILLUST NO. 1 OF 2(2007- )ZVG10..RHD

Click highlighted areas on diagram

FLOOR CARPET

diagram 55213B 55214C 55215D 58441E 58510D 58511 58511E 58521B 58521B 58530B 58565B 58565B 58569D 58694B 58698C 76971G 76973F 76974F 8201 8201 8201 9046705172 9046705172 9046706165C3 9046708226 9046708226 9046713079 9046713079 9046713079 90467T0019 90467T0019 90467T0019
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-0A050

ZSG10,ZVG10..RHD

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-0A030

ZSG10,ZVG10..RHD

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-0A030

ZSG10,ZVG10..RHD

 1
58441E - COVER, BATTERY SERVICE HOLE
58441-02080C0

ZVG10..THP

BLACK,TRIM2#,3#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-0A120C0

ZVG10..RHD..(GEN,MA,TH)

BLACK,TRIM2#,3#

 1
58511 - MAT, FLOOR, FRONT
58511-0A020

ZVG10..THP

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07042C4

MXGA10,ZSG10,ZVG10

BLACK

 1
58521B - HOOK, FLOOR CARPET
58521-06170

ZSG10,ZVG10..THP,TWP

 6
58521B - HOOK, FLOOR CARPET
58521-06170

ZSG10,ZVG10..THP,TWP

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
64726-10020C2

ZSG10,ZVG10..THP

BLACK,TRIM2#,3#

 4
58565B - CLIP
90467-T0004C4

ZSG10,ZVG10..THP

BLACK,TRIM2#,3#

 2
58565B - CLIP
90467-T0004C4

ZSG10,ZVG10..THP

BLACK,TRIM2#,3#

 2
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-02130C0

ZSG10,ZVG10..THP

BLACK,TRIM2#,3#

 1
58694B - PLATE, MAT SET, UPPER
58694-0K010

ZSG10,ZVG10..THP

 2
58698C - PLATE, MAT SET, LOWER
58698-0K070

ZSG10,ZVG10..THP

 2
76971G - COVER, REAR UNDER
76971-02040C0

ZVG10..THP

BLACK,TRIM2#,3#

 1
76973F - COVER, REAR UNDER SIDE, RH
76973-02040C0

ZVG10..THP

BLACK,TRIM2#,3#

 1
76974F - COVER, REAR UNDER SIDE, LH
76974-02040C0

ZVG10..THP

BLACK,TRIM2#,3#

 1
Common parts
90467-05172
90467-06165C3
90467-08226
90467-13079
90467-T0019
Linked diagrams
8201
