ZVG10R-DHXEBT (2020)

Toyota Corolla Cross

Production Jul 2020 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )THP

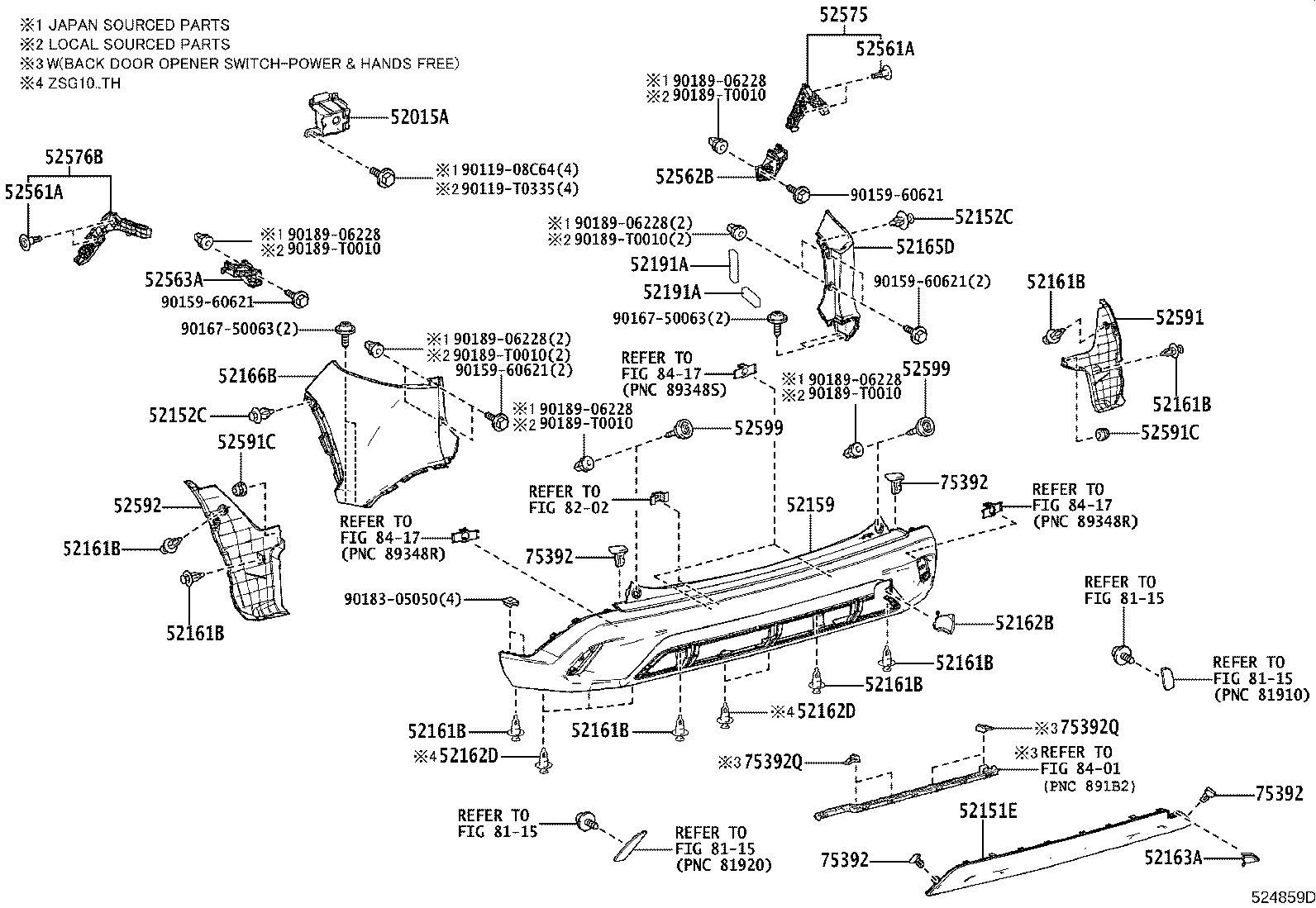

Click highlighted areas on diagram

diagram 52015A 52151E 52152C 52152C 52159 52161B 52161B 52161B 52161B 52161B 52161B 52161B 52161B 52162B 52162D 52162D 52163A 52165D 52166B 52191A 52191A 52561A 52561A 52562B 52563A 52575 52576B 52591 52591C 52591C 52592 52599 52599 75392 75392 75392 75392 75392Q 75392Q 8115 8115 8115 8115 8202 8401 8417 8417 8417 9011908C64 90119T0335 9015960621 9015960621 9015960621 9015960621 9016750063 9016750063 9018305050 9018906228 9018906228 9018906228 9018906228 9018906228 9018906228 90189T0010 90189T0010 90189T0010 90189T0010 90189T0010 90189T0010
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-0A030

ZSG10,ZVG10..THP

 1
52151E - BAR, REAR BUMPER
52151-0A900

ZSG10,ZVG10..THP

PAINT REQ.

 1
52151-0A900

ZSG10..E..VN;ZVG10..E..(PH,TH)

PAINT REQ.,GR SPORT

 1
52152C - CLIP, REAR BUMPER SIDE
90467-07220

ZSG10,ZVG10..THP,TWP

 2
52152C - CLIP, REAR BUMPER SIDE
90467-07220

ZSG10,ZVG10..THP,TWP

 2
52159 - COVER, REAR BUMPER
52159-0A070

ZVG10..E..TH

NO PAINT REQ.,GR SPORT

 1
52159-0A070

ZSG10,ZVG10..IDN,TH

NO PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-0K040

ZSG10,ZVG10..THP

 8
52161B - PIECE, REAR BUMPER
52161-0K040

ZSG10,ZVG10..THP

 8
52161B - PIECE, REAR BUMPER
52161-0K040

ZSG10,ZVG10..THP

 8
52161B - PIECE, REAR BUMPER
52161-0K040

ZSG10,ZVG10..THP

 8
52161B - PIECE, REAR BUMPER
52161-0K040

ZSG10,ZVG10..THP

 8
52161B - PIECE, REAR BUMPER
52161-0K040

ZSG10,ZVG10..THP

 8
52161B - PIECE, REAR BUMPER
52161-0K040

ZSG10,ZVG10..THP

 8
52161B - PIECE, REAR BUMPER
52161-0K040

ZSG10,ZVG10..THP

 8
52162B - PLATE, REAR BUMPER, NO.1
52162-0A010

ZSG10..E..VN;ZVG10..E..(PH,TH)

GR SPORT

 1
52162-0A010

ZSG10,ZVG10..THP

 1
52163A - PLATE, REAR BUMPER, RH
52163-0A903

ZSG10..E..VN;ZVG10..E..(PH,TH)

GR SPORT

 1
52163-0A903

ZSG10,ZVG10..THP

 1
52165D - EXTENSION, REAR BUMPER CORNER, RH
52165-0A900

ZSG10,ZVG10..THP

 1
52166B - EXTENSION, REAR BUMPER CORNER, LH
52166-0A900

ZSG10,ZVG10..THP

 1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-09237

ZSG10,ZVG10..THP

 4
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-09237

ZSG10,ZVG10..THP

 4
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-0A010

ZSG10,ZVG10..THP

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-0A010

ZSG10,ZVG10..THP

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-0A010

ZSG10,ZVG10..THP

 1
52576B - RETAINER, REAR BUMPER SIDE, LH
52576-0A010

ZSG10,ZVG10..THP

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0A020

ZSG10,ZVG10..THP

 1
52591C - CLIP, REAR BUMPER SIDE SEAL
90467-06206C0

MXGA10,ZSG10,ZVG10

BLACK

 2
52591C - CLIP, REAR BUMPER SIDE SEAL
90467-06206C0

MXGA10,ZSG10,ZVG10

BLACK

 2
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0A010

ZSG10,ZVG10..THP

 1
52599 - STOPPER, REAR BUMPER, UPPER
52599-68030

MXGA10,ZSG10,ZVG10

 2
52599 - STOPPER, REAR BUMPER, UPPER
52599-68030

MXGA10,ZSG10,ZVG10

 2
75392 - RETAINER, OUTSIDE MOULDING
75392-0K010

ZSG10,ZVG10..THP

 4
75392 - RETAINER, OUTSIDE MOULDING
75392-0K010

ZSG10,ZVG10..THP

 4
75392 - RETAINER, OUTSIDE MOULDING
75392-0K010

ZSG10,ZVG10..THP

 4
75392 - RETAINER, OUTSIDE MOULDING
75392-0K010

ZSG10,ZVG10..THP

 4
75392Q - RETAINER, OUTSIDE MOULDING, NO.2
75392-35220

ZSG10..MA;ZVG10..E..TAIW;ZVG10..(E,G)..(IDN,MA,TH)

(J)

 4
75392-0K010

ZSG10..MA;ZVG10..E..TAIW;ZVG10..(E,G)..(IDN,MA,TH)

(L)

 4
75392Q - RETAINER, OUTSIDE MOULDING, NO.2
75392-35220

ZSG10..MA;ZVG10..E..TAIW;ZVG10..(E,G)..(IDN,MA,TH)

(J)

 4
75392-0K010

ZSG10..MA;ZVG10..E..TAIW;ZVG10..(E,G)..(IDN,MA,TH)

(L)

 4
Common parts
90119-08C64
90119-T0335
90159-60621
90167-50063
90183-05050
90189-06228
90189-T0010
