ZVG10R-DHXEBT (2020)
Toyota Corolla Cross

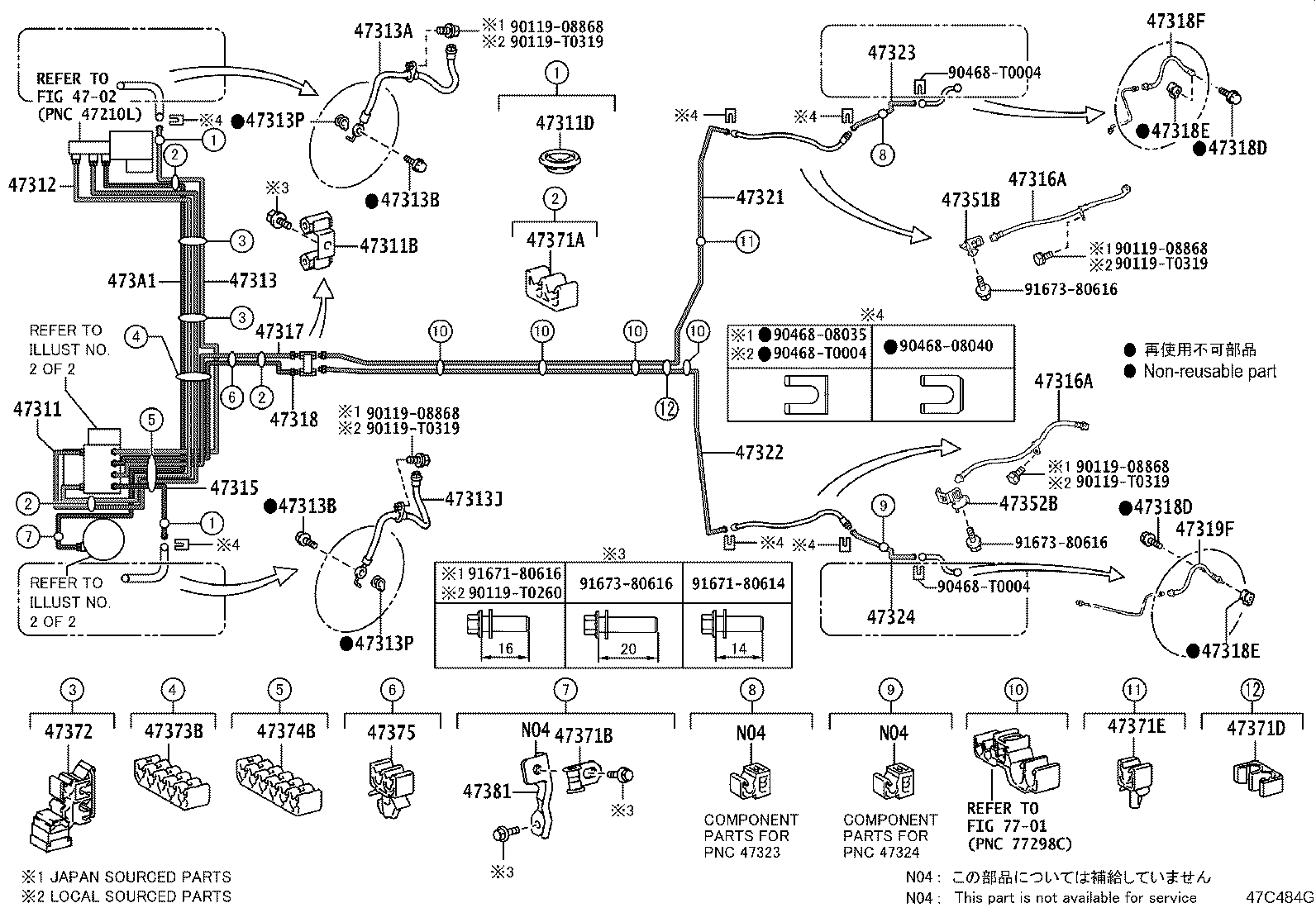

ILLUST NO. 1 OF 2(2007- )ZVG10..RHD
BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-F4060 |
ZVG10..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10285 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-25037 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-F4060 |
ZVG10..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-F4060 |
ZVG10..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2128 |
MXGA10,ZSG10,ZVG10..BZP,THP (L) |
1 | ||
| 90947-02H46 |
MXGA10,ZSG10,ZVG10 (J) |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2129 |
MXGA10,ZSG10,ZVG10..BZP,THP (L) |
1 | ||
| 90947-02H47 |
MXGA10,ZSG10,ZVG10 (J) |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-F4060 |
ZVG10..RHD |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2162 |
MXGA10,ZSG10,ZVG10..BZP,THP RH |
1 | ||
| 90947-T2163 |
MXGA10,ZSG10,ZVG10..BZP,THP LH |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2162 |
MXGA10,ZSG10,ZVG10..BZP,THP RH |
1 | ||
| 90947-T2163 |
MXGA10,ZSG10,ZVG10..BZP,THP LH |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-F4060 |
ZVG10..RHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-F4060 |
ZVG10..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-T2160 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-T2160 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0A040 |
ZSG10,ZVG10..THP |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-0A040 |
ZSG10,ZVG10..THP |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0A040 |
ZSG10,ZVG10..THP |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-0A040 |
ZSG10,ZVG10..THP |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-0A050 |
ZSG10,ZVG10..THP |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-0A050 |
ZSG10,ZVG10..THP |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01D91 |
ZVG10..RHD |
3 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90461-10854 |
ZVG10..RHD |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90464-00904 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01E01 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01E49 |
ZVG10..RHD |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01E15 |
ZVG10..RHD |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01E17 |
ZVG10..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01E34 |
ZVG10..RHD |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-F4030 |
ZVG10..RHD |
1 | ||
| 473A1 - TUBE, ACCUMULATOR TO BRAKE MASTER CYLINDER | ||||
| 473A1-F4030 |
ZVG10..RHD |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0260 | ||||
| 90119-T0319 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90468-T0004 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

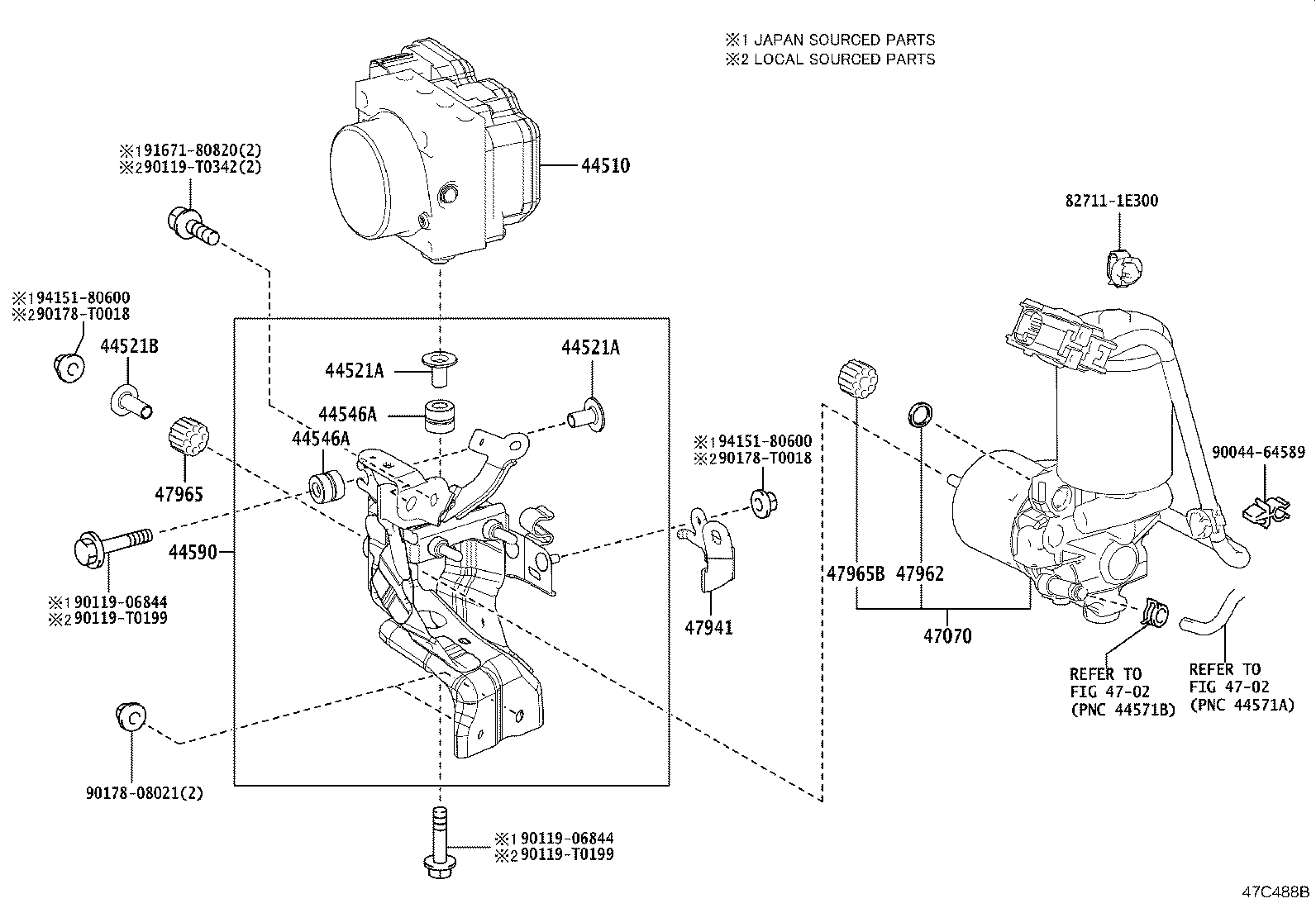

ILLUST NO. 2 OF 2(2007- )ZVG10..RHD
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-47060 |
ZVG10 |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
ZVG10 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
ZVG10 |
3 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-47010 |
ZVG10 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
ZVG10 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
ZVG10 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-47082 |
ZVG10..RHD |
1 | ||
| 47070 - PUMP ASSY, BRAKE BOOSTER | ||||
| 47070-47100 |
ZVG10..RHD |
1 | ||
| 47941 - BRACKET, BRAKE POWER SUPPLY, NO.1 | ||||
| 47941-47020 |
ZVG10..RHD |
1 | ||
| 47962 - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-60090 |
ZVG10 |
2 | ||
| 47965 - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-30010 |
ZVG10 |
1 | ||
| 47965B - BUSH, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47965-30010 |
ZVG10 |
2 | ||
| Common parts | ||||
| 82711-1E300 | ||||
| 90044-64589 | ||||
| 90119-06844 | ||||
| 90119-T0199 | ||||
| 90119-T0342 | ||||
| 90178-08021 | ||||
| 90178-T0018 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4702 | ||||
