ZVG10R-DHXEBT (2020)
Toyota Corolla Cross
Production
Jul 2020
-
Sep 9999
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )ZVG10..RHD

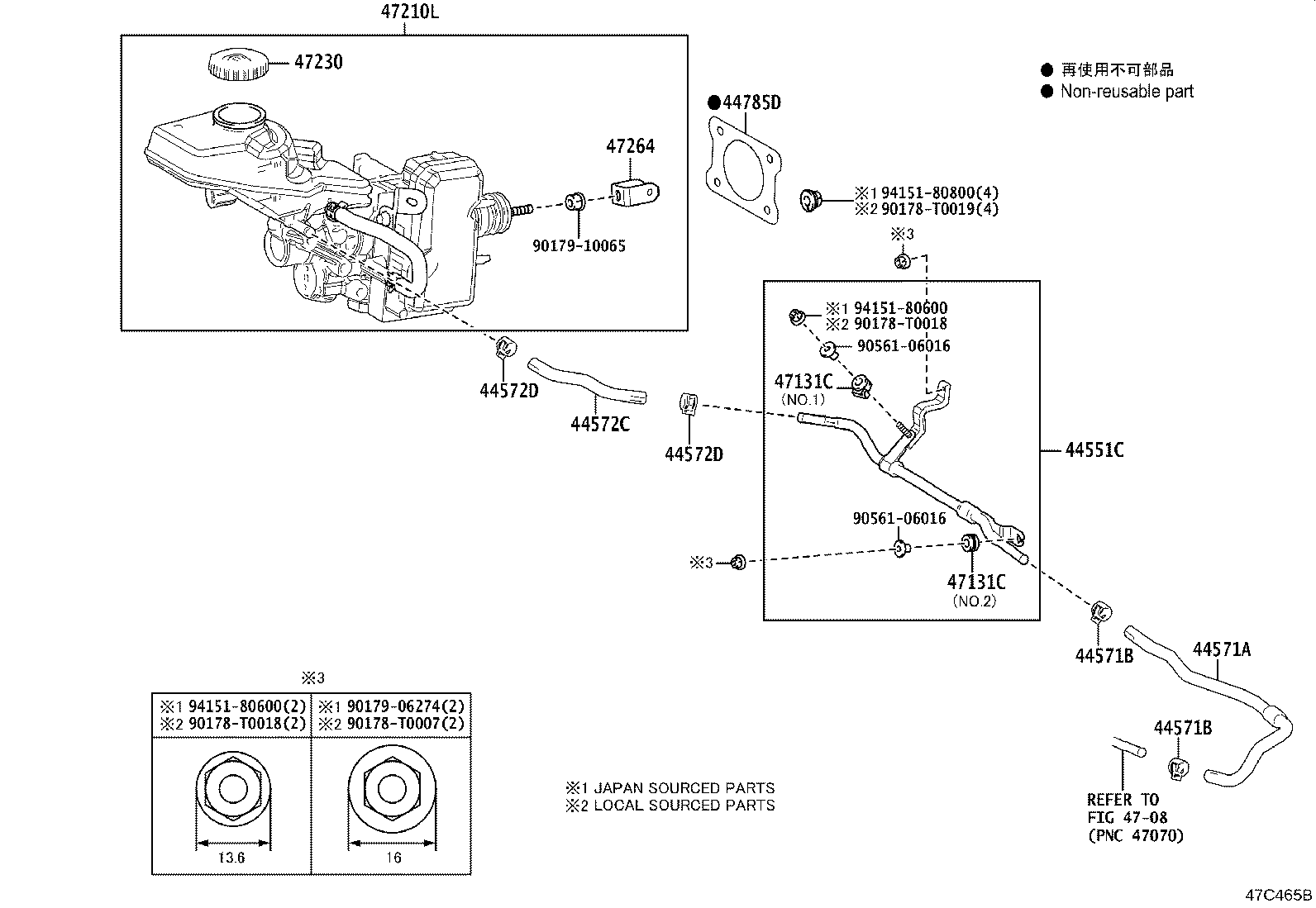

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-F4011 |
ZVG10..RHD |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-F4010 |
ZVG10..RHD |
1 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 90466-T0059 |
ZVG10..THP (L) |
1 | ||
| 96137-41501 |
ZVG10..THP (J) |
1 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 90466-T0059 |
ZVG10..THP (L) |
1 | ||
| 96137-41501 |
ZVG10..THP (J) |
1 | ||
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-F4010 |
ZVG10..RHD |
1 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
ZVG10..THP (J) |
1 | ||
| 90466-T0059 |
ZVG10..THP (L) |
1 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
ZVG10..THP (J) |
1 | ||
| 90466-T0059 |
ZVG10..THP (L) |
1 | ||
| 44785D - GASKET, BRAKE MASTER CYLINDER | ||||
| 44785-12040 |
ZVG10 |
1 | ||
| 47131C - CUSHION | ||||
| 47131-02010 |
ZVG10..THP NO.1:REFER ILLUST. |
1 | ||
| 47131-02020 |
ZVG10..THP NO.2:REFER ILLUST. |
1 | ||
| 47131C - CUSHION | ||||
| 47131-02010 |
ZVG10..THP NO.1:REFER ILLUST. |
1 | ||
| 47131-02020 |
ZVG10..THP NO.2:REFER ILLUST. |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-16050 |
ZVG10..(E,G)..(MA,TH) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
ZVG10 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12060 |
ZVG10 |
1 | ||
| Common parts | ||||
| 90178-T0007 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 90179-06274 | ||||
| 90179-10065 | ||||
| 90561-06016 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4708 | ||||
