ZVG10R-DHXEBT (2020)

Toyota Corolla Cross

Production Jul 2020 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )ZVG10..RHD

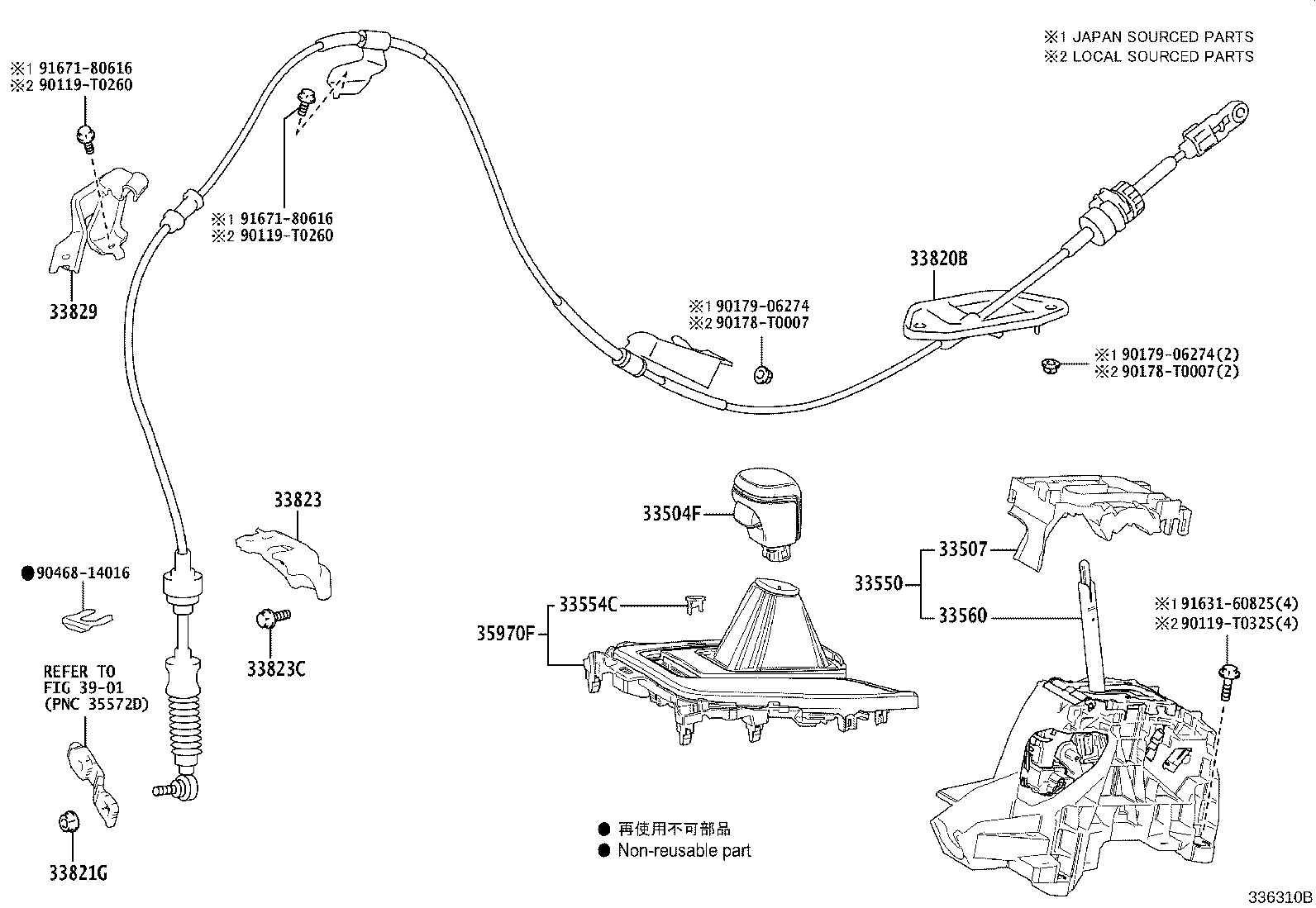

Click highlighted areas on diagram

diagram 33504F 33507 33550 33554C 33560 33820B 33821G 33823 33823C 33829 35970F 3901 90119T0260 90119T0260 90119T0325 90178T0007 90178T0007 9017906274 9017906274 9046814016 9163160825 9167180616 9167180616
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-02860C0

ZVG10..E..TAIW;ZSG10,ZVG10..N..(TH,VN);ZSG10,ZVG10..THP..(E,G)

BLACK,TRIM2#,3#

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-02040

ZSG10,ZVG10..RHD

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-02800

ZVG10..RHD

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-02170

ZSG10,ZVG10..RHD

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-F4090

ZVG10..RHD

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-F4060

ZVG10..THP

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

ZSG10,ZVG10..THP

(J)

 1
90178-T0019

ZSG10,ZVG10..THP

(L)

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-10030

ZVG10..BZP,THP

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08079

ZSG10,ZVG10..THP

(J)

 2
90119-T0102

ZSG10,ZVG10..THP

(L)

 2
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-10011

ZVG10..BZP,THP

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-02210C1

ZVG10..RHD

BLACK,TRIM2#,3#

 1
Common parts
90119-T0260
90119-T0325
90178-T0007
90179-06274
90468-14016
91631-60825
91671-80616
Linked diagrams
3901
