ZVG10R-DHXEBT (2020)

Toyota Corolla Cross

Production Jul 2020 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )2ZRFXE..THP,TWP

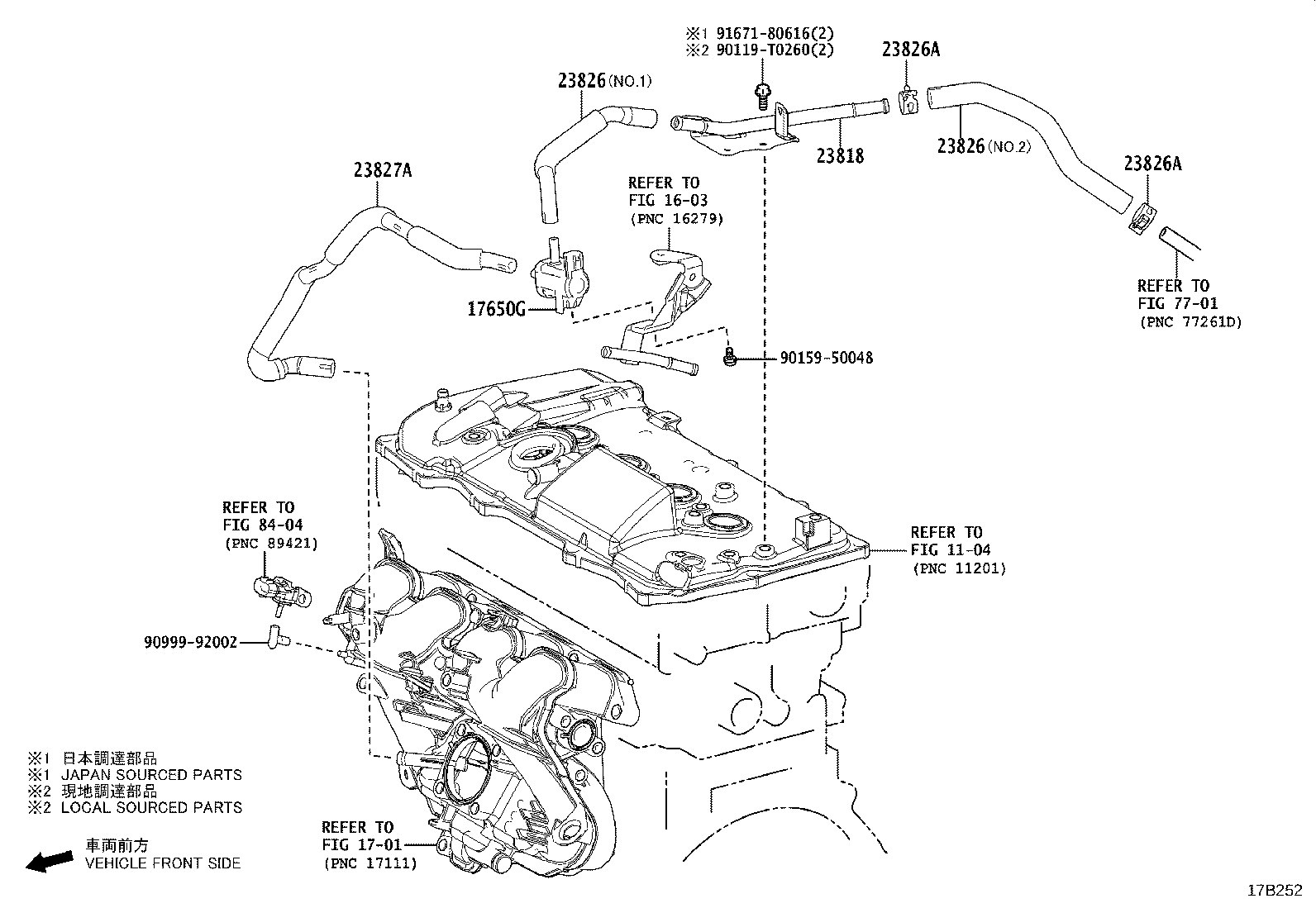

Click highlighted areas on diagram

diagram 1104 1603 1701 17650G 23818 23826 23826 23826A 23826A 23827A 7701 8404 90119T0260 9015950048 9099992002 9167180616
Part # Description Qty Price
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12276

2ZR#..ZSG10,ZVG10

 1
23818 - PIPE, FUEL VAPOR FEED
23818-37030

2ZRFXE..ZVG10

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0T560

2ZRFXE..ZVG10..THP,TWP

(L),NO.1

 1
23826-37250

2ZRFXE..ZVG10..THP,TWP

(J),NO.1

 1
23826-0T360

2ZRFXE..ZVG10..THP,TWP

NO.2

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0T560

2ZRFXE..ZVG10..THP,TWP

(L),NO.1

 1
23826-37250

2ZRFXE..ZVG10..THP,TWP

(J),NO.1

 1
23826-0T360

2ZRFXE..ZVG10..THP,TWP

NO.2

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96136-41901

2ZRFXE..ZVG10

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96136-41901

2ZRFXE..ZVG10

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-37070

2ZRFXE..ZVG10..THP,TWP

(J)

 1
23827-0T040

2ZRFXE..ZVG10..THP,TWP

(L)

 1
Common parts
90119-T0260
90159-50048
90999-92002
91671-80616
Linked diagrams
1104
1603
1701
7701
8404
