ZVG10R-DHXEBT (2020)
Toyota Corolla Cross
Production
Jul 2020
-
Sep 9999
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )2ZRFXE..THP

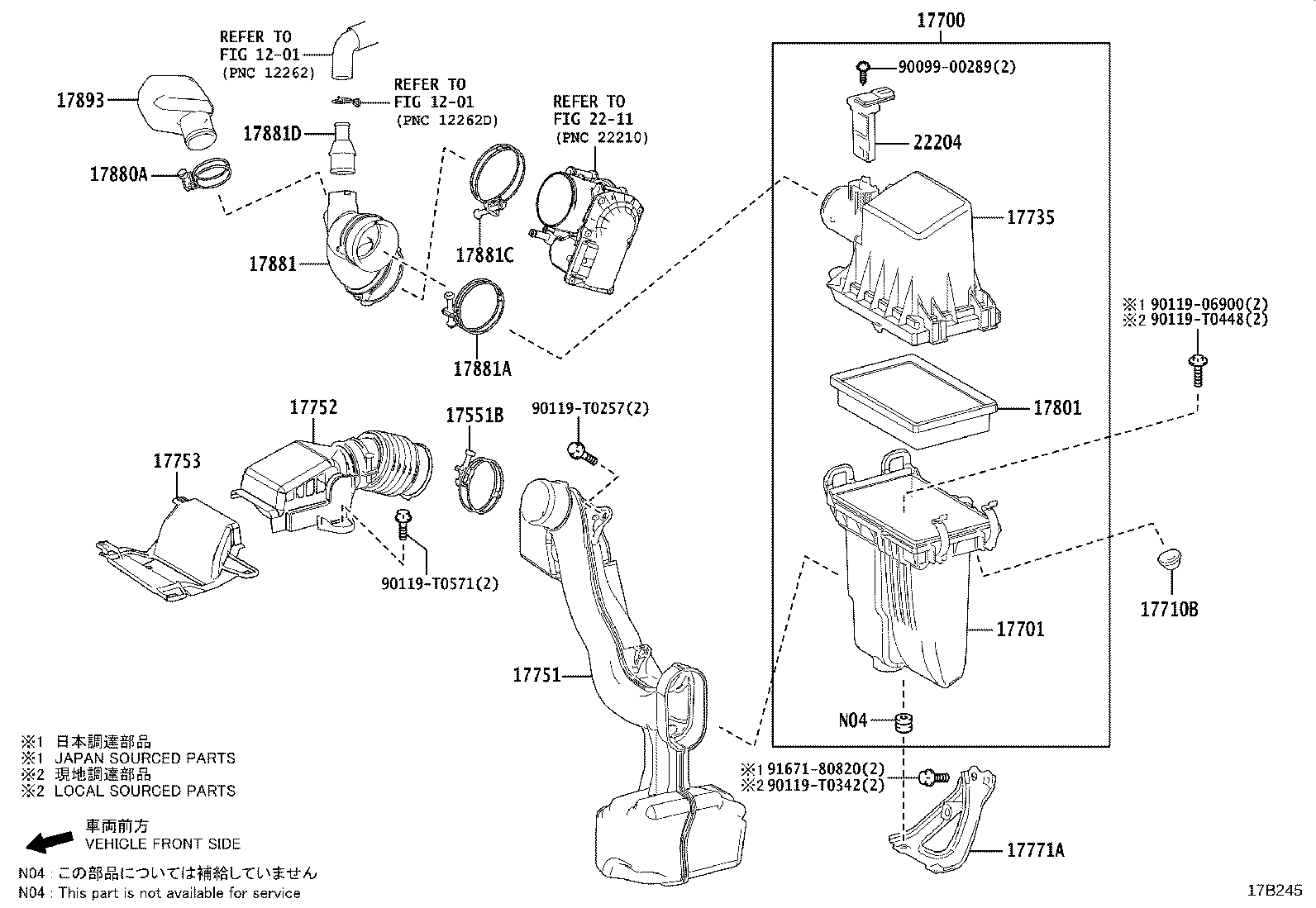

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17551B - CLAMP(FOR AIR CLEANER INLET, NO.1) | ||||
| 90460-T0004 |
2ZRFXE..ZVG10..THP |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0T280 |
2ZRFXE..ZVG10..THP |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0T220 |
2ZRFXE..ZVG10..THP |
1 | ||
| 17710B - GROMMET | ||||
| 90480-18006 |
2ZR#..ZSG10,ZVG10 |
1 | ||
| 17735 - CAP, AIR CLEANER | ||||
| 17735-0T180 |
2ZRFXE..ZVG10..THP |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0T250 |
2ZRFXE..ZVG10 |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-0T100 |
2ZRFXE..ZVG10 |
1 | ||
| 17753 - INLET, AIR CLEANER, NO.3 | ||||
| 17753-0T110 |
2ZRFXE..ZVG10 |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-37020 |
2ZRFXE..ZVG10 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0T090 |
2ZRFXE..ZVG10..THP |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 96111-10430 |
2ZRFXE..ZVG10 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0T490 |
2ZRFXE..ZVG10..THP |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0004 |
2ZRFXE..ZVG10..THP |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0010 |
2ZR#..ZSG10,ZVG10..THP |
1 | ||
| 17881D - TUBE, UNION(FOG AIR CLEANER HOSE) | ||||
| 90904-06008 |
2ZRFXE..ZVG10 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-0T120 |
2ZRFXE..ZVG10..THP |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75030 |
2ZRFXE..ZVG10 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06900 | ||||
| 90119-T0257 | ||||
| 90119-T0342 | ||||
| 90119-T0448 | ||||
| 90119-T0571 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
