ZVG10R-DHXEBT (2020)
Toyota Corolla Cross

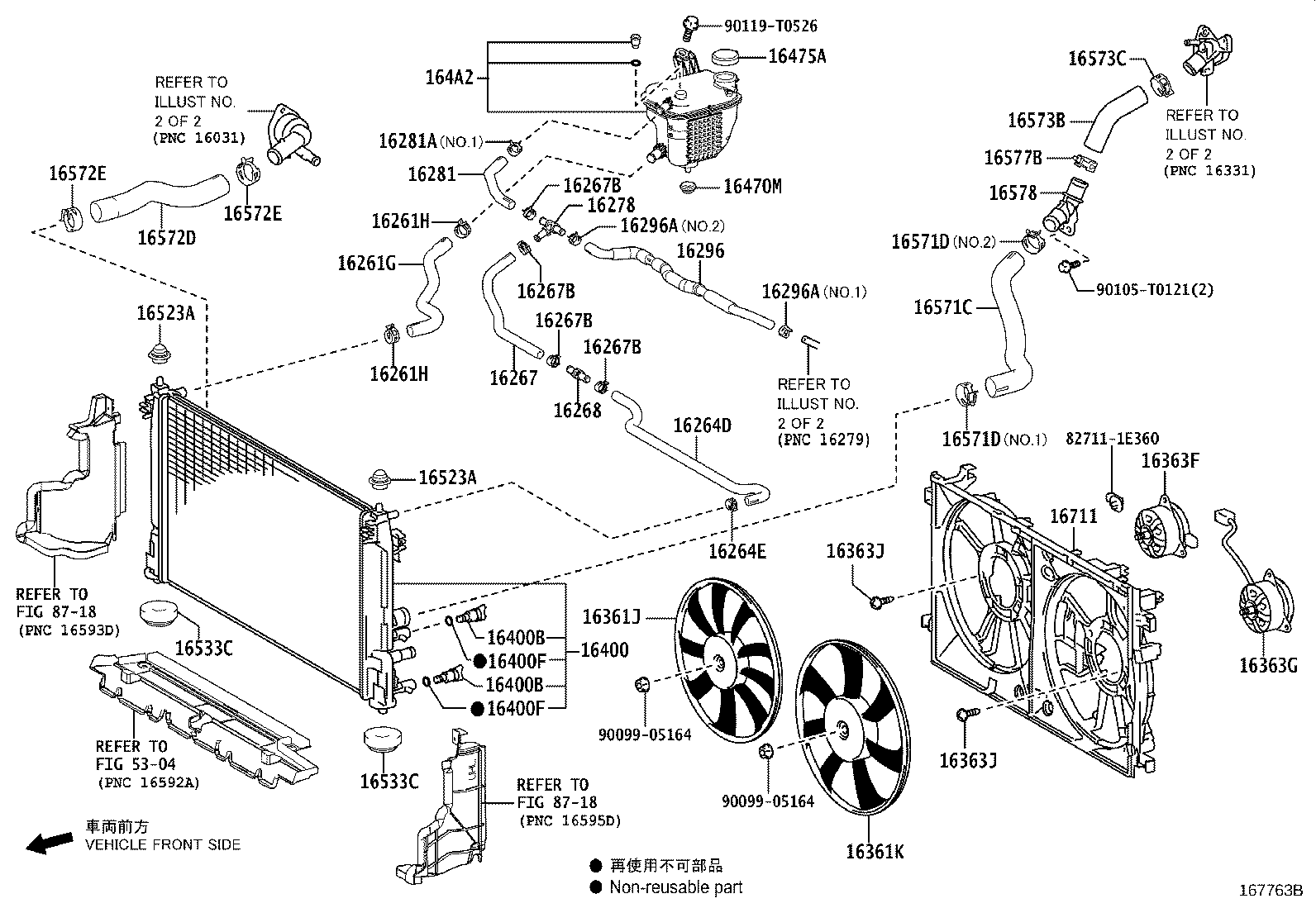

ILLUST NO. 1 OF 2(2007- )2ZRFXE..THP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0T300 |
2ZRFXE..ZVG10..THP |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-T0020 |
2ZR#..ZSG10,ZVG10..THP |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-T0020 |
2ZR#..ZSG10,ZVG10..THP |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0T250 |
2ZRFXE..ZVG10..THP |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41901 |
2ZR#..ZSG10,ZVG10 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0T220 |
2ZRFXE..ZVG10..THP |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVG10 |
4 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVG10 |
4 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVG10 |
4 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVG10 |
4 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0T200 |
2ZR#..ZSG10,ZVG10..THP |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16268-0T190 |
2ZRFXE..ZVG10..THP |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0T170 |
2ZRFXE..ZVG10..THP |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-T0020 |
2ZRFXE..ZVG10..THP,TWP (L),NO.2 |
2 | ||
| 90466-T0017 |
2ZRFXE..ZVG10..THP (L),NO.1 |
1 | ||
| 96138-42101 |
2ZRFXE..ZVG10..THP (J),NO.1 |
1 | ||
| 96136-42501 |
2ZRFXE..ZVG10..THP,TWP (J),NO.2 |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-0T020 |
2ZRFXE..ZVG10..THP |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41901 |
2ZRFXE..ZVG10 NO.2 |
1 | ||
| 90466-16004 |
2ZRFXE..ZVG10 NO.1 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41901 |
2ZRFXE..ZVG10 NO.2 |
1 | ||
| 90466-16004 |
2ZRFXE..ZVG10 NO.1 |
1 | ||
| 16361J - FAN, RH | ||||
| 16361-37070 |
2ZRFXE..ZVG10..THP |
1 | ||
| 16361K - FAN, LH | ||||
| 16361-37060 |
2ZRFXE..ZVG10..THP |
1 | ||
| 16363F - MOTOR, COOLING FAN, RH | ||||
| 16363-36160 |
2ZRFXE..ZVG10..AGT,BZ,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 16363G - MOTOR, COOLING FAN, LH | ||||
| 16363-37060 |
2ZRFXE..ZVG10..AGT,BZ,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 16363J - BOLT(FOR COOLING FAN MOTOR) | ||||
| 90099-04119 |
2ZRFXE..ZVG10 |
6 | ||
| 16363J - BOLT(FOR COOLING FAN MOTOR) | ||||
| 90099-04119 |
2ZRFXE..ZVG10 |
6 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-37311 |
2ZRFXE..ZVG10..THP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2ZRFXE..ZVG10..THP |
2 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2ZRFXE..ZVG10..THP |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ZRFXE..ZVG10..BZP,THP |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ZRFXE..ZVG10..BZP,THP |
2 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
2ZR#..ZSG10,ZVG10 |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-28140 |
2ZR#..ZSG10,ZVG10 |
1 | ||
| 164A2 - TANK, RESERVE SEALED W/O CAP | ||||
| 164A2-0T050 |
2ZR#..ZSG10,ZVG10..THP |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0T100 |
2ZR#..ZSG10,ZVG10..THP |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0T100 |
2ZR#..ZSG10,ZVG10..THP |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90480-40021 |
2ZR#..ZSG10,ZVG10 |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90480-40021 |
2ZR#..ZSG10,ZVG10 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0T320 |
2ZRFXE..ZVG10..THP |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0067 |
2ZRFXE..ZVG10..THP NO.1 |
1 | ||
| 96136-43901 |
2ZRFXE..ZVG10 NO.2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0067 |
2ZRFXE..ZVG10..THP NO.1 |
1 | ||
| 96136-43901 |
2ZRFXE..ZVG10 NO.2 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0T260 |
2ZRFXE..ZVG10..THP |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0067 |
2ZR#..ZSG10,ZVG10..THP |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0067 |
2ZR#..ZSG10,ZVG10..THP |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0T160 |
2ZRFXE..ZVG10..THP |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-43901 |
2ZRFXE..ZVG10 |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 96136-43901 |
2ZR#..ZSG10,ZVG10..THP,TWP |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16577-0T160 |
2ZRFXE..ZVG10..THP |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-37160 |
2ZRFXE..ZVG10..THP |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-05164 | ||||
| 90105-T0121 | ||||
| 90119-T0526 | ||||
| Linked diagrams | ||||
| 5304 | ||||
| 8718 | ||||
ILLUST NO. 2 OF 2(2007- )2ZRFXE..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN
WITH EGR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-37010 |
2ZRFXE..ZVG10 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-37160 |
2ZRFXE..ZVG10..THP,TWP (J) |
1 | ||
| 16261-0T280 |
2ZRFXE..ZVG10..THP,TWP (L) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0059 |
2ZR#..ZSG10,ZVG10..THP,TWP (L) |
2 | ||
| 96137-41501 |
2ZR#..ZSG10,ZVG10..THP,TWP (J) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0059 |
2ZR#..ZSG10,ZVG10..THP,TWP (L) |
2 | ||
| 96137-41501 |
2ZR#..ZSG10,ZVG10..THP,TWP (J) |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0T400 |
2ZRFXE..ZVG10..THP,TWP (L) |
1 | ||
| 16264-37130 |
2ZRFXE..ZVG10..THP,TWP (J) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZR#..ZSG10,ZVG10..THP,TWP (J) |
2 | ||
| 90466-T0059 |
2ZR#..ZSG10,ZVG10..THP,TWP (L) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZR#..ZSG10,ZVG10..THP,TWP (J) |
2 | ||
| 90466-T0059 |
2ZR#..ZSG10,ZVG10..THP,TWP (L) |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2ZR#..ZSG10,ZVG10..THP,TWP (J) |
2 | ||
| 90466-T0020 |
2ZR#..ZSG10,ZVG10..THP,TWP (L) |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
2ZR#..ZSG10,ZVG10..THP,TWP (J) |
2 | ||
| 90466-T0020 |
2ZR#..ZSG10,ZVG10..THP,TWP (L) |
2 | ||
| 16267K - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37100 |
2ZRFXE..ZVG10 |
1 | ||
| 16268L - PIPE, WATER BY-PASS | ||||
| 16268-0T370 |
2ZRFXE..ZVG10..THP,TWP (L) |
1 | ||
| 16268-37110 |
2ZRFXE..ZVG10..THP,TWP (J) |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-0T040 |
2ZRFXE..ZVG10..THP,TWP (L) |
1 | ||
| 16279-37020 |
2ZRFXE..ZVG10..THP,TWP (J) |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-T0020 |
2ZRFXE..ZVG10..THP,TWP (L),NO.2 |
2 | ||
| 90466-T0017 |
2ZRFXE..ZVG10..THP (L),NO.1 |
1 | ||
| 96138-42101 |
2ZRFXE..ZVG10..THP (J),NO.1 |
1 | ||
| 96136-42501 |
2ZRFXE..ZVG10..THP,TWP (J),NO.2 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-T0020 |
2ZRFXE..ZVG10..THP,TWP (L),NO.2 |
2 | ||
| 90466-T0017 |
2ZRFXE..ZVG10..THP (L),NO.1 |
1 | ||
| 96138-42101 |
2ZRFXE..ZVG10..THP (J),NO.1 |
1 | ||
| 96136-42501 |
2ZRFXE..ZVG10..THP,TWP (J),NO.2 |
2 | ||
| 16281N - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-37080 |
2ZRFXE..ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN MARK=LIGHT BLUE |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-37021 |
2ZRFXE..ZVG10..AGT,GCC,GEN,IDN,MA,PH,TAIW,TH,VN |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96137-41501 |
2ZRFXE..ZVG10..THP,TWP (J) |
2 | ||
| 90466-T0059 |
2ZRFXE..ZVG10..THP,TWP (L) |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96137-41501 |
2ZRFXE..ZVG10..THP,TWP (J) |
2 | ||
| 90466-T0059 |
2ZRFXE..ZVG10..THP,TWP (L) |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-37010 |
2ZRFXE..ZVG10 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96137-51701 |
2ZRFXE..ZVG10..THP,TWP (J) |
2 | ||
| 90466-T0042 |
2ZRFXE..ZVG10..THP,TWP (L) |
2 | ||
| 90466-16005 |
2ZRFXE..ZVG10 |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96137-51701 |
2ZRFXE..ZVG10..THP,TWP (J) |
2 | ||
| 90466-T0042 |
2ZRFXE..ZVG10..THP,TWP (L) |
2 | ||
| 90466-16005 |
2ZRFXE..ZVG10 |
2 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37020 |
2ZRFXE..ZVG10 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0T020 |
2ZRFXE..ZVG10..THP,TWP (L) |
1 | ||
| 16331-37100 |
2ZRFXE..ZVG10..THP,TWP (J) |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0T020 |
2ZRFXE..ZVG10..THP,TWP MADE IN THAILAND |
1 | ||
| 16341-37010 |
2ZRFXE..ZVG10..THP,TWP MADE IN JAPAN |
1 | ||
| Common parts | ||||
| 90119-T0342 | ||||
| 90126-06026 | ||||
| 90126-08060 | ||||
| 90126-T0015 | ||||
| 90178-T0018 | ||||
| 91551-80620 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
| 8716 | ||||
