ZVG10R-DHXEBT (2020)

Toyota Corolla Cross

Production Jul 2020 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )THP

Click highlighted areas on diagram

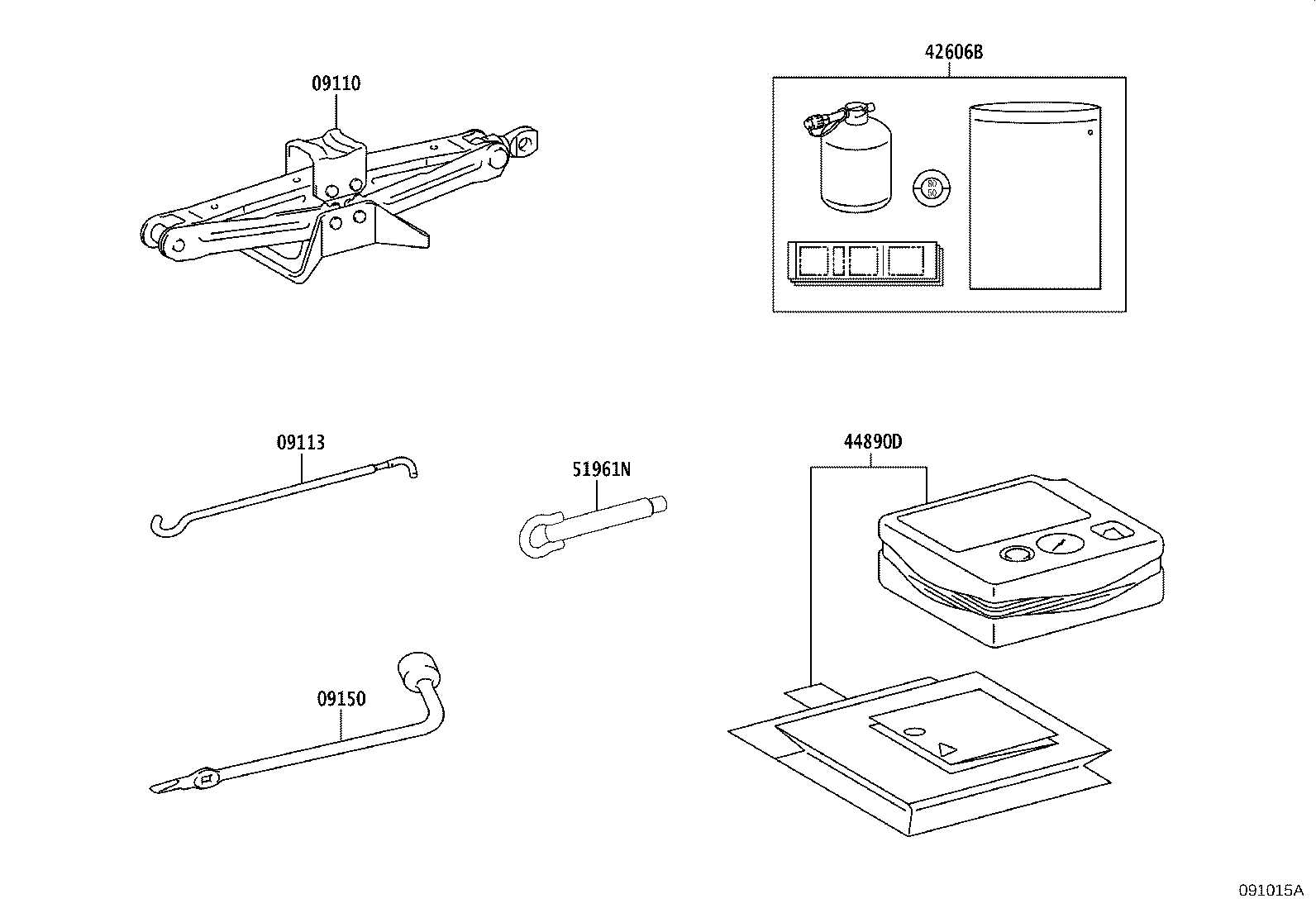

diagram 09110 09113 09150 42606B 44890D 51961N
Part # Description Qty Price
09110 - JACK ASSY
09111-47050

ZSG10,ZVG10..THP

 1
09113 - HANDLE, JACK
09113-02090

ZSG10,ZVG10..THP

 1
09150 - WRENCH, HUB NUT BOX
09150-42010

MXGA10,ZSG10,ZVG10..AGT,BZ,GCC,GEN,IDN,MA,PH,TH,VN

 1
42606B - REPAIR KIT, TUBELESS TIRE
42606-F4040

ZSG10,ZVG10..TH

 1
42606-F4040

ZSG10,ZVG10..TH

SPARE TIRE-TEMPORARY(T155/70D17)

 1
42606-F4041

ZSG10,ZVG10..TH

SPARE TIRE-TEMPORARY(T155/70D17)

 1
42606-F4041

ZSG10,ZVG10..TH

 1
44890D - COMPRESSOR ASSY, AIR
42680-F4020

ZSG10,ZVG10..TH

 1
42680-F4021

ZSG10,ZVG10..TH

 1
51961N - HOOK, TRANSPORT
51960-0A020

ZSG10,ZVG10..THP

 1
