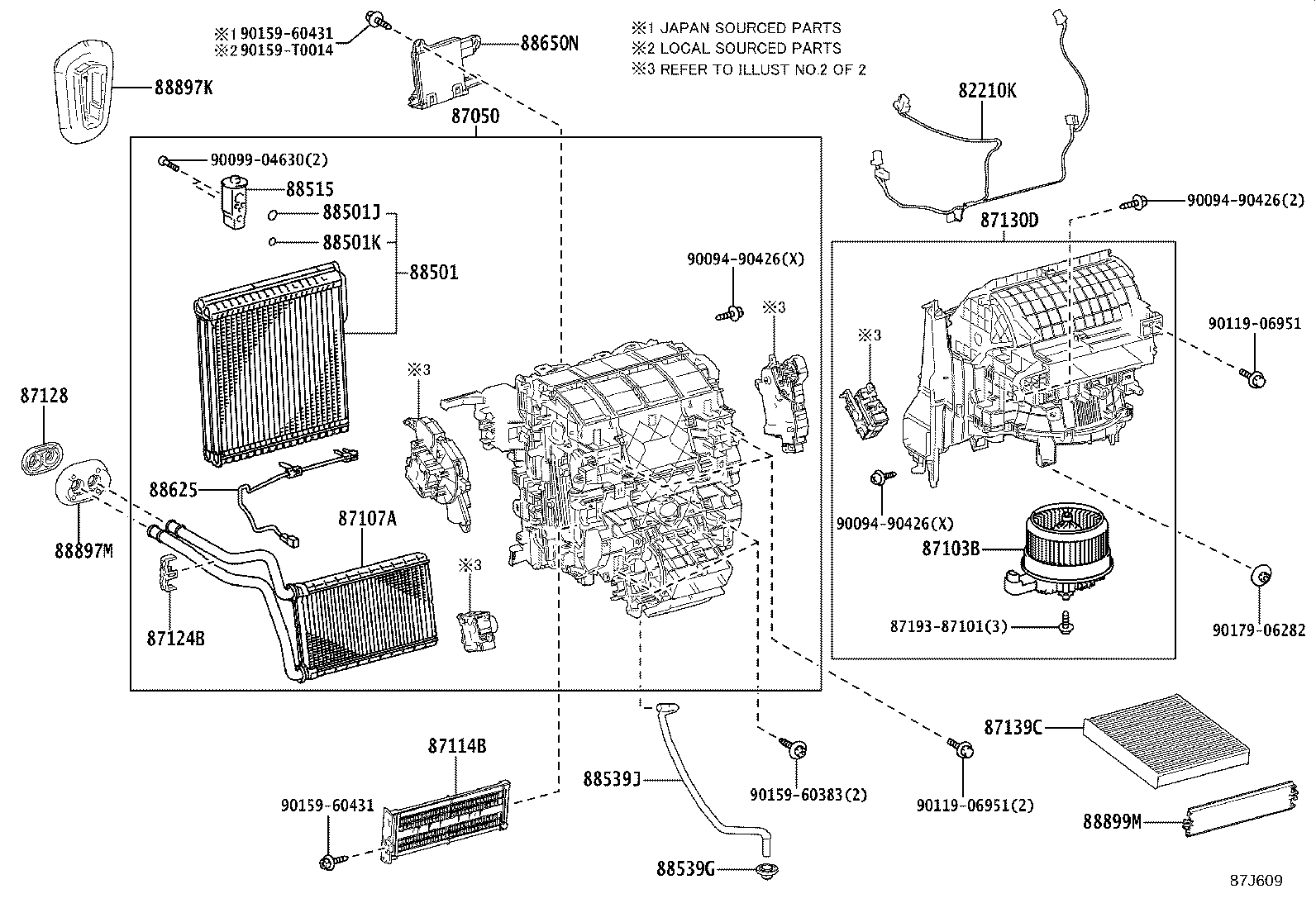

Toyota Corolla cross ZVG10 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-0A030	MXGA10,ZVG10..BZP..(E,G)	03/2021 - 12/2999	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0A230	ZVG10..AGT;ZVG10..E..BZ	03/2021 - 12/2999	1
87050-0A240	ZVG10..BZP..E..GEN;ZVG10..BZP..G..(BZ,GEN)	03/2021 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0A090	MXGA10,ZVG10..BZP..(E,G)	03/2021 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02400	MXGA10,ZVG10..BZP	03/2021 - 12/2999	1
87114B - COVER, HEATER
87114-02170	MXGA10,ZVG10..BZP	03/2021 - 12/2999	1
87124B - CLAMP, HEATER
87124-02220	MXGA10,ZVG10..BZP	03/2021 - 12/2999	1
87128 - GROMMET, HEATER
87128-28010	MXGA10,ZSG10,ZVG10	07/2020 - 12/2999	1
87130D - BLOWER ASSY
87130-02C01	MXGA10,ZVG10..BZP..(E,G)	03/2021 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-02240	MXGA10,ZVG10..BZP POLLEN FILTER	03/2021 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0A060	ZVG10..BZP	03/2021 - 12/2999	1
88539J - HOSE, DRAIN COOLER
88539-02500	MXGA10,ZVG10..BZP	03/2021 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-02220	MXGA10,ZVG10..BZP	03/2021 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0A050	MXGA10,ZVG10..BZP..(E,G)	03/2021 - 12/2999	1
88897K - GROMMET, (FOR COOLER PIPE)
88899-02440	MXGA10,ZVG10..BZP	03/2021 - 12/2999	1
88897M - GROMMET (FOR HEATER PIPE)
87128-02210	MXGA10,ZVG10..BZP	03/2021 - 12/2999	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-02340	MXGA10,ZVG10..BZP	03/2021 - 12/2999	1
Common parts
87193-87101
90094-90426
90099-04630
90119-06951
90159-60383
90159-60431
90159-T0014
90179-06282

ZVG10L-GHXGBG (2021)
