ZVG10L-GHXGBG (2021)
Toyota Corolla Cross
Production
Mar 2021
-
Sep 9999
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2103- )BZP

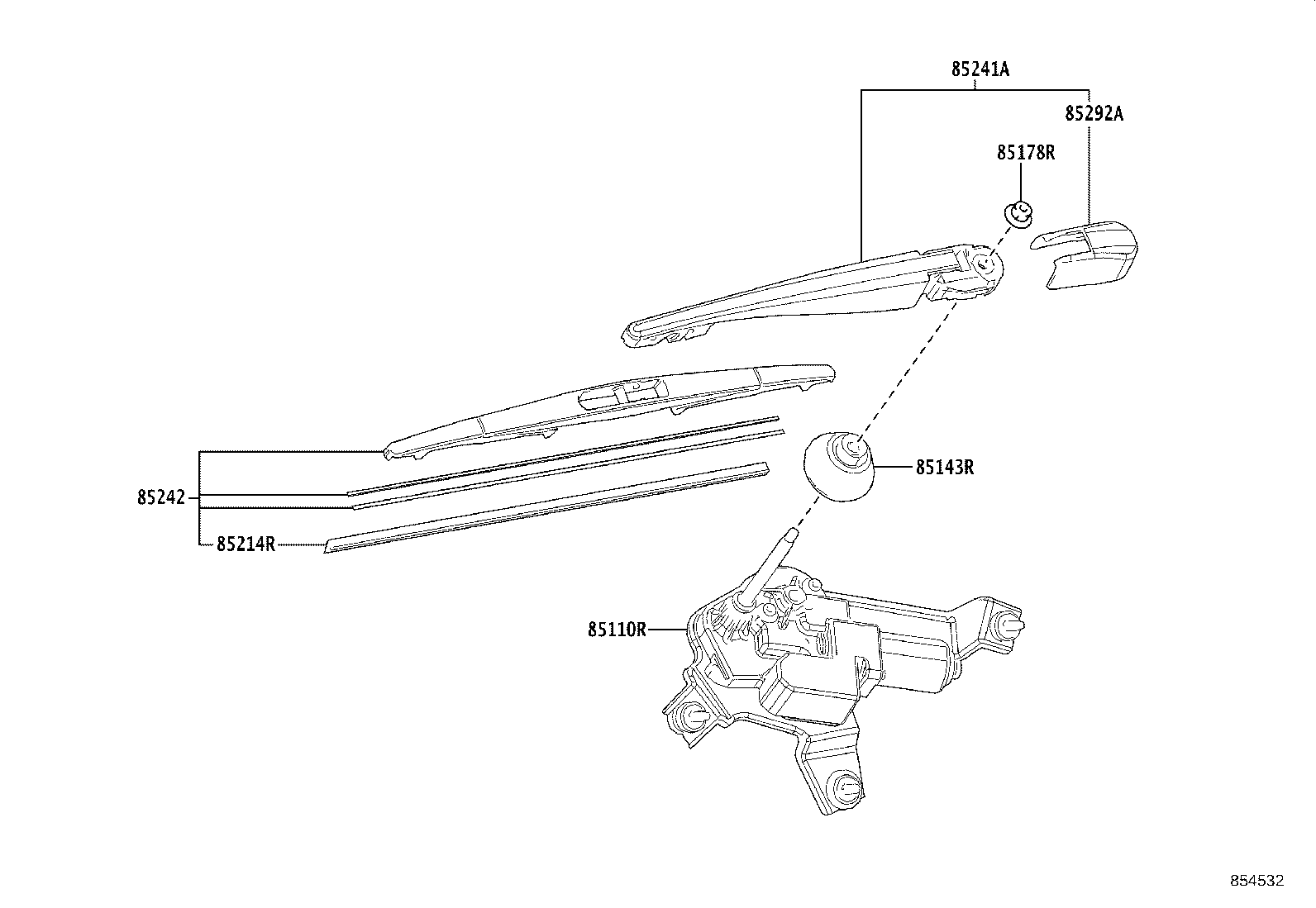

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 85143R - GROMMET, REAR WIPER MOTOR | ||||
| 85143-0A020 |
MXGA10,ZVG10..BZP |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
MXGA10,ZVG10..BZP |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 85241A - ARM, REAR WIPER | ||||
| 85241-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 85242 - BLADE, RR WIPER | ||||
| 85242-0A020 |
MXGA10,ZVG10..BZP |
1 | ||
| 85292A - CAP, REAR WIPER ARM HEAD | ||||
| 85244-0A010 |
MXGA10,ZVG10..BZP |
1 | ||
