ZVG10L-GHXGBG (2021)
Toyota Corolla Cross

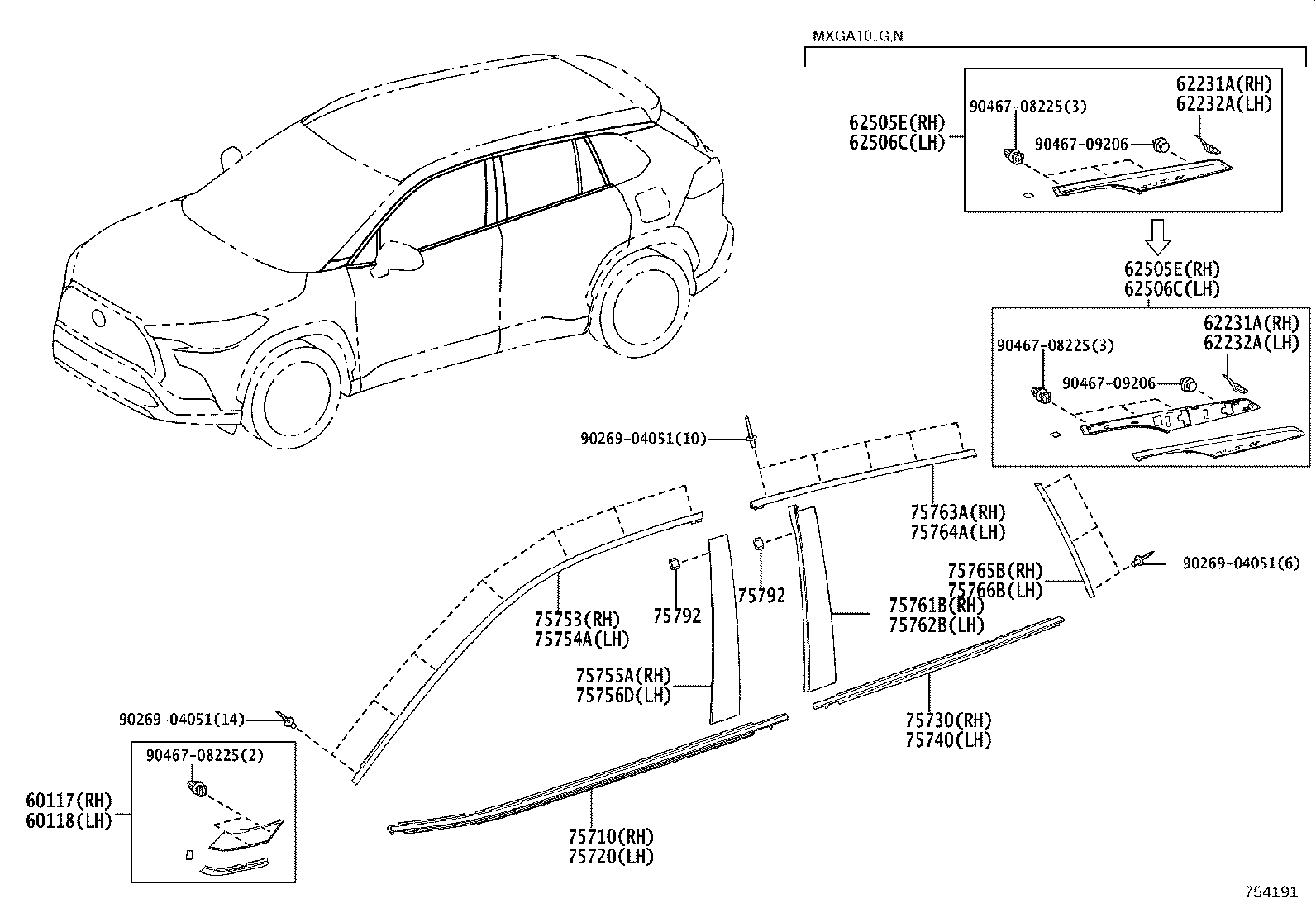

ILLUST NO. 1 OF 2(2103- )BZP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 62231A - PAD, QUARTER PILLAR, RH | ||||
| 62523-0A010 |
MXGA10..E..GEN;ZVG10..(BZP,THP)..E;ZVG10..G..(BZ,GEN,IDN,TH);ZSG10..(E,G)..(GEN,IDN,MA,VN) |
1 | ||
| 62231A - PAD, QUARTER PILLAR, RH | ||||
| 62523-0A010 |
MXGA10..E..GEN;ZVG10..(BZP,THP)..E;ZVG10..G..(BZ,GEN,IDN,TH);ZSG10..(E,G)..(GEN,IDN,MA,VN) |
1 | ||
| 62232A - PAD, QUARTER PILLAR, LH | ||||
| 62524-0A010 |
MXGA10..E..GEN;ZVG10..(BZP,THP)..E;ZVG10..G..(BZ,GEN,IDN,TH);ZSG10..(E,G)..(GEN,IDN,MA,VN) |
1 | ||
| 62232A - PAD, QUARTER PILLAR, LH | ||||
| 62524-0A010 |
MXGA10..E..GEN;ZVG10..(BZP,THP)..E;ZVG10..G..(BZ,GEN,IDN,TH);ZSG10..(E,G)..(GEN,IDN,MA,VN) |
1 | ||
| 62505E - COVER SUB-ASSY, QUARTER PILLAR, RH | ||||
| 62505-0A050 |
ZVG10..BZP..E;MXGA10..E..GEN;ZVG10..BZP..G..(BZ,GEN) NO PAINT REQ. |
1 | ||
| 62505E - COVER SUB-ASSY, QUARTER PILLAR, RH | ||||
| 62505-0A050 |
ZVG10..BZP..E;MXGA10..E..GEN;ZVG10..BZP..G..(BZ,GEN) NO PAINT REQ. |
1 | ||
| 62506C - COVER SUB-ASSY, QUARTER PILLAR, LH | ||||
| 62506-0A050 |
ZVG10..BZP..E;MXGA10..E..GEN;ZVG10..BZP..G..(BZ,GEN) NO PAINT REQ. |
1 | ||
| 62506C - COVER SUB-ASSY, QUARTER PILLAR, LH | ||||
| 62506-0A050 |
ZVG10..BZP..E;MXGA10..E..GEN;ZVG10..BZP..G..(BZ,GEN) NO PAINT REQ. |
1 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-0A050 |
MXGA10,ZVG10..BZP |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-0A050 |
MXGA10,ZVG10..BZP |
1 | ||
| 75730 - MOULDING ASSY, REAR DOOR BELT, RH | ||||
| 75730-0A050 |
MXGA10,ZVG10..BZP |
1 | ||
| 75740 - MOULDING ASSY, REAR DOOR BELT, LH | ||||
| 75740-0A050 |
MXGA10,ZVG10..BZP |
1 | ||
| 75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH | ||||
| 75753-0A060 |
ZVG10..BZP..E;MXGA10..E..GEN;ZVG10..BZP..G..(BZ,GEN) |
1 | ||
| 75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH | ||||
| 75754-0A060 |
ZVG10..BZP..E;MXGA10..E..GEN;ZVG10..BZP..G..(BZ,GEN) |
1 | ||
| 75755A - MOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SID | ||||
| 75755-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 75756D - MOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SID | ||||
| 75756-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 75761B - MOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE | ||||
| 75761-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 75762B - MOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE | ||||
| 75762-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH | ||||
| 75763-0A060 |
ZVG10..BZP..E;MXGA10..E..GEN;ZVG10..BZP..G..(BZ,GEN) |
1 | ||
| 75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH | ||||
| 75764-0A060 |
ZVG10..BZP..E;MXGA10..E..GEN;ZVG10..BZP..G..(BZ,GEN) |
1 | ||
| 75765B - MOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE) | ||||
| 75765-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 75766B - MOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE) | ||||
| 75766-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 75792 - CLIP, DOOR WINDOW FRAME MOULDING | ||||
| 75792-47010 |
MXGA10,ZVG10..BZP |
4 | ||
| 75792 - CLIP, DOOR WINDOW FRAME MOULDING | ||||
| 75792-47010 |
MXGA10,ZVG10..BZP |
4 | ||
| Common parts | ||||
| 90269-04051 | ||||
| 90467-08225 | ||||
| 90467-09206 | ||||
