ZVG10L-GHXGBG (2021)
Toyota Corolla Cross

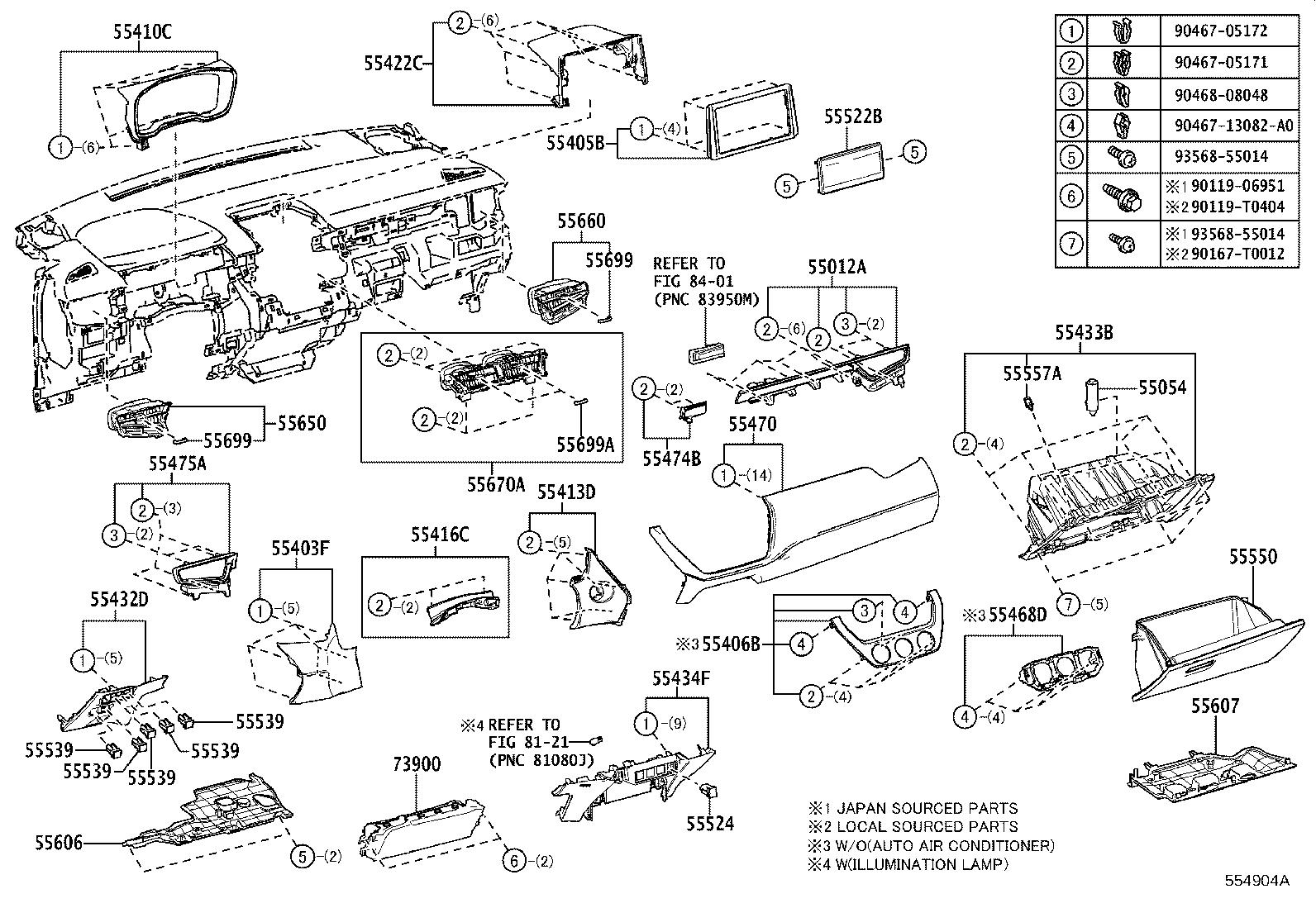

ILLUST NO. 2 OF 2(2103- )BZP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-02230C0 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 55012-02240C1 |
ZSG10,ZVG10..L,M BLACK/BLACK,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-0A030A0 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) FROMAGE,TRIM0# |
1 | ||
| 55403-0A030C0 |
MXGA10,ZVG10..BZP BLACK,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02G10B0 |
ZVG10..BZP..E SILVER,TRIM0#,2# |
1 | ||
| 55405-02G00 |
ZVG10..BZP..G;MXGA10..E..GEN;MXGA10..AGT,BZ |
1 | ||
| 55405-0A040C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-0A130C0 |
MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 55410-0A140C0 |
ZVG10..BZP..E BLACK/SILVER,TRIM0#,2# |
1 | ||
| 55410-0A150C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-0A060C0 |
ZVG10..BZP;MXGA10..E..BZ BLACK,TRIM2# |
1 | ||
| 55413-0A060A0 |
MXGA10..E..BZ;ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) FROMAGE,TRIM0# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02280 |
MXGA10,ZVG10..BZP |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-0A050C0 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-0A050C0 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 55432-0A040C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-02630C0 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 55433-02620C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0A050C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55434-0A070C0 |
ZVG10..BZP..E;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-0A030A0 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) FROMAGE,TRIM0# |
1 | ||
| 55470-0A030C0 |
MXGA10,ZVG10..BZP BLACK,TRIM2# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-0A230C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55474-02230B0 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) SILVER,TRIM0#,2# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-02190C1 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 55475-0A080C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-02030C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02220C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02220C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02220C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02220C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02220C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02600C0 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 55550-02580C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02380 |
MXGA10,ZVG10..BZP |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02A21 |
MXGA10,ZVG10..BZP |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02591 |
MXGA10,ZVG10..BZP |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02A11 |
MXGA10,ZVG10..BZP |
1 | ||
| 55699 - KNOB, INSTRUMENT PANEL REGISTER CONTROL | ||||
| 55699-02281 |
MXGA10,ZVG10..BZP |
2 | ||
| 55699 - KNOB, INSTRUMENT PANEL REGISTER CONTROL | ||||
| 55699-02281 |
MXGA10,ZVG10..BZP |
2 | ||
| 55699A - KNOB, INSTRUMENT PANEL REGISTER CONTROL NO.2 | ||||
| 55699-02281 |
MXGA10,ZVG10..BZP |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0A010C0 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 73900-0A010C0 |
MXGA10..G,N;ZVG10..G..AGT;ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90167-T0012 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-13082A0 | ||||
| 90468-08048 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
