ZVG10L-GHXGBG (2021)
Toyota Corolla Cross
Production
Mar 2021
-
Sep 9999
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

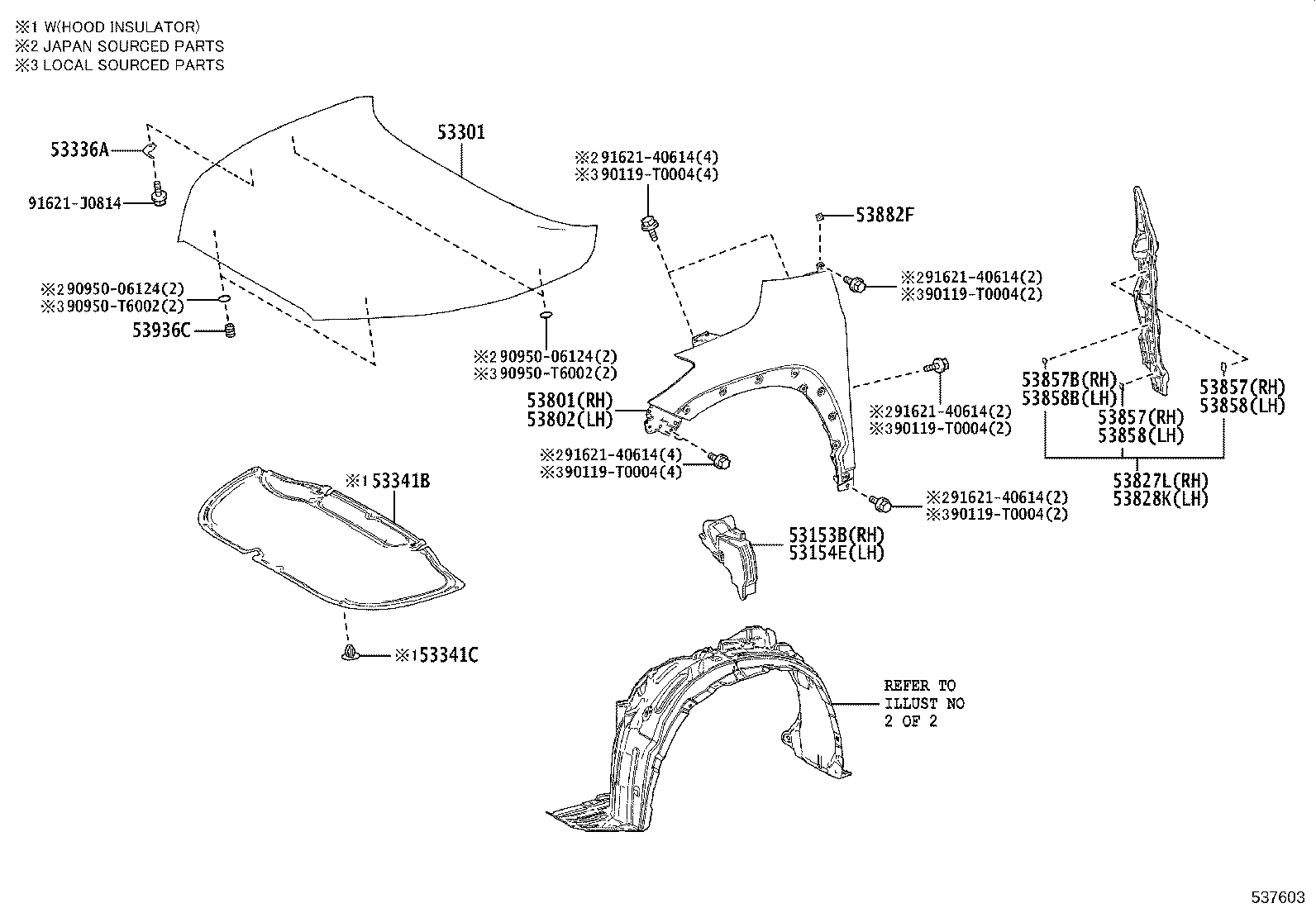

ILLUST NO. 1 OF 2(2103- )BZP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153B - GUIDE, FRONT SIDE AIR | ||||
| 53153-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 53154E - GUIDE, FRONT SIDE AIR, NO.2 | ||||
| 53154-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-0A040 |
MXGA10,ZVG10..BZP |
1 | ||
| 53336A - BRACKET, HOOD STAY | ||||
| 53336-02080 |
MXGA10,ZVG10..BZP |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-0A030 |
ZVG10..BZP |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
ZVG10..BZP |
6 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-12010 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-12010 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
MXGA10,ZSG10,ZVG10 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-33060 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 53936C - CUSHION | ||||
| 90541-09145 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| Common parts | ||||
| 90119-T0004 | ||||
| 90950-06124 | ||||
| 90950-T6002 | ||||
| 91621-40614 | ||||
| 91621-J0814 | ||||

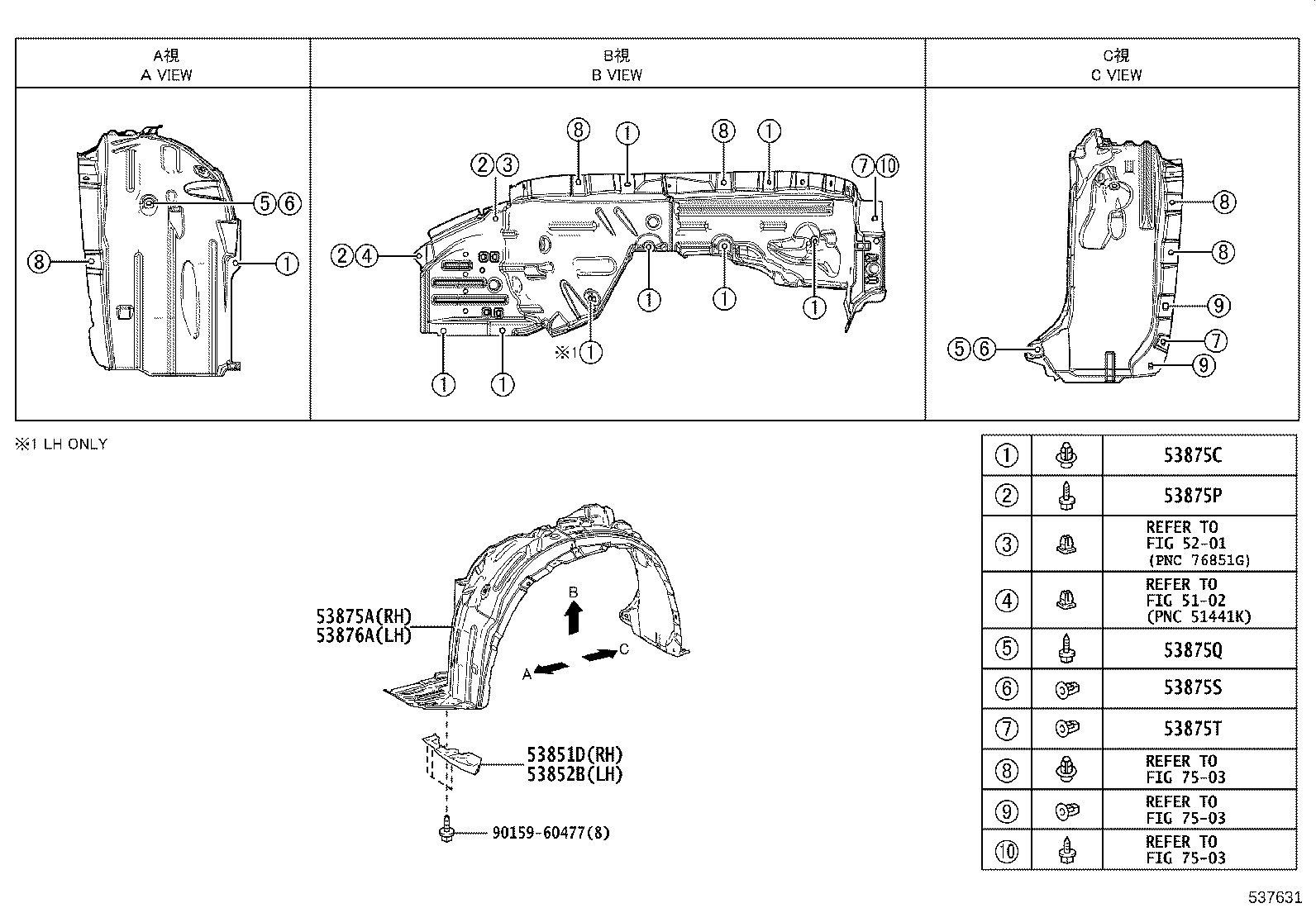

ILLUST NO. 2 OF 2(2103- )BZP
Click highlighted areas on diagram
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-0A080 |
ZVG10..BZP |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60477 |
MXGA10,ZSG10,ZVG10 |
4 | ||
| 53875Q - SCREW, NO.2 | ||||
| 90159-60623 |
MXGA10,ZSG10,ZVG10 |
4 | ||
| 53875S - GROMMET, NO.1 | ||||
| 90189-06006 |
MXGA10,ZSG10,ZVG10 |
4 | ||
| 53875T - GROMMET, NO.2 | ||||
| 90189-06065 |
MXGA10,ZVG10..BZP |
4 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-0A090 |
ZVG10..BZP |
1 | ||
| Common parts | ||||
| 90159-60477 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
| 7503 | ||||
