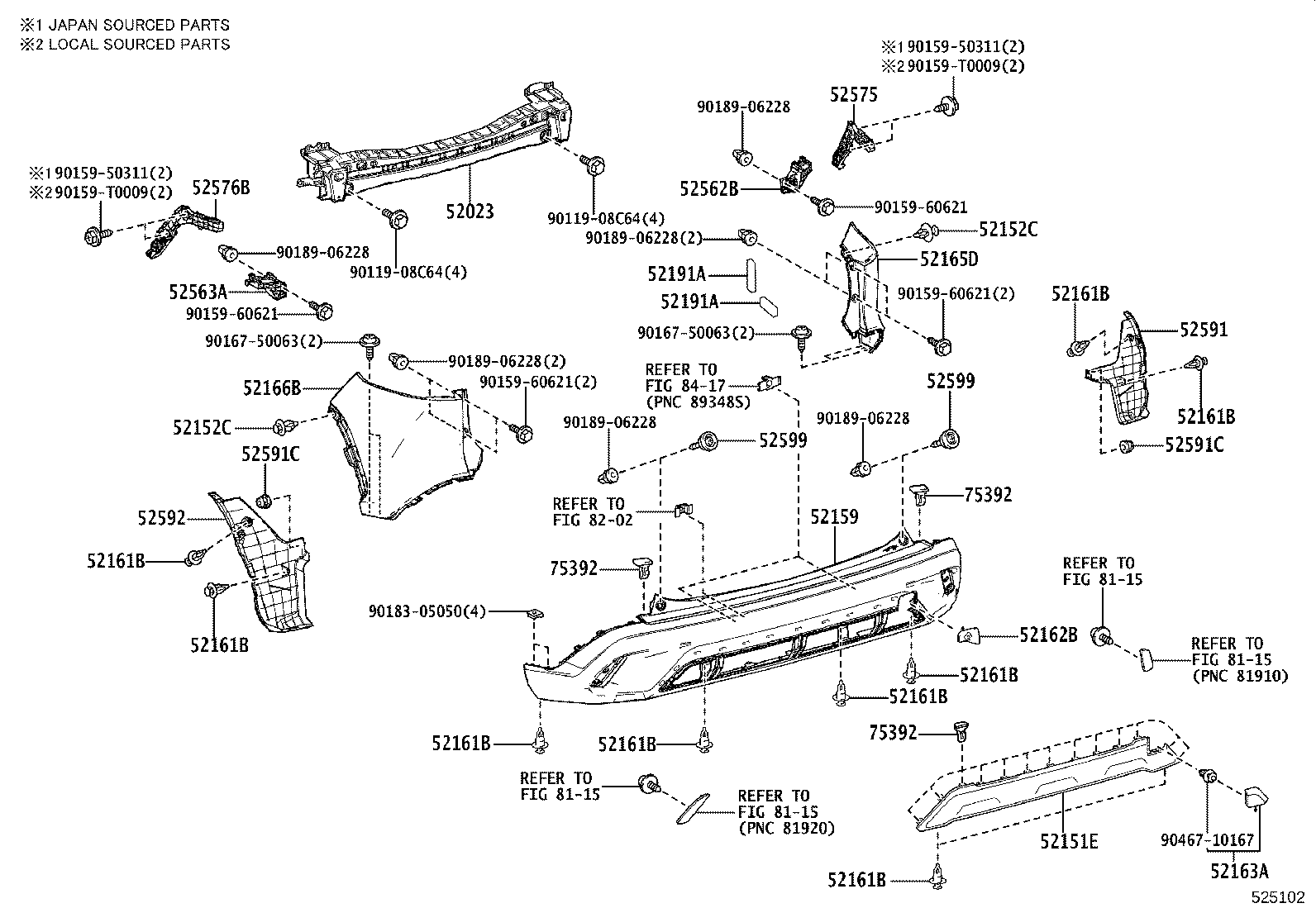

ZVG10L-GHXGBG (2021)
Toyota Corolla Cross
(2106- )L,M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52151E - BAR, REAR BUMPER | ||||
| 52151-YY060 |
ZSG10,ZVG10..L,M NO PAINT REQ. |
1 | ||
| 52151-0A902 |
MXGA10,ZVG10..BZP PAINT REQ. |
1 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-07215 |
MXGA10,ZVG10..BZP TYPE A:REFER ILLUST. |
2 | ||
| 90467-07220 |
MXGA10,ZVG10..BZP TYPE B:REFER ILLUST. |
2 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-07215 |
MXGA10,ZVG10..BZP TYPE A:REFER ILLUST. |
2 | ||
| 90467-07220 |
MXGA10,ZVG10..BZP TYPE B:REFER ILLUST. |
2 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-0A150 |
ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) NO PAINT REQ. |
1 | ||
| 52159-YY050 |
ZSG10,ZVG10..L,M NO PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MXGA10,ZVG10..BZP (J) |
8 | ||
| 52161-0K040 |
MXGA10,ZVG10..BZP (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MXGA10,ZVG10..BZP (J) |
8 | ||
| 52161-0K040 |
MXGA10,ZVG10..BZP (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MXGA10,ZVG10..BZP (J) |
8 | ||
| 52161-0K040 |
MXGA10,ZVG10..BZP (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MXGA10,ZVG10..BZP (J) |
8 | ||
| 52161-0K040 |
MXGA10,ZVG10..BZP (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MXGA10,ZVG10..BZP (J) |
8 | ||
| 52161-0K040 |
MXGA10,ZVG10..BZP (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MXGA10,ZVG10..BZP (J) |
8 | ||
| 52161-0K040 |
MXGA10,ZVG10..BZP (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MXGA10,ZVG10..BZP (J) |
8 | ||
| 52161-0K040 |
MXGA10,ZVG10..BZP (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MXGA10,ZVG10..BZP (J) |
8 | ||
| 52161-0K040 |
MXGA10,ZVG10..BZP (L) |
8 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MXGA10,ZVG10..BZP (J) |
8 | ||
| 52161-0K040 |
MXGA10,ZVG10..BZP (L) |
8 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-YY020 |
ZSG10,ZVG10..L,M |
1 | ||
| 52162-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-0A901 |
MXGA10,ZVG10..BZP |
1 | ||
| 52163-YY902 |
ZSG10,ZVG10..L,M |
1 | ||
| 52165D - EXTENSION, REAR BUMPER CORNER, RH | ||||
| 52165-0A902 |
MXGA10,ZVG10..BZP |
1 | ||
| 52166B - EXTENSION, REAR BUMPER CORNER, LH | ||||
| 52166-0A902 |
MXGA10,ZVG10..BZP |
1 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 52576B - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-0A040 |
MXGA10,ZVG10..BZP |
1 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-06206C0 |
MXGA10,ZSG10,ZVG10 BLACK |
2 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-06206C0 |
MXGA10,ZSG10,ZVG10 BLACK |
2 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 52599 - STOPPER, REAR BUMPER, UPPER | ||||
| 52599-68030 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 52599 - STOPPER, REAR BUMPER, UPPER | ||||
| 52599-68030 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZSG10,ZVG10..L,M |
15 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZSG10,ZVG10..L,M |
15 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZSG10,ZVG10..L,M |
15 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
| 90159-60621 | ||||
| 90159-T0009 | ||||
| 90167-50063 | ||||
| 90183-05050 | ||||
| 90189-06228 | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8202 | ||||
| 8417 | ||||
