ZVG10L-GHXGBG (2021)
Toyota Corolla Cross
Production
Mar 2021
-
Sep 9999
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 3 OF 3(2103- )BZP
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|

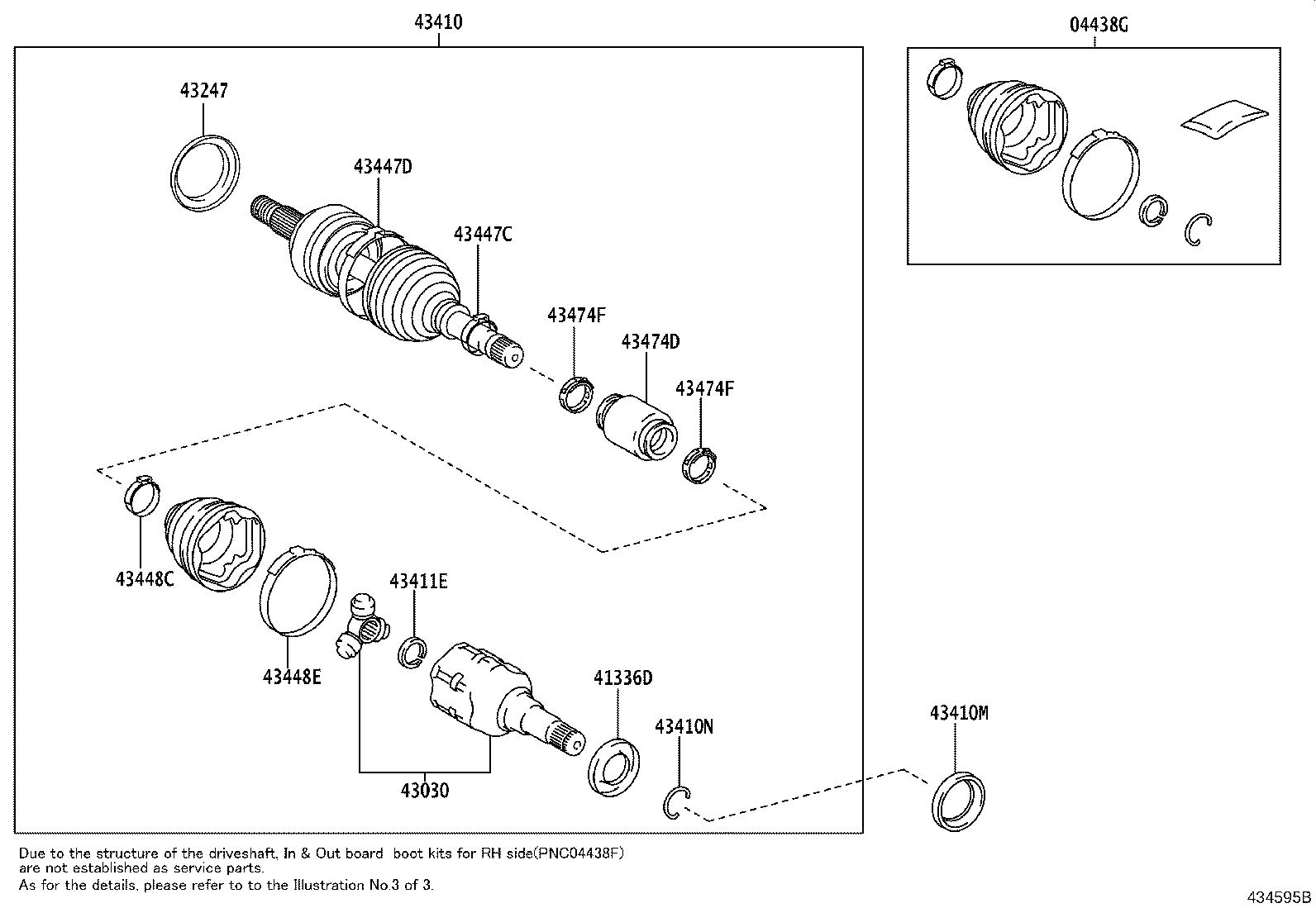

ILLUST NO. 2 OF 3(2103- )ZVG10..BZP
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-02910 |
MXGA10,ZVG10..BZP |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-02210 |
ZVG10..BZP |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-02170 |
ZVG10..BZP |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-0A110 |
ZVG10..BZP |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-40038 |
ZVG10 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 43425-02510 |
MXGA10,ZVG10..BZP |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-02640 |
MXGA10,ZVG10..BZP |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-02B00 |
MXGA10,ZVG10..BZP |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-02A90 |
MXGA10,ZVG10..BZP |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-02B00 |
MXGA10,ZVG10..BZP |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-02E20 |
MXGA10,ZVG10..BZP |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-0A050 |
MXGA10,ZVG10..BZP |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-02F50 |
MXGA10,ZVG10..BZP |
2 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-02F50 |
MXGA10,ZVG10..BZP |
2 | ||

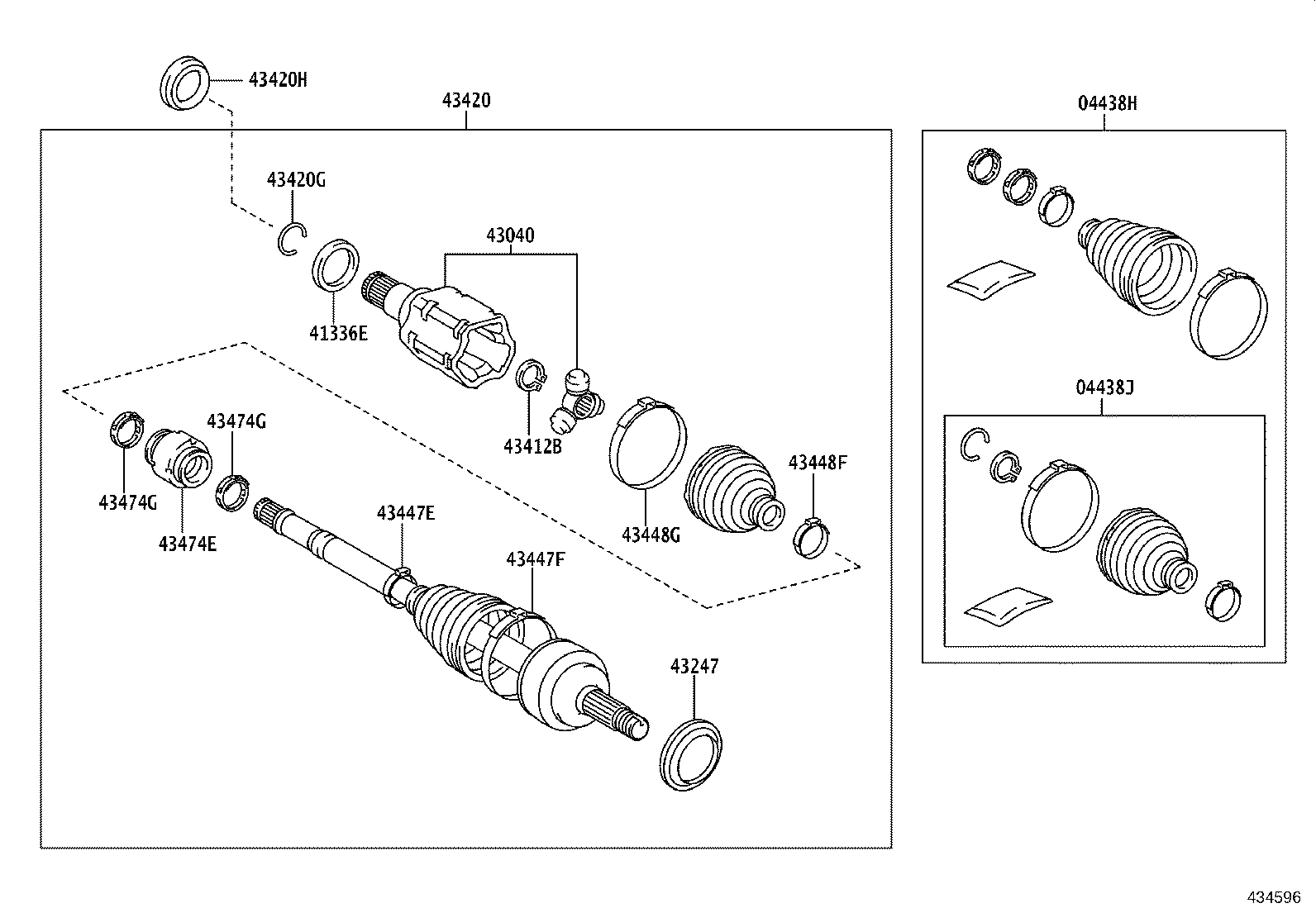

ILLUST NO. 1 OF 3(2103- )ZVG10..BZP
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-02900 |
MXGA10,ZVG10..BZP |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-02650 |
MXGA10,ZVG10..BZP |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-02220 |
ZVG10..BZP |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-02311 |
ZVG10..BZP |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-02540 |
MXGA10,ZVG10..BZP |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-0A110 |
ZVG10..BZP |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 43425-02510 |
MXGA10,ZVG10..BZP |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50064 |
ZVG10 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-02B00 |
MXGA10,ZVG10..BZP |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-02A90 |
MXGA10,ZVG10..BZP |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-02B00 |
MXGA10,ZVG10..BZP |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-0A070 |
MXGA10,ZVG10..BZP |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-02740 |
MXGA10,ZVG10..BZP |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-02A70 |
MXGA10,ZVG10..BZP |
2 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-02A70 |
MXGA10,ZVG10..BZP |
2 | ||
