ZVG10L-GHXGBG (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )ZVG10..BZP

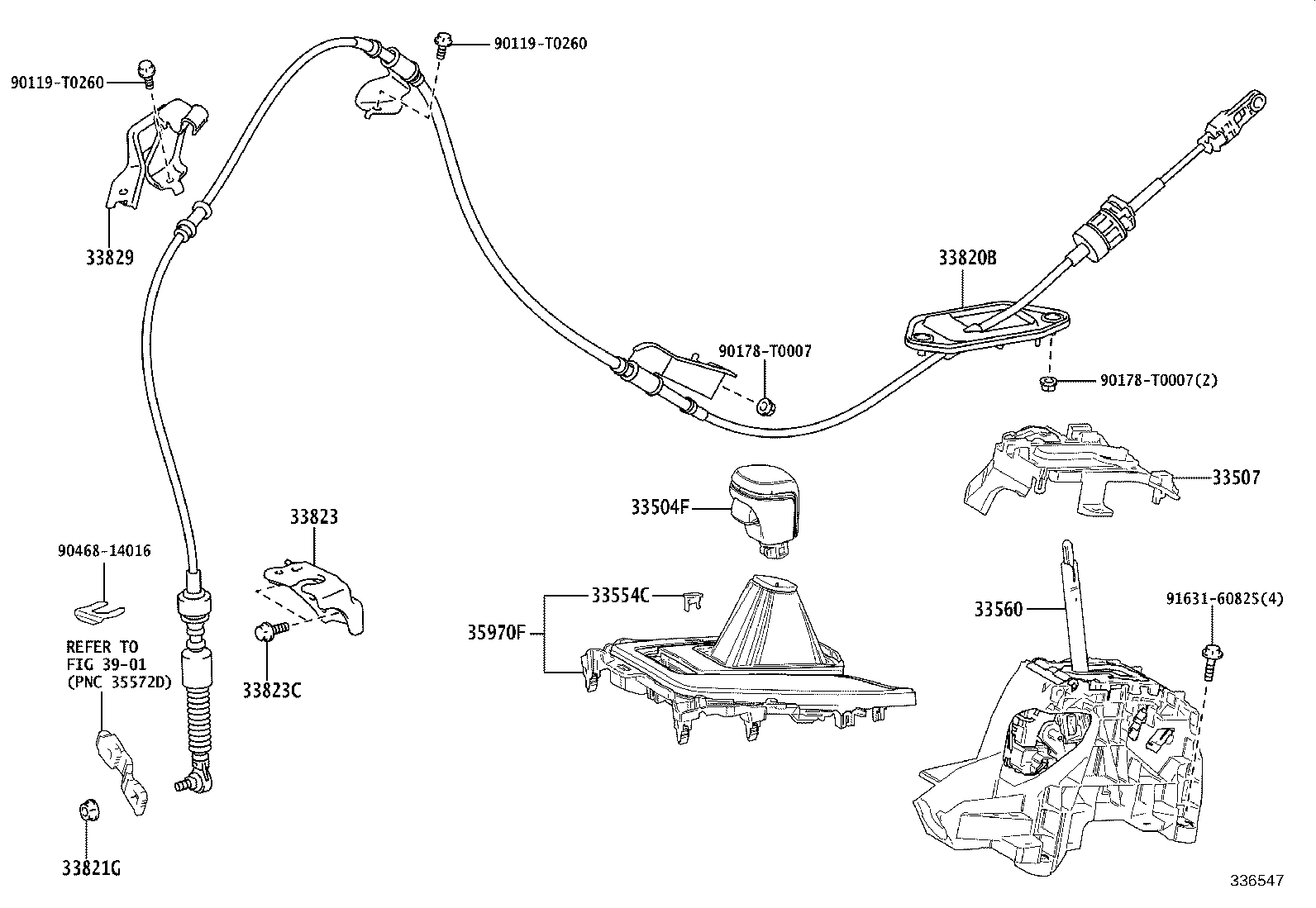

Click highlighted areas on diagram

diagram 33504F 33507 33554C 33560 33820B 33821G 33823 33823C 33829 35970F 3901 90119T0260 90119T0260 90178T0007 90178T0007 9046814016 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-02860C0

ZSG10,ZVG10..L,M

BLACK,TRIM2#

 1
33504-12800C0

MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-02060

MXGA10,ZVG10..BZP

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-02260

MXGA10,ZVG10..BZP

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-02600

ZVG10..BZP

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0A050

ZVG10..BZP

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-10030

ZVG10..BZP,THP

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-10011

ZVG10..BZP,THP

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-02250C1

ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN)

BLACK,TRIM0#,2#

 1
35970-02370C1

ZVG10..L,M

BLACK/SILVER,TRIM2#

 1
Common parts
90119-T0260
90178-T0007
90468-14016
91631-60825
Linked diagrams
3901
