ZVG10L-GHXGBG (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )2ZRFXE..BZP..BZ,GEN

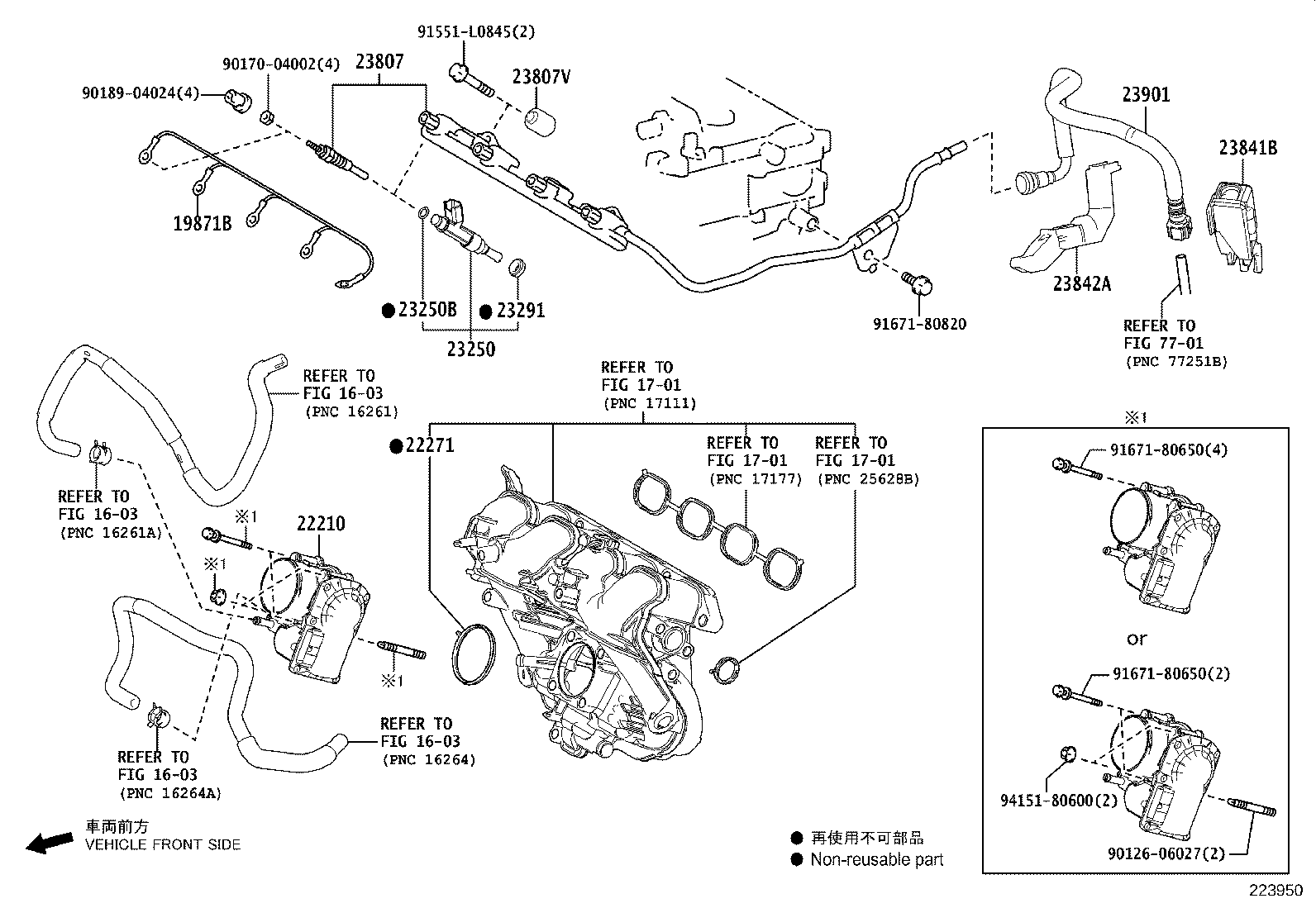

Click highlighted areas on diagram

WITH GLOW PLUG

diagram 1603 1603 1603 1603 1701 1701 1701 19871B 22210 22271 23250 23250B 23291 23807 23807V 23841B 23842A 23901 7701 9012606027 9017004002 9018904024 91551L0845 9167180650 9167180650 9167180820 9415180600
Part # Description Qty Price
19871B - CONNECTOR, GLOW PLUG NO.1
19871-37010

2ZRFXE..ZVG10..BZ

 1
22210 - BODY ASSY, THROTTLE
22030-37060

2ZRFXE..ZVG10..BZP

 1
22271 - GASKET, THROTTLE BODY
22271-37020

2ZRFXE..ZVG10

 1
23250 - INJECTOR ASSY, FUEL
23209-39345

2ZRFXE..ZVG10..BZ

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

2ZRFXE..ZVG10

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-28020

2ZRFXE..ZVG10..BZ

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-37020

2ZRFXE..ZVG10..BZ

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-37010

2ZR#..ZSG10,ZVG10

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-37081

2ZRFXE..ZVG10..BZP

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23841-37131

2ZRFXE..ZVG10

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0T410

2ZRFXE..ZVG10..BZP

 1
Common parts
90126-06027
90170-04002
90189-04024
91551-L0845
91671-80650
91671-80820
94151-80600
Linked diagrams
1603
1701
7701
