ZVG10L-GHXGB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

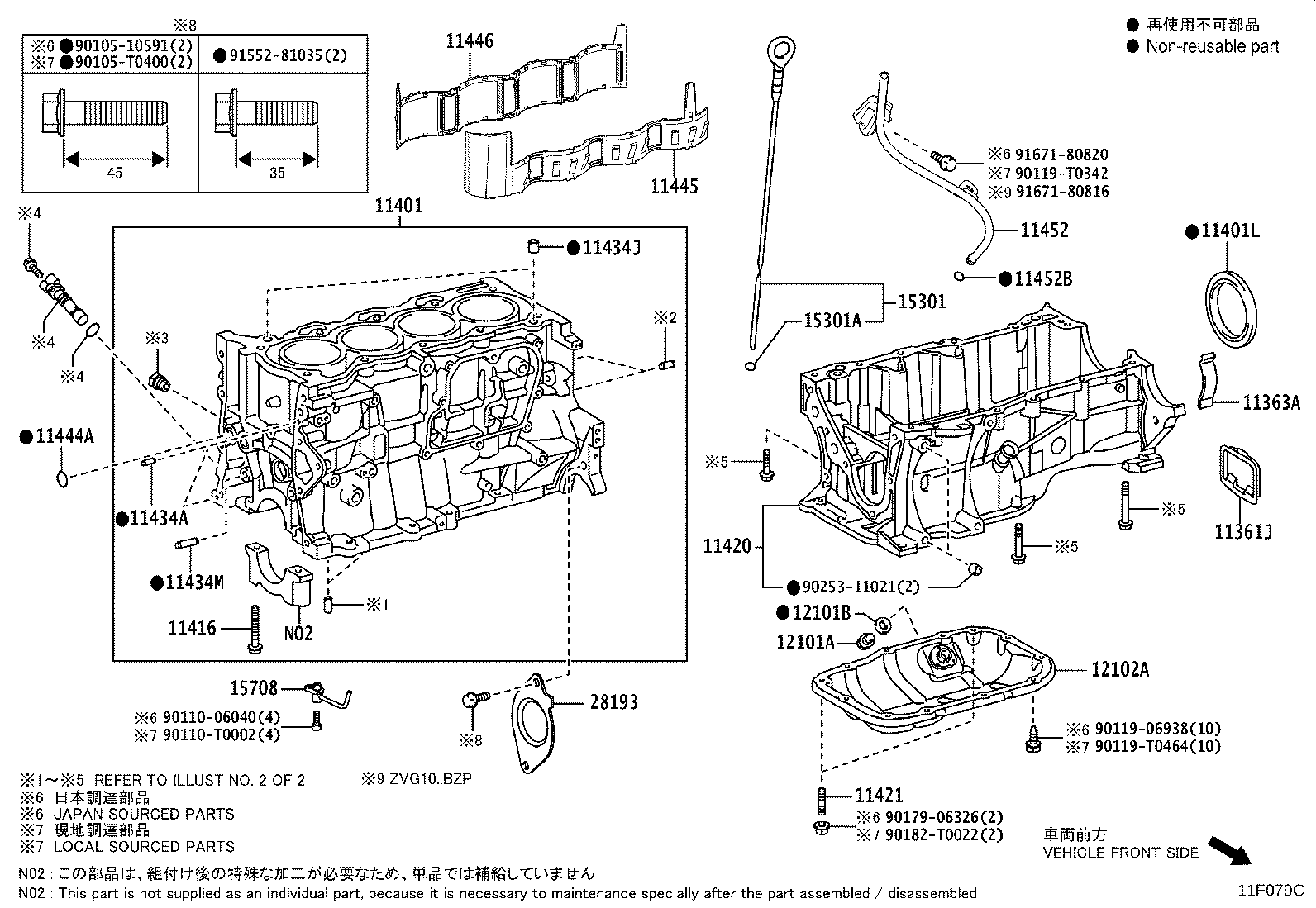

ILLUST NO. 1 OF 2(2007- )2ZRFXE

Click highlighted areas on diagram

diagram 11361J 11363A 11401 11401L 11416 11420 11421 11434A 11434J 11434M 11444A 11445 11446 11452 11452B 12101A 12101B 12102A 15301 15301A 15708 28193 9010510591 90105T0400 9011006040 90110T0002 9011906938 90119T0342 90119T0464 9017906326 90182T0022 9025311021 9155281035 9167180816 9167180820
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-21011

2ZRFXE..ZVG10..BZP;2ZRFBE,2ZRFE..ZSG10

 1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-21010

2ZR#..ZSG10,ZVG10

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-39226

2ZRFXE..ZVG10..BZP

 1
11401L - SEAL, ENGINE REAR OIL
90311-T0088

2ZRFE,2ZRFXE..ZSG10,ZVG10..L,M

 1
90311-78008

2ZRFXE..ZVG10..BZP

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02163

2ZRFXE..ZVG10..BZP

 10
11420 - CRANKCASE ASSY, STIFFENING
11420-37030

2ZRFXE..ZVG10..BZP

 1
11421 - BOLT, STUD(FOR OIL PAN)
90126-06028

2ZR#..ZSG10,ZVG10

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

2ZR#..ZSG10,ZVG10

L=12,OD=4.0

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13001

2ZR#..ZSG10,ZVG10

 2
11434M - PIN, STRAIGHT(FOR CHAIN TENSIONER)
90250-10030

2ZRFXE..ZVG10..BZP

 1
11444A - RING, O
96723-24020

2ZRFXE..ZVG10..BZP

 1
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-37010

2ZRFXE..ZVG10

 1
11446 - SPACER, CYLINDER BLOCK WATER JACKET, LH
11446-37010

2ZRFXE..ZVG10

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-37040

2ZRFXE..ZVG10..BZP

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

2ZRFXE..ZVG10..BZP

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2ZR#..ZSG10,ZVG10

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2ZRFXE..ZVG10..BZP

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-37010

2ZRFXE..ZVG10..BZP

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-37010

2ZR#..ZSG10,ZVG10

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

2ZR#..ZSG10,ZVG10

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-37012

2ZRFXE..ZVG10..BZP

 4
28193 - INSULATOR, STARTER HOLE
28193-21010

2ZRFXE..ZVG10..BZP,THP

 1
Common parts
90105-10591
90105-T0400
90110-06040
90110-T0002
90119-06938
90119-T0342
90119-T0464
90179-06326
90182-T0022
90253-11021
91552-81035
91671-80816
91671-80820

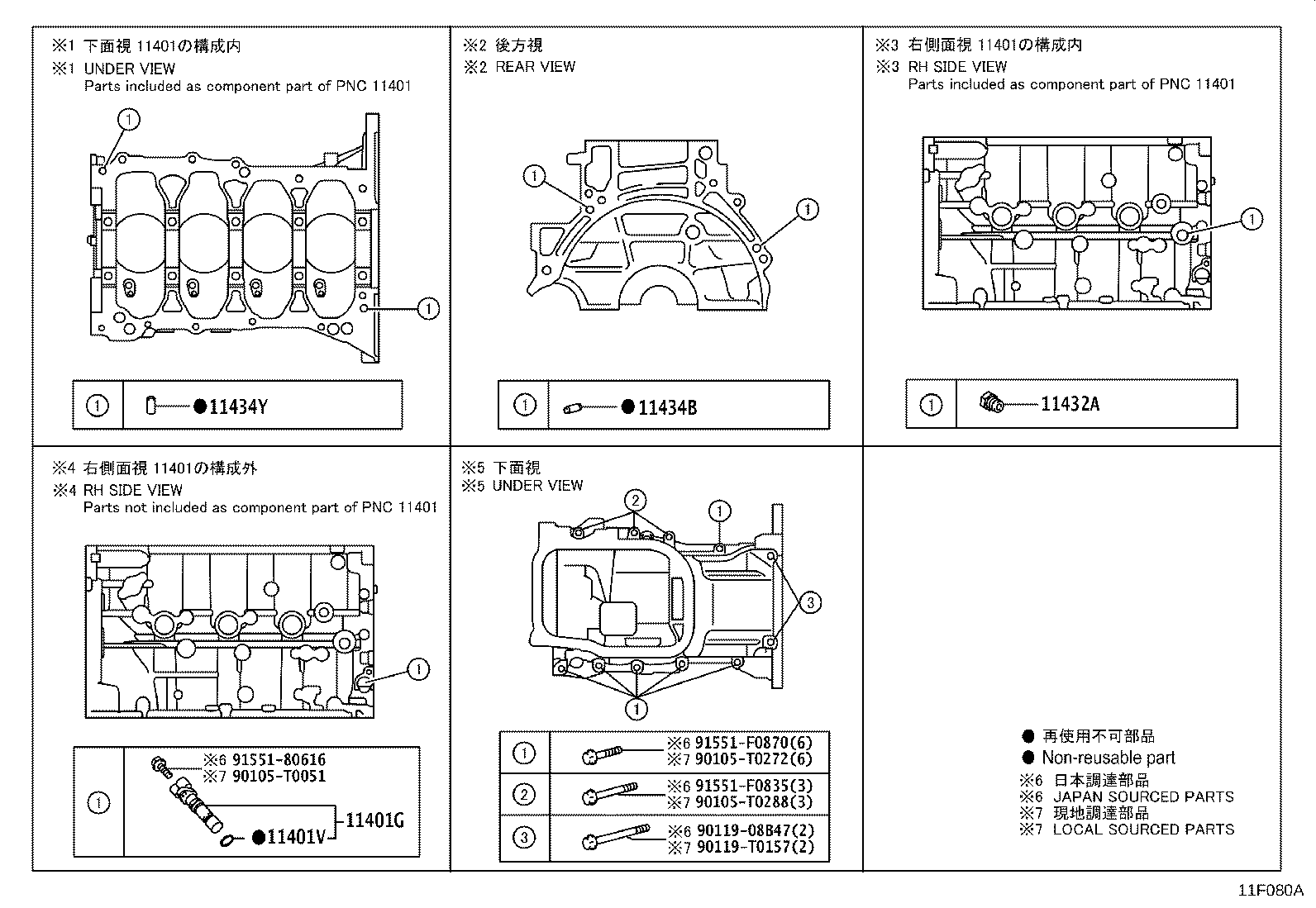

ILLUST NO. 2 OF 2(2007- )2ZR#

Click highlighted areas on diagram

diagram 11401G 11401V 11432A 11434B 11434Y 90105T0051 90105T0272 90105T0288 9011908B47 90119T0157 9155180616 91551F0835 91551F0870
Part # Description Qty Price
11401G - SENSOR, CRANK POSITION
90919-05070

2ZR#..ZSG10,ZVG10

 1
11401V - O-RING, CRANK POSITION SENSOR
90301-14016

2ZR#..ZSG10,ZVG10

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-53006

2ZR#..ZSG10,ZVG10

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

2ZRFXE..ZVG10..BZP

L=22,OD=10

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-08120

2ZRFXE..ZVG10..BZP

 2
Common parts
90105-T0051
90105-T0272
90105-T0288
90119-08B47
90119-T0157
91551-80616
91551-F0835
91551-F0870
