ZVG10L-GHXGB (2021)
Toyota Corolla Cross
Production
Mar 2021
-
Sep 9999
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )ZVG10

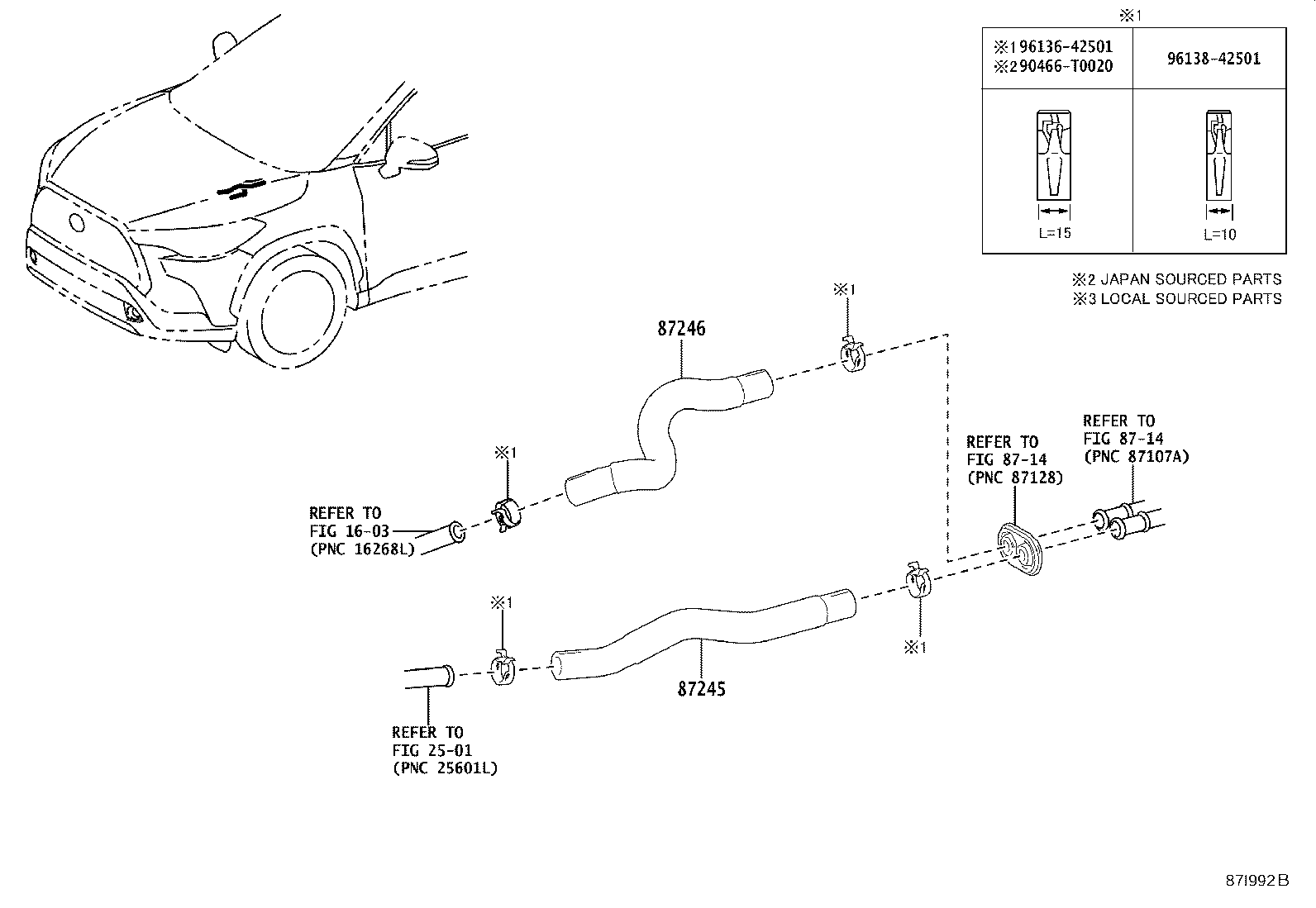

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-02T90 |
ZVG10..BZP |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-02U00 |
ZVG10..BZP |
1 | ||
| Common parts | ||||
| 90466-T0020 | ||||
| 96136-42501 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 2501 | ||||
| 8714 | ||||
