ZVG10L-GHXGB (2021)
Toyota Corolla Cross
Production
Mar 2021
-
Sep 9999
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )ZVG10

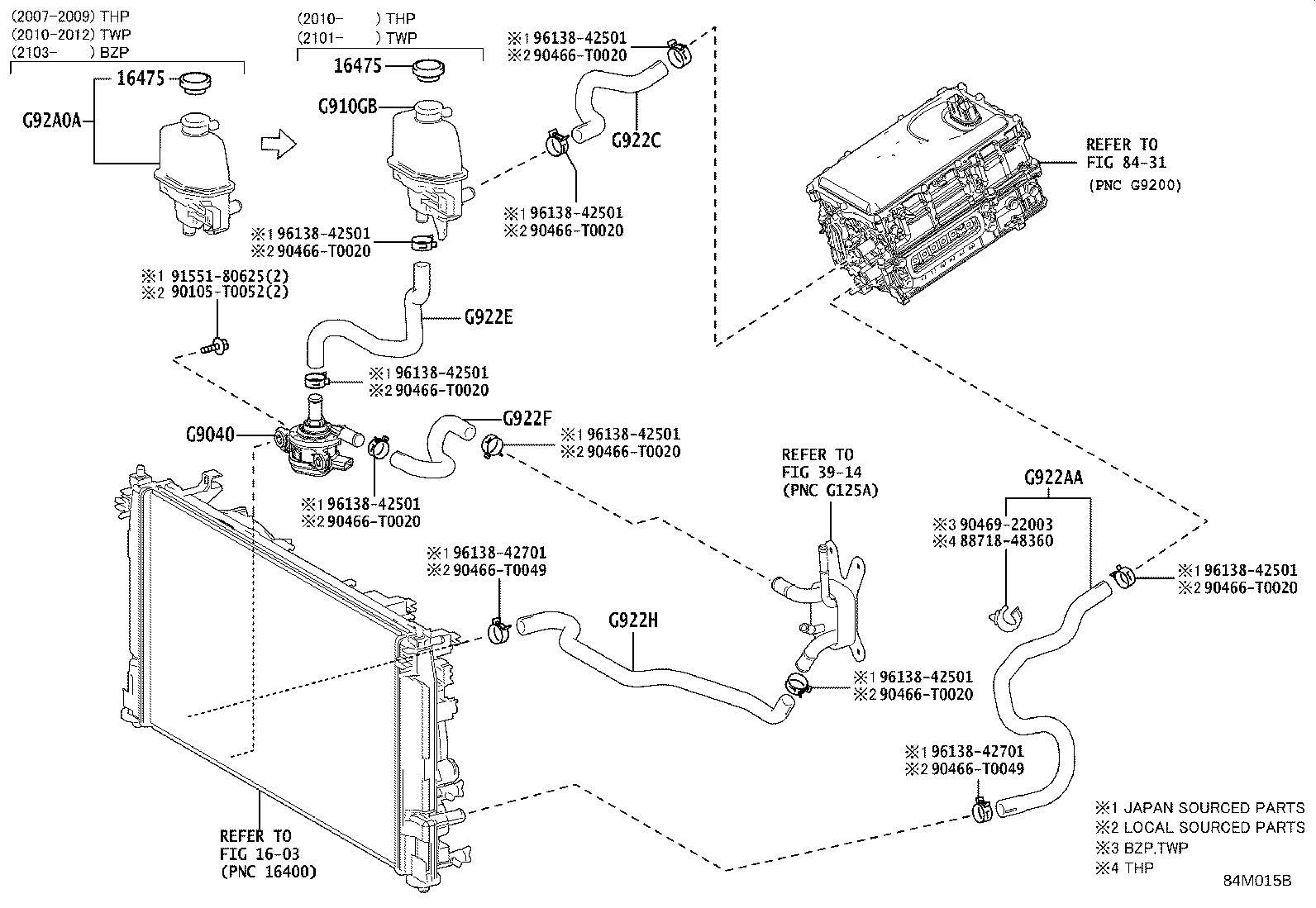

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16475 - CAP, RESERVE TANK | ||||
| 16475-28140 |
2ZRFXE..ZVG10 |
1 | ||
| 16475 - CAP, RESERVE TANK | ||||
| 16475-28140 |
2ZRFXE..ZVG10 |
1 | ||
| G9040 - INVERTER WATER PUMP ASSY(W/MOTOR) | ||||
| G9040-47040 |
ZVG10 |
1 | ||
| G922AA - HOSE, INVERTER COOLING INLET, NO.1 | ||||
| G922A-47010 |
ZVG10..BZP |
1 | ||
| G922C - HOSE, INVERTER COOLING OUTLET, NO.1 | ||||
| G922C-47010 |
ZVG10..BZP |
1 | ||
| G922E - HOSE, HYBRID WATER PUMP INLET | ||||
| G922E-47010 |
ZVG10..BZP |
1 | ||
| G922F - HOSE, HYBRID WATER PUMP OUTLET, NO.1 | ||||
| G922F-47010 |
ZVG10..BZP |
1 | ||
| G922H - HOSE, HYBRID RADIATOR INLET | ||||
| G922H-47010 |
ZVG10..BZP |
1 | ||
| G92A0A - TANK ASSY, INVERTER RESERVE | ||||
| G91H0-02080 |
ZVG10..BZP |
1 | ||
| Common parts | ||||
| 88718-48360 | ||||
| 90105-T0052 | ||||
| 90466-T0020 | ||||
| 90466-T0049 | ||||
| 90469-22003 | ||||
| 91551-80625 | ||||
| 96138-42501 | ||||
| 96138-42701 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3914 | ||||
| 8431 | ||||
