ZVG10L-GHXGB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999

Engine 2ZRFXE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(2007- )ZVG10

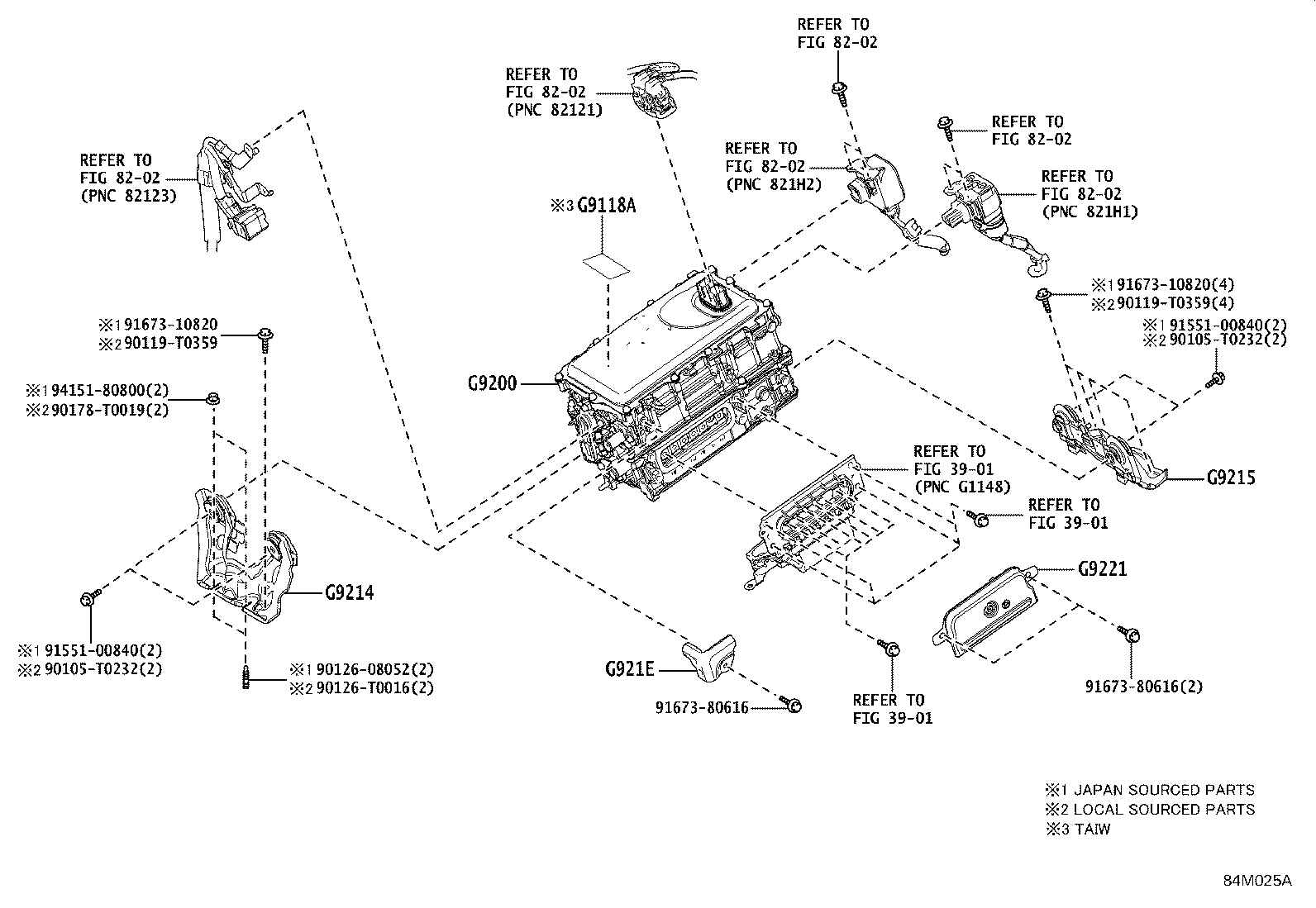

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
G9200 - INVERTER ASSY, W/CONVERTER
G92A0-12041	ZVG10..BZP..GEN PARAGUAY SPEC	03/2021 - 04/2021	1
G92A0-12042	ZVG10..BZ	05/2021 - 12/2999	1
G92A0-47101	ZVG10..(BZP,TWP)..(AGT,GCC,GEN,TAIW)	05/2021 - 12/2999	1
G92A0-12042	ZVG10..BZP..GEN PARAGUAY SPEC	05/2021 - 12/2999	1
G92A0-12041	ZVG10..BZ	03/2021 - 04/2021	1
G9214 - BRACKET, INVERTER, NO.1
G9214-47070	ZVG10	07/2020 - 12/2999	1
G9215 - BRACKET, INVERTER, NO.2
G9215-47050	ZVG10	07/2020 - 12/2999	1
G921E - PROTECTOR, INVERTER
G921E-47010	ZVG10	07/2020 - 12/2999	1
G9221 - COVER, INVERTER
G9022-47050	ZVG10	07/2020 - 12/2999	1
Common parts
90105-T0232
90119-T0359
90126-08052
90126-T0016
90178-T0019
91551-00840
91673-10820
91673-80616
94151-80800
Linked diagrams
3901
8202
