ZVG10L-GHXGB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(2007- )ZVG10

Click highlighted areas on diagram

12V BATTERY

diagram 28800 28800A 28800D 28899 8202 8202 8202 8202 82671R 8401 8401 8401 90178T0056 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-0D442

M20AFKS,2ZRFXE..MXGA10,ZVG10..BZP

LN1

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

2ZRFXE..ZVG10

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82621-47020

2ZRFXE..ZVG10

 1
82671R - STOPPER, BATTERY TERMINAL
82671-47040

ZVG10

 1
Common parts
90178-T0056
94151-80801
Linked diagrams
8202
8401

ILLUST NO. 2 OF 4(2007- )ZVG10

Click highlighted areas on diagram

HV BATTERY

diagram 5804 5804 82685E 9011906951 90119T0404 9046706121 G9230 G92D1 G92D1A G92DH G92F1
Part # Description Qty Price
82685E - PLATE, SERVICE PLUG CAUTION
82685-47110

ZVG10

 1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-47080

ZVG10

 1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92E1-47040

ZVG10

 1
G92D1A - DUCT, EV BATTERY INTAKE, NO.1
G92D1-12030

ZVG10

 1
G92DH - FILTER, HV BATTERY INTAKE, NO.1
G92DH-12050

ZVG10

 1
G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1
G92F1-47050

ZVG10

 1
Common parts
90119-06951
90119-T0404
90467-06121
Linked diagrams
5804

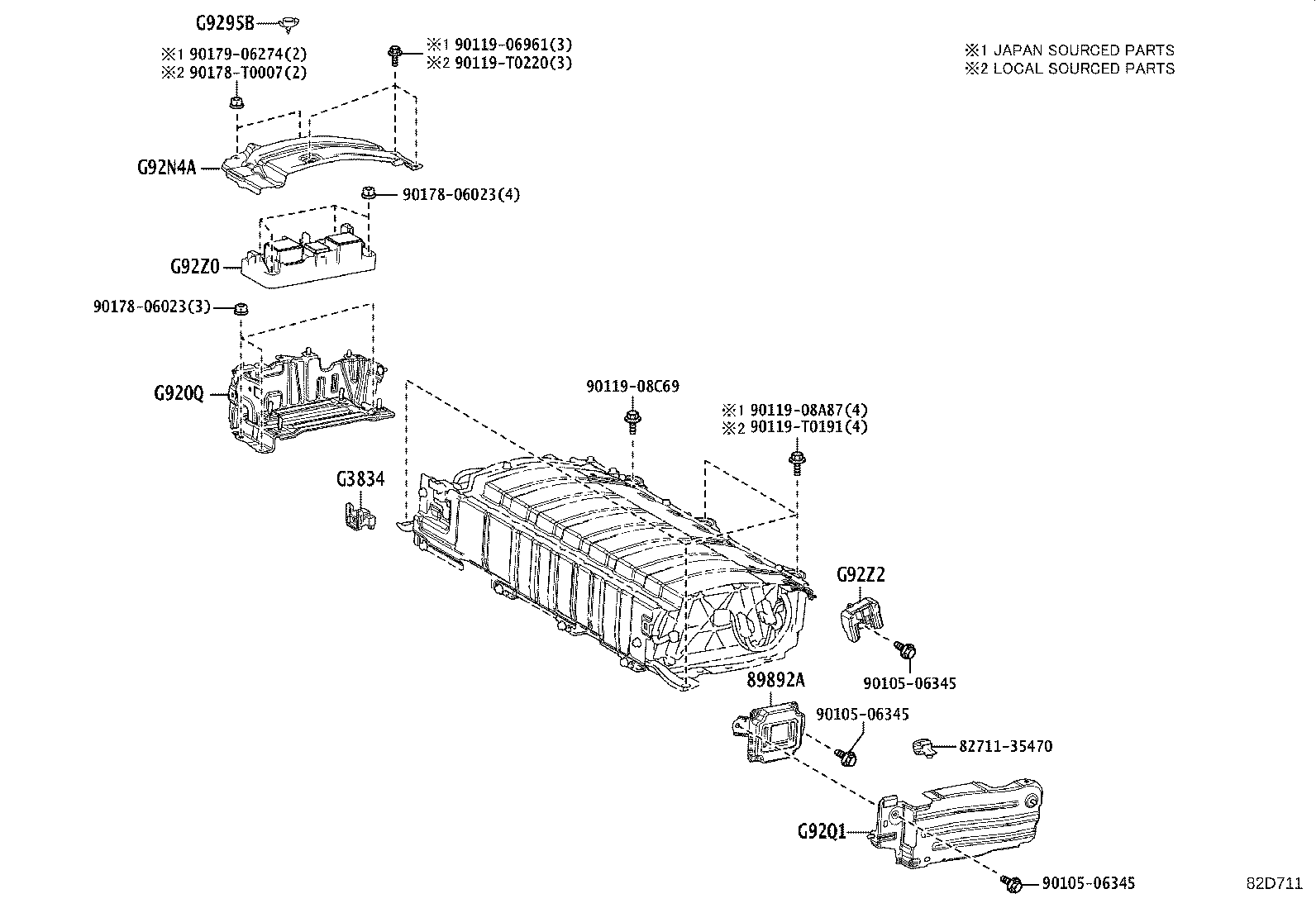

ILLUST NO. 3 OF 4(2007- )ZVG10

Click highlighted areas on diagram

HV BATTERY

diagram 8271135470 89892A 9010506345 9010506345 9010506345 9011906961 9011908A87 9011908C69 90119T0191 90119T0220 9017806023 9017806023 90178T0007 9017906274 G3834 G920Q G9295B G92N4A G92Q1 G92Z0 G92Z2
Part # Description Qty Price
89892A - SENSOR, BATTERY VOLTAGE
89892-47050

ZVG10

 1
G3834 - GRIP, SERVICE PLUG
G3834-47050

ZVG10

 1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020

ZVG10

 1
G92Z2 - BLOCK, HYBRID BATTERY TERMINAL
G92Z2-47070

ZVG10

 1
Common parts
82711-35470
90105-06345
90119-06961
90119-08A87
90119-08C69
90119-T0191
90119-T0220
90178-06023
90178-T0007
90179-06274

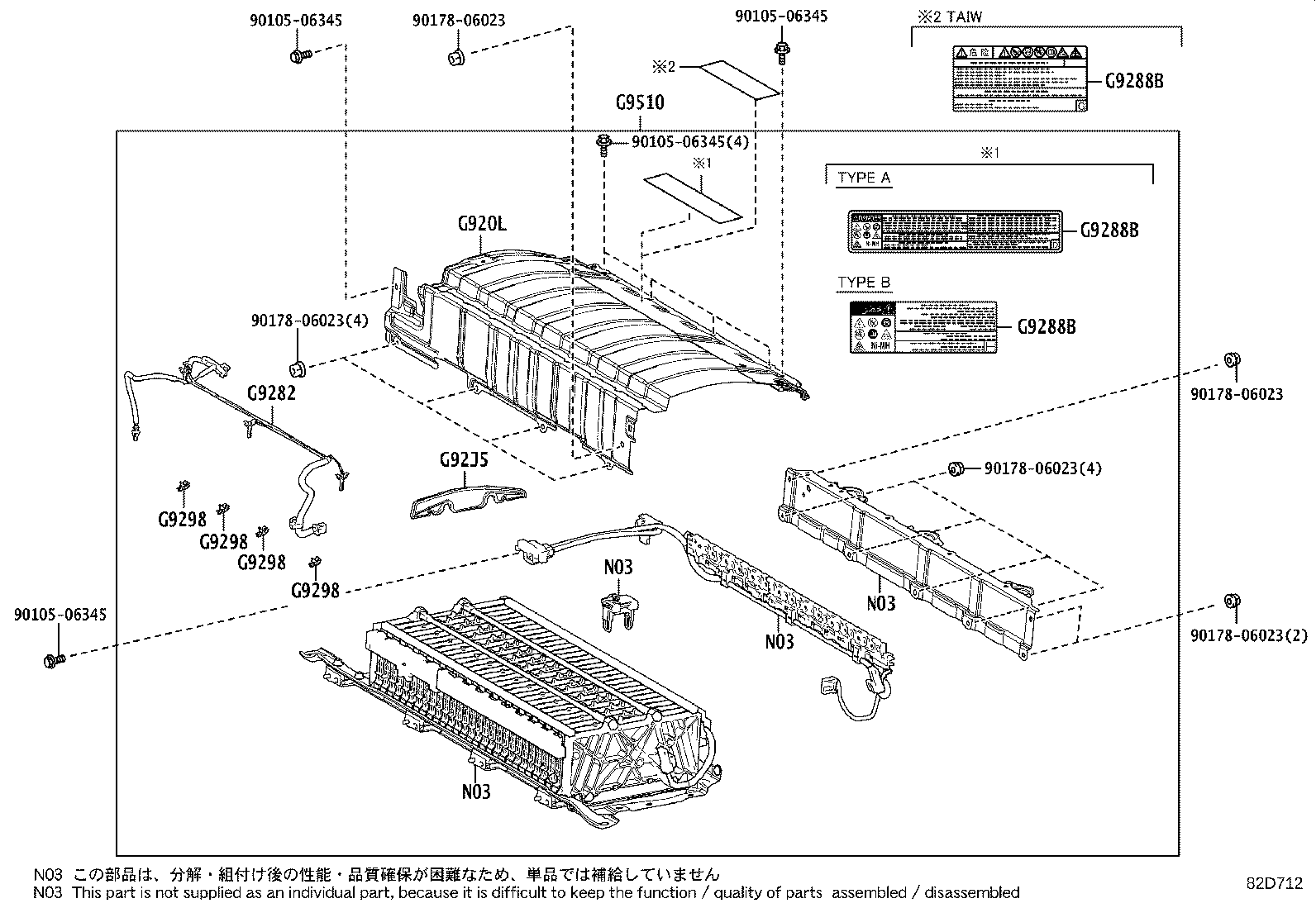

ILLUST NO. 4 OF 4(2007- )ZVG10

Click highlighted areas on diagram

HV BATTERY

diagram 9010506345 9010506345 9010506345 9010506345 9017806023 9017806023 9017806023 9017806023 9017806023 G920L G9282 G9288B G9288B G9288B G9298 G9298 G9298 G9298 G92J5 G9510
Part # Description Qty Price
G9282 - THERMISTOR, HYBRID BATTERY
G9282-47050

ZVG10

 1
G9288B - LABEL, BATTERY CAUTION
G9288-48040

ZVG10..BZP,THP

TYPE A:REFER ILLUST.

 1
G9288B - LABEL, BATTERY CAUTION
G9288-48040

ZVG10..BZP,THP

TYPE A:REFER ILLUST.

 1
G9288B - LABEL, BATTERY CAUTION
G9288-48040

ZVG10..BZP,THP

TYPE A:REFER ILLUST.

 1
G9298 - CLAMP, HV BATTERY
G928E-47010

ZVG10

 4
G9298 - CLAMP, HV BATTERY
G928E-47010

ZVG10

 4
G9298 - CLAMP, HV BATTERY
G928E-47010

ZVG10

 4
G9298 - CLAMP, HV BATTERY
G928E-47010

ZVG10

 4
Common parts
90105-06345
90178-06023
