ZVG10L-GHXGB (2021)
Toyota Corolla Cross
(2007- )

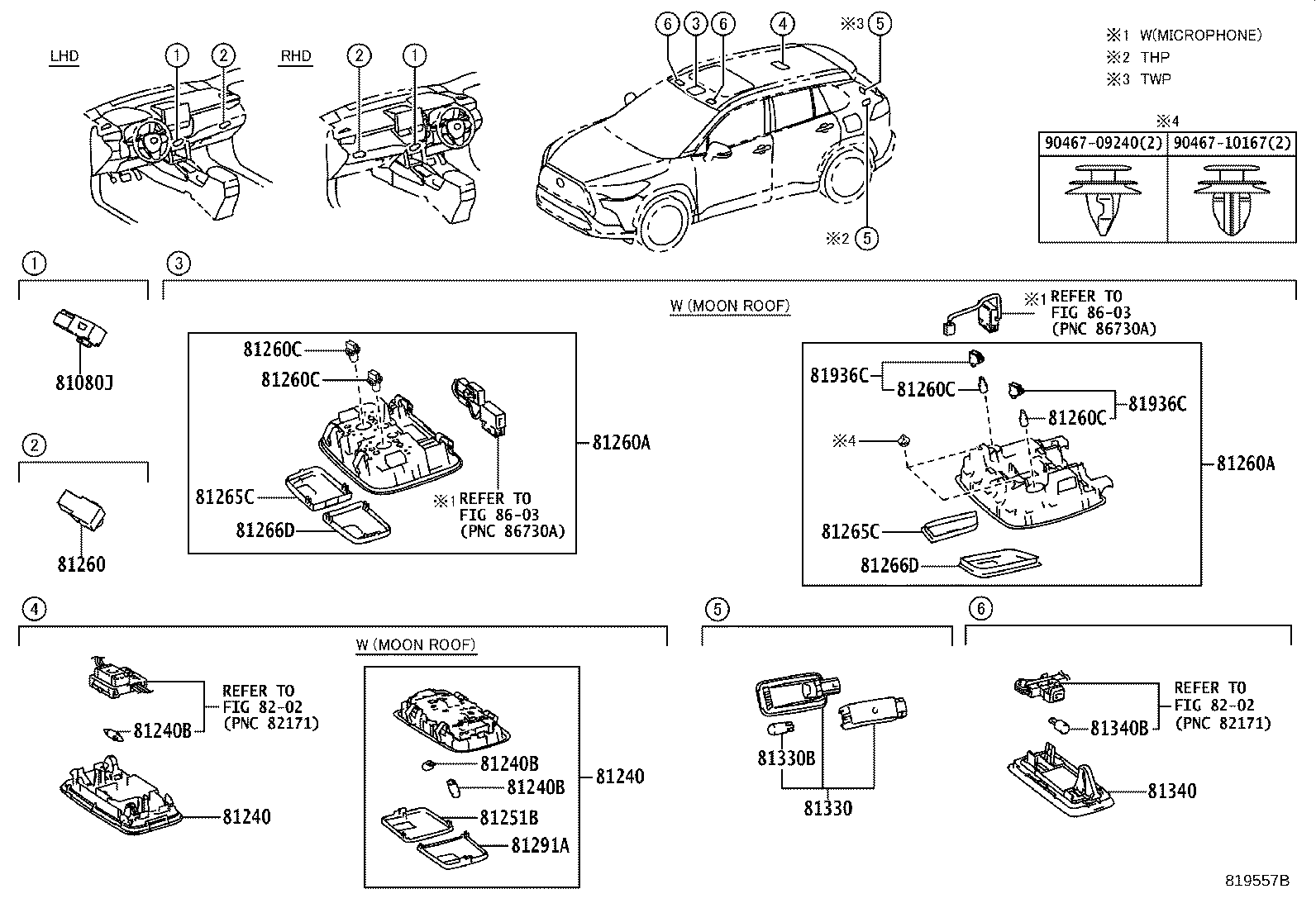

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-33280 |
ZVG10..THP..G;ZSG10,ZVG10..E |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-12100C0 |
ZVG10..E..AGT;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 81250-05030C1 |
MXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 81240-42020C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-12100C0 |
ZVG10..E..AGT;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 81250-05030C1 |
MXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 81240-42020C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11062 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) 12V 8W |
2 | ||
| 90981-14011 |
MXGA10..E..(BZ,GEN);ZSG10..(E,J,N)..(GCC,MA);ZVG10..AGT,IDN,MA,PH,TAIW;ZVG10..(G,N)..(BZ,GCC,GEN,TH);MXGA10,ZSG10..(G,J,M,N)..(AGT,BZ,GEN,MA,PH,TAIW,TH,VN) 12V 8W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11062 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) 12V 8W |
2 | ||
| 90981-14011 |
MXGA10..E..(BZ,GEN);ZSG10..(E,J,N)..(GCC,MA);ZVG10..AGT,IDN,MA,PH,TAIW;ZVG10..(G,N)..(BZ,GCC,GEN,TH);MXGA10,ZSG10..(G,J,M,N)..(AGT,BZ,GEN,MA,PH,TAIW,TH,VN) 12V 8W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11062 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) 12V 8W |
2 | ||
| 90981-14011 |
MXGA10..E..(BZ,GEN);ZSG10..(E,J,N)..(GCC,MA);ZVG10..AGT,IDN,MA,PH,TAIW;ZVG10..(G,N)..(BZ,GCC,GEN,TH);MXGA10,ZSG10..(G,J,M,N)..(AGT,BZ,GEN,MA,PH,TAIW,TH,VN) 12V 8W |
1 | ||
| 81251B - LENS, REAR ROOM LAMP, RH | ||||
| 81251-05030 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81208-12220C0 |
MXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 81260-0D130C1 |
MXGA10..E..GEN;ZVG10..BZP..G..GEN AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER,BLACK,TRIM0#,2# |
1 | ||
| 81260-0D230C1 |
ZVG10..E..AGT;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 81260-16100C0 |
ZVG10..BZP..E..GEN AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER,BLACK,TRIM0#,2# |
1 | ||
| 81260-0D080C1 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81208-12220C0 |
MXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 81260-0D130C1 |
MXGA10..E..GEN;ZVG10..BZP..G..GEN AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER,BLACK,TRIM0#,2# |
1 | ||
| 81260-0D230C1 |
ZVG10..E..AGT;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN) BLACK,TRIM0#,2# |
1 | ||
| 81260-16100C0 |
ZVG10..BZP..E..GEN AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER,BLACK,TRIM0#,2# |
1 | ||
| 81260-0D080C1 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) 12V 5W |
2 | ||
| 90981-11067 |
ZVG10..AGT;MXGA10..G,N;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN) 12V 5W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) 12V 5W |
2 | ||
| 90981-11067 |
ZVG10..AGT;MXGA10..G,N;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN) 12V 5W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) 12V 5W |
2 | ||
| 90981-11067 |
ZVG10..AGT;MXGA10..G,N;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN) 12V 5W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) 12V 5W |
2 | ||
| 90981-11067 |
ZVG10..AGT;MXGA10..G,N;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN) 12V 5W |
2 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-12380 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) |
1 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-12380 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81266-12380 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81266-12380 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) |
1 | ||
| 81291A - LENS, REAR ROOM LAMP, LH | ||||
| 81291-05030 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81250-30210 |
MXGA10,ZSG10,ZVG10..BZP,THP |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-12050 |
MXGA10,ZSG10,ZVG10..BZP,THP 12V 5W |
1 | ||
| 81936C - BULB ASSY | ||||
| 81936-12160 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) |
2 | ||
| 81936C - BULB ASSY | ||||
| 81936-12160 |
ZSG10..G..GCC;MXGA10..E..AGT;ZSG10,ZVG10..E..(BZ,GCC,GEN,IDN,TH,VN) |
2 | ||
| Common parts | ||||
| 90467-09240 | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8603 | ||||
