ZVG10L-GHXGB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(2007- )ZVG10

Click highlighted areas on diagram

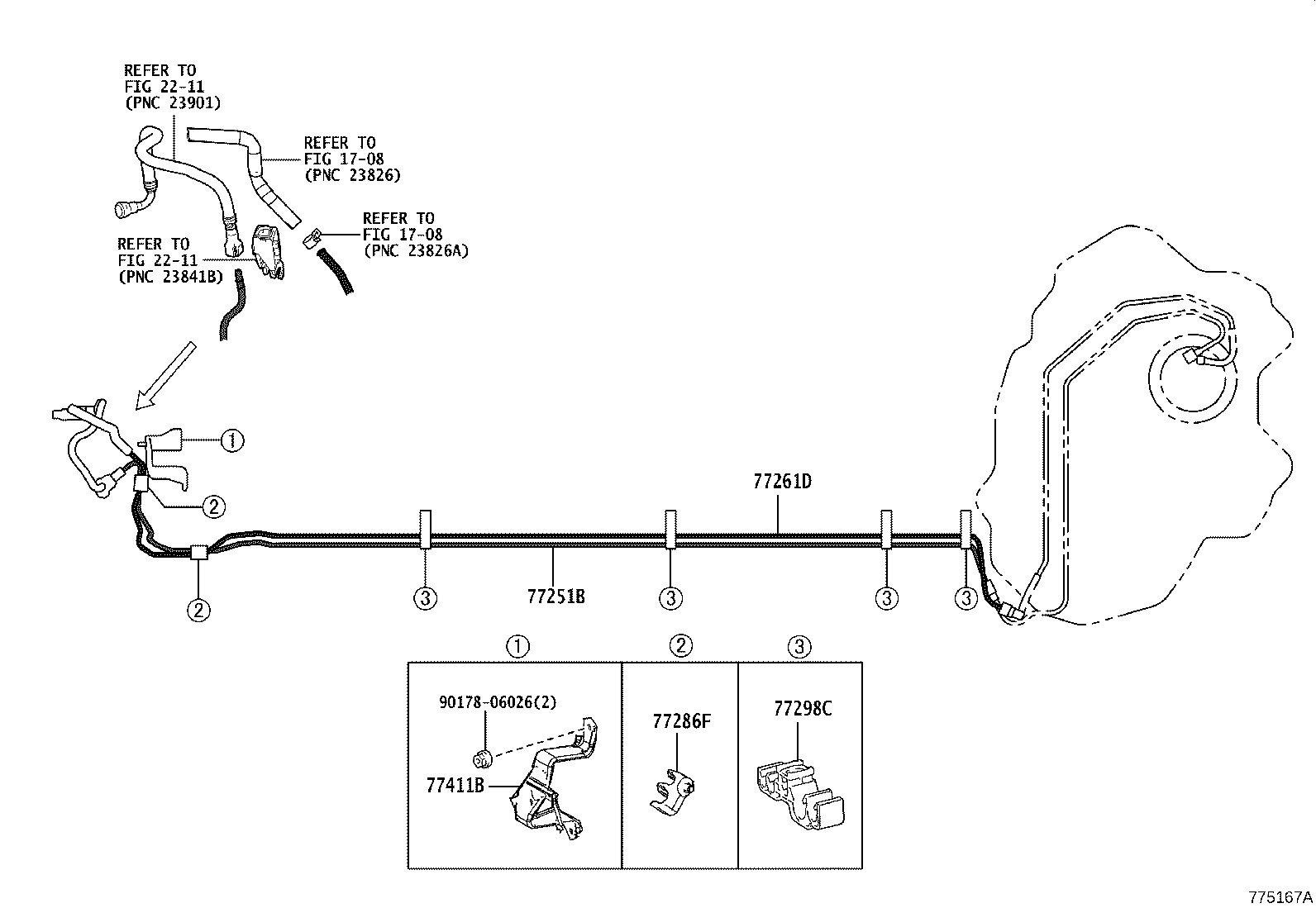

FUEL TUBE

diagram 1708 1708 2211 2211 77251B 77261D 77286F 77298C 77411B 9017806026
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-0A100

ZVG10..BZP

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-0A100

ZVG10..BZP

 1
77286F - CLAMP, FUEL TUBE, NO.2
77286-78040

ZVG10

 2
77298C - CLAMP, FUEL TUBE, NO.4
77298-10050

ZVG10

 4
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-02130

ZVG10..BZP

 1
Common parts
90178-06026
Linked diagrams
1708
2211

ILLUST NO. 3 OF 3(2007- )LHD

Click highlighted areas on diagram

FUEL LID OPENER

diagram 64648A 77035 77306 77350 77350B 77360A 77377 827113F440 9015960602 90159T0036 9026906017
Part # Description Qty Price
64648A - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-0D020

MXGA10,ZSG10,ZVG10..BZP,THP

(L)

 1
64648-12020

MXGA10,ZSG10,ZVG10..BZP,THP

(J)

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0A060

MXGA10,ZVG10..BZP

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0A020

MXGA10,ZSG10,ZVG10..LHD..(BZP,THP)

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-K1010

MXGA10,ZSG10,ZVG10

 1
77350B - CUSHION(FOR FUEL FILLER OPENING LID)
90541-06069

MXGA10,ZSG10,ZVG10

 2
77360A - SPRING ASSY, FUEL FILLER OPENING LID
77360-30080

MXGA10,ZSG10,ZVG10

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12100

MXGA10,ZVG10..BZP

 1
Common parts
82711-3F440
90159-60602
90159-T0036
90269-06017
