ZVG10L-GHXGB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

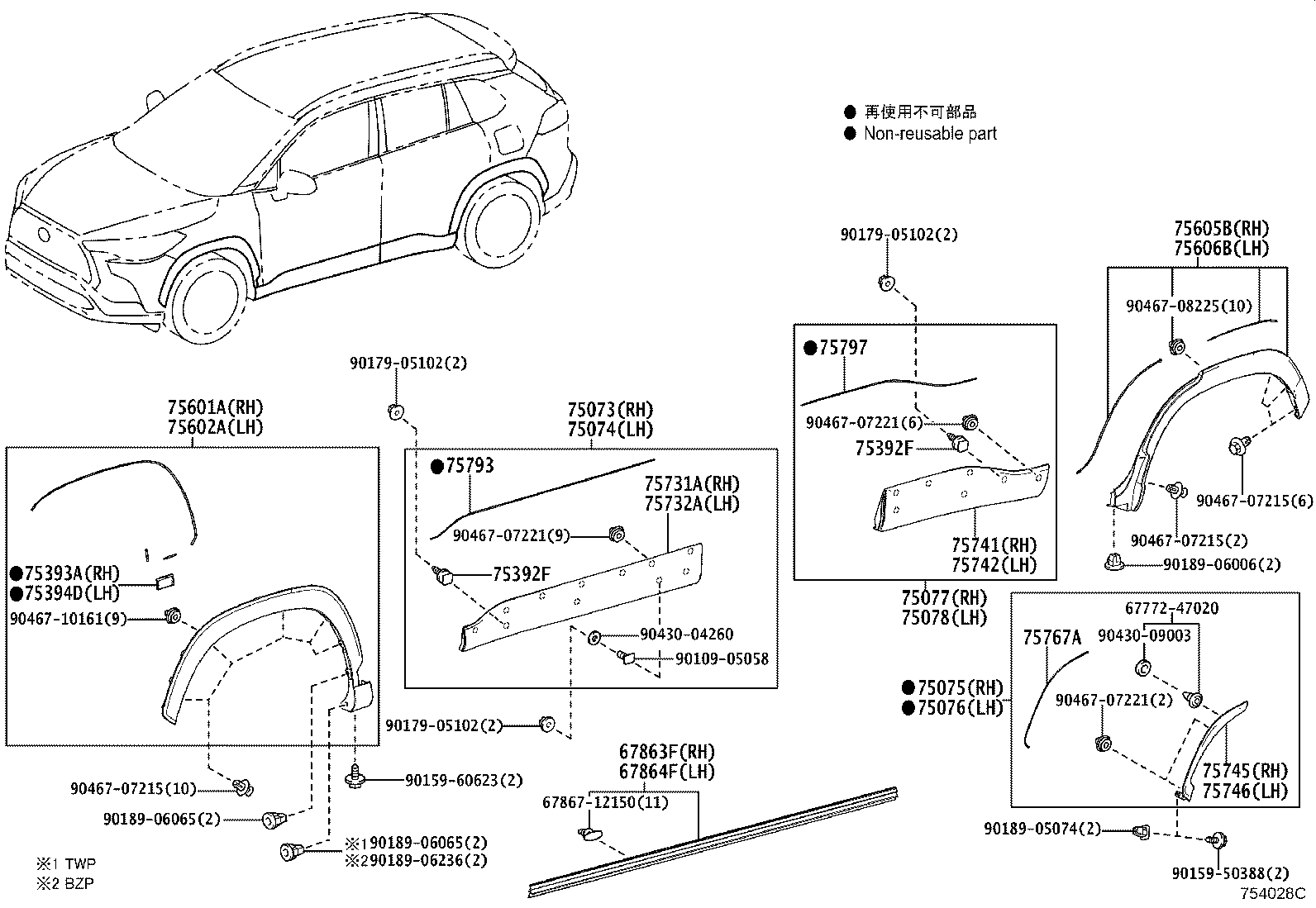

ILLUST NO. 2 OF 2(2007- )BZP,TWP

Click highlighted areas on diagram

diagram 6777247020 67863F 67864F 6786712150 75073 75074 75075 75076 75077 75078 75392F 75392F 75393A 75394D 75601A 75602A 75605B 75606B 75731A 75732A 75741 75742 75745 75746 75767A 75793 75797 9010905058 9015950388 9015960623 9017905102 9017905102 9017905102 9018905074 9018906006 9018906065 9018906065 9018906236 9043004260 9043009003 9046707215 9046707215 9046707215 9046707221 9046707221 9046707221 9046708225 9046710161
Part # Description Qty Price
67863F - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-0A030

MXGA10,ZVG10..BZP

 1
67864F - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67863-0A030

MXGA10,ZVG10..BZP

 1
75073 - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER RH
75073-YY030

ZSG10,ZVG10..L,M

 1
75073-0A030

MXGA10,ZVG10..BZP

 1
75074 - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER LH
75074-0A030

MXGA10,ZVG10..BZP

 1
75074-YY030

ZSG10,ZVG10..L,M

 1
75075 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75075-0A030

MXGA10,ZVG10..BZP

 1
75076 - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75076-0A030

MXGA10,ZVG10..BZP

 1
75077 - MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH
75077-0A030

MXGA10,ZVG10..BZP

NO PAINT REQ.

 1
75077-YY030

ZSG10,ZVG10..L,M

NO PAINT REQ.

 1
75078 - MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH
75078-0A030

MXGA10,ZVG10..BZP

NO PAINT REQ.

 1
75078-YY030

ZSG10,ZVG10..L,M

NO PAINT REQ.

 1
75392F - RETAINER, OUTSIDE MOULDING
75392-33020

MXGA10,ZSG10,ZVG10

 4
75392F - RETAINER, OUTSIDE MOULDING
75392-33020

MXGA10,ZSG10,ZVG10

 4
75393A - RETAINER, OUTSIDE MOULDING, NO.2 RH
75393-0A030

MXGA10,ZVG10..BZP

 1
75394D - RETAINER, OUTSIDE MOULDING, NO.2 LH
75394-0A030

MXGA10,ZVG10..BZP

 1
75601A - MOULDING SUB-ASSY, FRONT FENDER, RH
75601-0A030

MXGA10,ZVG10..BZP

NO PAINT REQ.

 1
75602A - MOULDING SUB-ASSY, FRONT FENDER, LH
75602-0A030

MXGA10,ZVG10..BZP

NO PAINT REQ.

 1
75605B - MOULDING SUB-ASSY, QUARTER OUTSIDE, RH
75605-0A030

MXGA10,ZVG10..BZP

NO PAINT REQ.

 1
75606B - MOULDING SUB-ASSY, QUATER OUTSIDE, LH
75606-0A030

MXGA10,ZVG10..BZP

NO PAINT REQ.

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-0A070

MXGA10,ZVG10..BZP

NO PAINT REQ.

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-0A070

MXGA10,ZVG10..BZP

NO PAINT REQ.

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-0A070

MXGA10,ZVG10..BZP

NO PAINT REQ.

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-0A070

MXGA10,ZVG10..BZP

NO PAINT REQ.

 1
75745 - MOULDING, REAR DOOR OUTSIDE, LOWER RH
75745-0A030

MXGA10,ZVG10..BZP

 1
75746 - MOULDING, REAR DOOR OUTSIDE, LOWER LH
75746-0A030

MXGA10,ZVG10..BZP

 1
75767A - PAD, REAR DOOR MOULDING, NO.1
75767-0A030

MXGA10,ZVG10..BZP

 2
75793 - PAD, FRONT DOOR OUTSIDE MOULDING, UPPER
75793-0A030

MXGA10,ZVG10..BZP

 2
75797 - PAD, REAR DOOR OUTSIDE MOULDING, UPPER
75797-0A030

MXGA10,ZVG10..BZP

 2
Common parts
67772-47020
67867-12150
90109-05058
90159-50388
90159-60623
90179-05102
90189-05074
90189-06006
90189-06065
90189-06236
90430-04260
90430-09003
90467-07215
90467-07221
90467-08225
90467-10161
