ZVG10L-GHXGB (2021)
Toyota Corolla Cross
Production
Mar 2021
-
Sep 9999
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

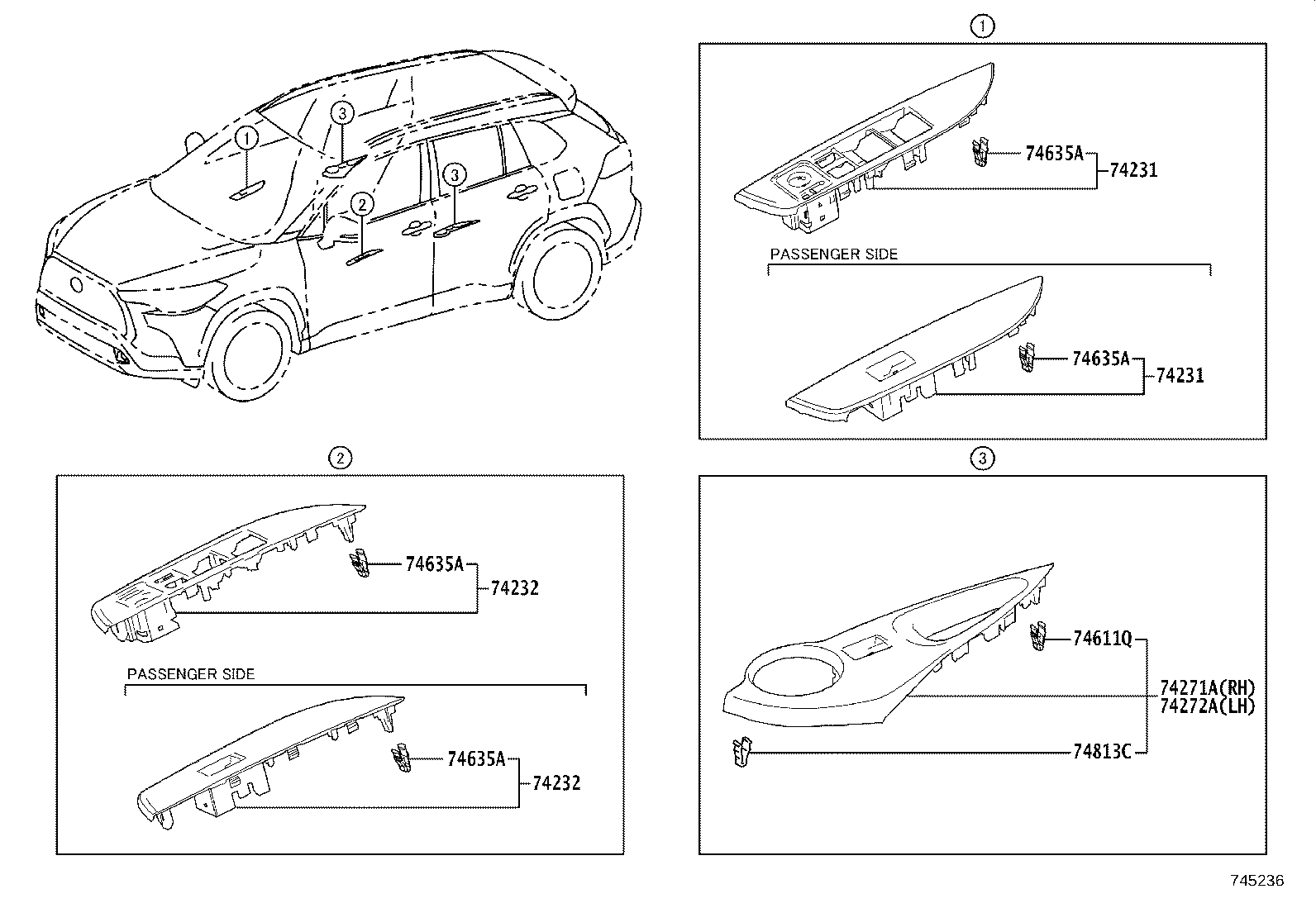

ILLUST NO. 1 OF 2(2007- )
Click highlighted areas on diagram
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02J20 |
MXGA10,ZVG10..BZP |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02J20 |
MXGA10,ZVG10..BZP |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-02J80 |
MXGA10,ZVG10..BZP |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-02J80 |
MXGA10,ZVG10..BZP |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 74611Q - CLIP | ||||
| 90467-10203 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 74635A - CLIP | ||||
| 90467-10203 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 74635A - CLIP | ||||
| 90467-10203 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 74635A - CLIP | ||||
| 90467-10203 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 74635A - CLIP | ||||
| 90467-10203 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 74813C - CLIP | ||||
| 90467-12080 |
MXGA10,ZSG10,ZVG10 |
2 | ||
