ZVG10L-GHXGB (2021)

Toyota Corolla Cross

Production Mar 2021 - Sep 9999
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

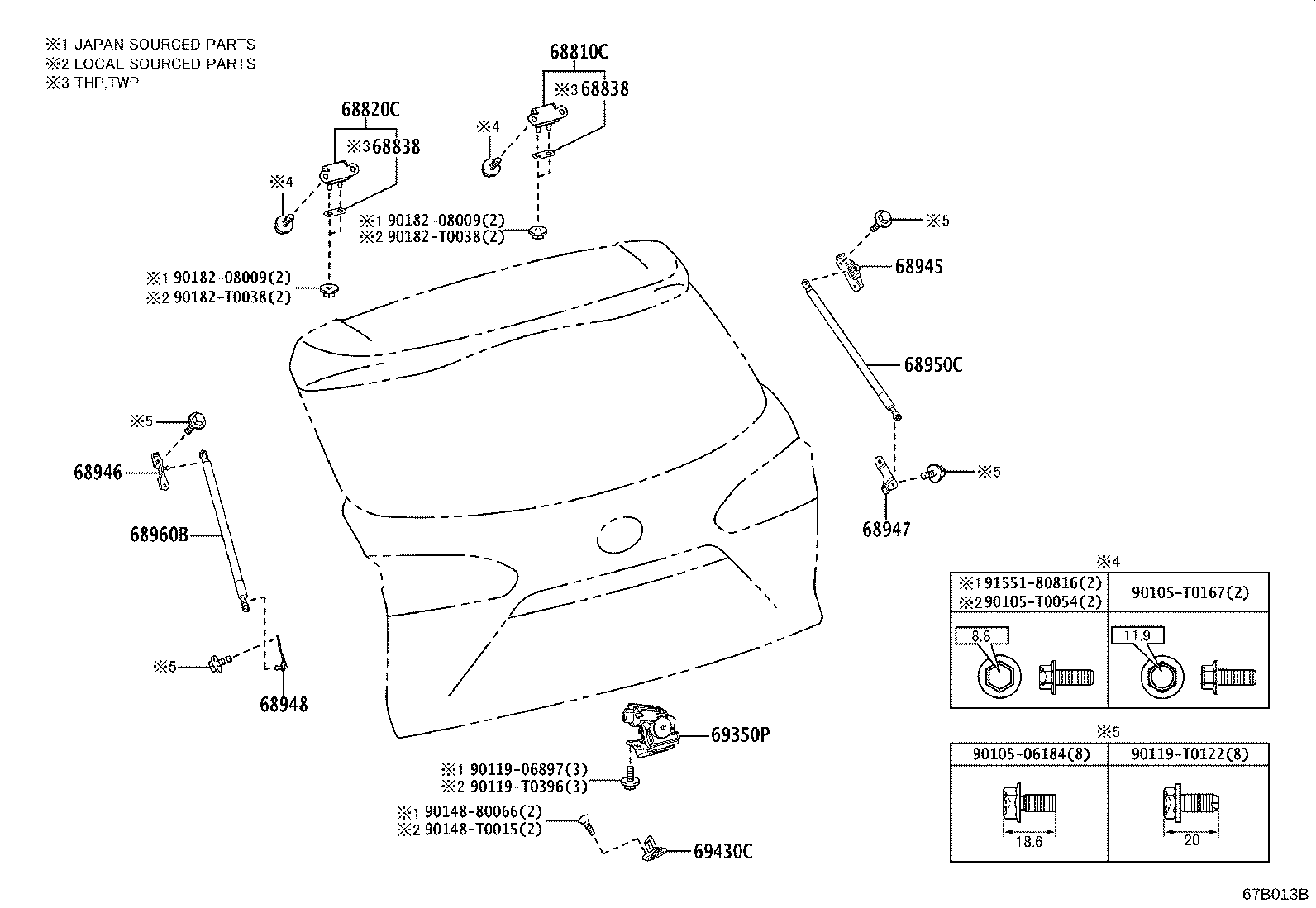

ILLUST NO. 1 OF 2(2007- )

Click highlighted areas on diagram

W/O(POWER BACK DOOR)

diagram 68810C 68820C 68838 68838 68945 68946 68947 68948 68950C 68960B 69350P 69430C 9010506184 90105T0054 90105T0167 9011906897 90119T0122 90119T0396 9014880066 90148T0015 9018208009 9018208009 90182T0038 90182T0038 9155180816
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-0A080

MXGA10,ZVG10..BZP

 1
68820C - HINGE ASSY, BACK DOOR, LH
68810-0A080

MXGA10,ZVG10..BZP

 1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-0A050

MXGA10,ZVG10..BZP

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-0A050

MXGA10,ZVG10..BZP

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-0A050

MXGA10,ZVG10..BZP

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-0A050

MXGA10,ZVG10..BZP

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-0A030

MXGA10,ZVG10..BZP

 1
68960B - STAY ASSY, BACK DOOR, LH
68960-0A030

MXGA10,ZVG10..BZP

 1
Common parts
90105-06184
90105-T0054
90105-T0167
90119-06897
90119-T0122
90119-T0396
90148-80066
90148-T0015
90182-08009
90182-T0038
91551-80816

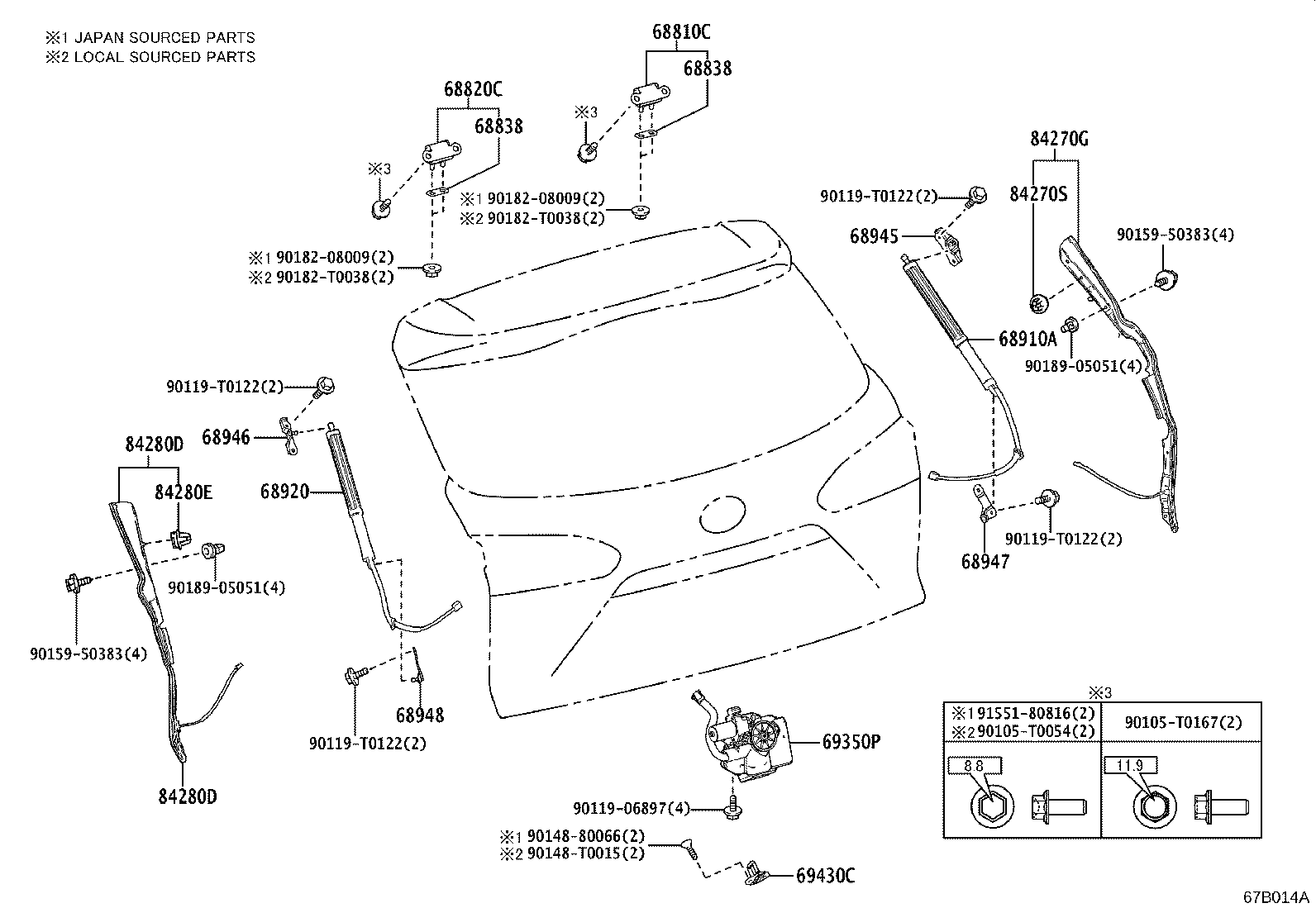

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

W(POWER BACK DOOR)

diagram 68810C 68820C 68838 68838 68910A 68920 68945 68946 68947 68948 69350P 69430C 84270G 84270S 84280D 84280D 84280E 90105T0054 90105T0167 9011906897 90119T0122 90119T0122 90119T0122 90119T0122 9014880066 90148T0015 9015950383 9015950383 9018208009 9018208009 90182T0038 90182T0038 9018905051 9018905051 9155180816
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-0A080

MXGA10,ZVG10..BZP

 1
68820C - HINGE ASSY, BACK DOOR, LH
68810-0A080

MXGA10,ZVG10..BZP

 1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-0A050

MXGA10,ZVG10..BZP

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-0A050

MXGA10,ZVG10..BZP

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-0A050

MXGA10,ZVG10..BZP

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-0A050

MXGA10,ZVG10..BZP

 1
Common parts
90105-T0054
90105-T0167
90119-06897
90119-T0122
90148-80066
90148-T0015
90159-50383
90182-08009
90182-T0038
90189-05051
91551-80816
