ZVG10L-GHXGB (2021)
Toyota Corolla Cross
(2007- )

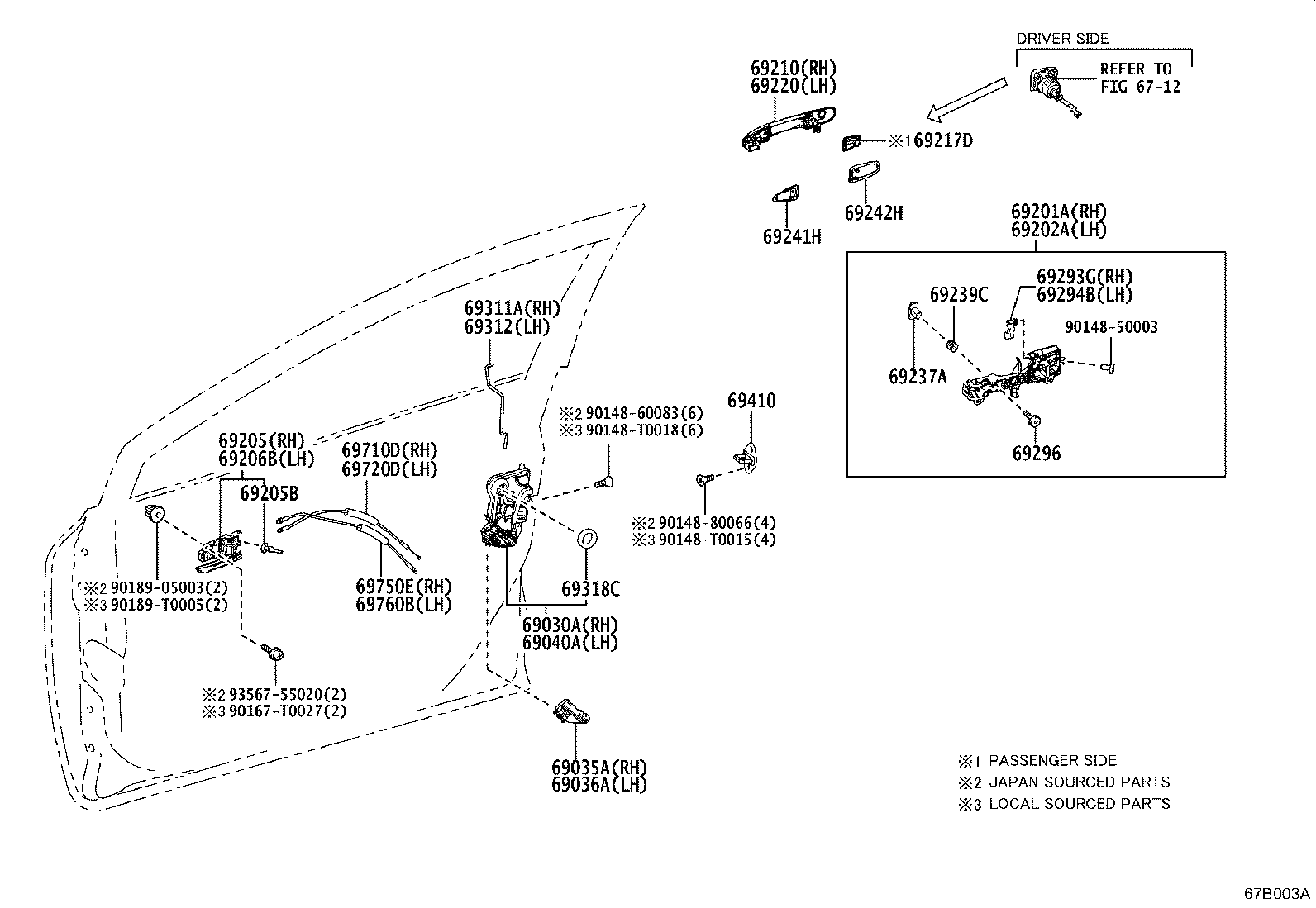

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-02530 |
MXGA10,ZVG10..BZP |
1 | ||
| 69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH | ||||
| 69035-02010 |
MXGA10,ZVG10..BZP |
1 | ||
| 69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH | ||||
| 69036-02010 |
MXGA10,ZVG10..BZP |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-02510 |
MXGA10,ZVG10..BZP |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-02330 |
MXGA10,ZVG10..BZP |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-02270 |
MXGA10,ZVG10..BZP |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-02420C0 |
MXGA10,ZVG10..BZP BLACK,TRIM2# |
1 | ||
| 69205-02420A0 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) FROMAGE,TRIM0# |
1 | ||
| 69205-02390C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-02490C0 |
ZSG10,ZVG10..L,M BLACK,TRIM2# |
1 | ||
| 69206-02400A0 |
MXGA10,ZVG10..BZP..E;ZVG10..BZP..G..(BZ,GEN) FROMAGE,TRIM0# |
1 | ||
| 69206-02400C0 |
MXGA10,ZVG10..BZP BLACK,TRIM2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-47051D2 |
ZSG10..N..VN;MXGA10..E..BZ;ZSG10..LHD..(GEN,PH);ZVG10..LHD..(AGT,BZ,GEN,VN) RED M.M.,3R3 |
1 | ||
| 69210-47051J8 |
MXGA10..E..BZ;ZSG10,ZVG10..LHD..(BZP,THP) NEBULA BLUE ME.,8X2 |
1 | ||
| 69210-47051A2 |
ZSG10..N..VN;MXGA10..E..BZ;ZSG10..LHD..(GEN,PH);ZVG10..LHD..(AGT,BZ,GEN,VN) PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 69210-47051A0 |
ZVG10..BZP;MXGA10..E..BZ SUPER WHITE 2,040 |
1 | ||
| 69210-47051B1 |
ZVG10..BZP;MXGA10..E..BZ GRAY ME.,1G3 |
1 | ||
| 69210-47051C7 |
ZVG10..BZP;MXGA10..E..BZ BLACK MC.,215 |
1 | ||
| 69210-47051P1 |
ZVG10..BZP;MXGA10..E..BZ SILVER ME.,1H6 |
1 | ||
| 69210-0A050B1 |
ZSG10,ZVG10..L,M GRAY ME.,2MB |
1 | ||
| 69210-0A050D0 |
ZSG10,ZVG10..L,M RED M.M.,2NU |
1 | ||
| 69210-0A050B0 |
ZSG10,ZVG10..L,M SILVER ME.,2KS |
1 | ||
| 69210-0A050A0 |
ZSG10,ZVG10..L,M SUPER WHITE 2,2NR |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-02590 |
MXGA10,ZVG10..BZP |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-47041D2 |
ZSG10..N..VN;MXGA10..E..BZ;ZSG10..LHD..(GEN,PH);ZVG10..LHD..(AGT,BZ,GEN,VN) RED M.M.,3R3 |
1 | ||
| 69210-47041A2 |
ZSG10..N..VN;MXGA10..E..BZ;ZSG10..LHD..(GEN,PH);ZVG10..LHD..(AGT,BZ,GEN,VN) PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 69210-47041J8 |
MXGA10..E..BZ;ZSG10,ZVG10..LHD..(BZP,THP) NEBULA BLUE ME.,8X2 |
1 | ||
| 69210-47041C7 |
ZVG10..BZP;MXGA10..E..BZ BLACK MC.,215 |
1 | ||
| 69210-47041P1 |
ZVG10..BZP;MXGA10..E..BZ SILVER ME.,1H6 |
1 | ||
| 69210-47041A0 |
ZVG10..BZP;MXGA10..E..BZ SUPER WHITE 2,040 |
1 | ||
| 69210-02280B0 |
ZSG10,ZVG10..L,M SILVER ME.,2KS |
1 | ||
| 69210-47041B1 |
ZVG10..BZP;MXGA10..E..BZ GRAY ME.,1G3 |
1 | ||
| 69210-02280B1 |
ZSG10,ZVG10..L,M GRAY ME.,2MB |
1 | ||
| 69210-02280D1 |
ZSG10,ZVG10..L,M RED M.M.,2NU |
1 | ||
| 69210-02280A0 |
ZSG10,ZVG10..L,M SUPER WHITE 2,2NR |
1 | ||
| 69237A - NUT, FRONT DOOR HANDLE | ||||
| 69237-0K070 |
MXGA10,ZVG10..BZP |
2 | ||
| 69239C - BUSH, FRONT DOOR HANDLE | ||||
| 69239-47010 |
MXGA10,ZVG10..BZP |
2 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-02260 |
MXGA10,ZVG10..BZP |
2 | ||
| 69242H - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-02250 |
MXGA10,ZVG10..BZP |
2 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
MXGA10,ZVG10..BZP |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
MXGA10,ZVG10..BZP |
1 | ||
| 69296 - SCREW, DOOR INSIDE HANDLE | ||||
| 69296-30010 |
MXGA10,ZVG10..BZP |
2 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-0A040 |
MXGA10,ZVG10..BZP |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-0A040 |
MXGA10,ZVG10..BZP |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
MXGA10,ZSG10,ZVG10 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-02090 |
MXGA10,ZVG10..BZP |
2 | ||
| 69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE | ||||
| 69710-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE | ||||
| 69710-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK | ||||
| 69750-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| 69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK | ||||
| 69750-0A030 |
MXGA10,ZVG10..BZP |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
| 90148-T0015 | ||||
| 90148-T0018 | ||||
| 90167-T0027 | ||||
| 90189-05003 | ||||
| 90189-T0005 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 6712 | ||||
